MEP - ARCH visual

View Templates

View Templates help to increase accuracy and reliability of MEP design in BIM model.
Enables to alter the appearance of the 3D views between architecture and MEP disciplines.

1. MEP only view displays the MEP elements only.

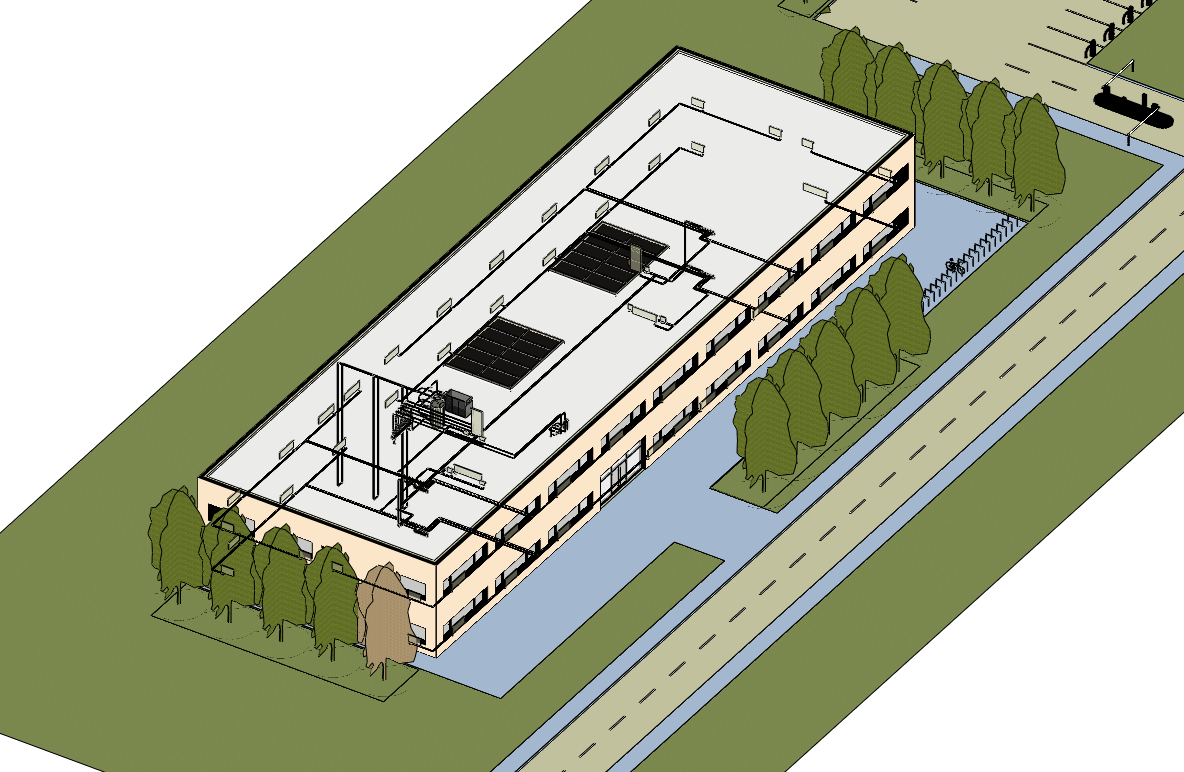

2. MEP primary view shows the building in the background and MEP elements clearly in the foreground.
3. Architecture primary view is exactly the opposite, shows the building elements in the foreground and the MEP elements in the background.
4. Architecture only view shows the building elements only.

5. Reset view displays all.

The command allows you to modify the properties of a 3D-View, or a Section View to view the MEP model and the architectural one together.

For example, it is possible to display the MEP elements in the primary mode, which will thus appear superimposed, or to display only the MEP model.
It is possible to combine this option with the typical options for displaying the 3D-View.

Mode	View
MEP only
MEP primary
Arch only
Arch primary
