The command creates straight bars along slab hole edges.
Defining properties

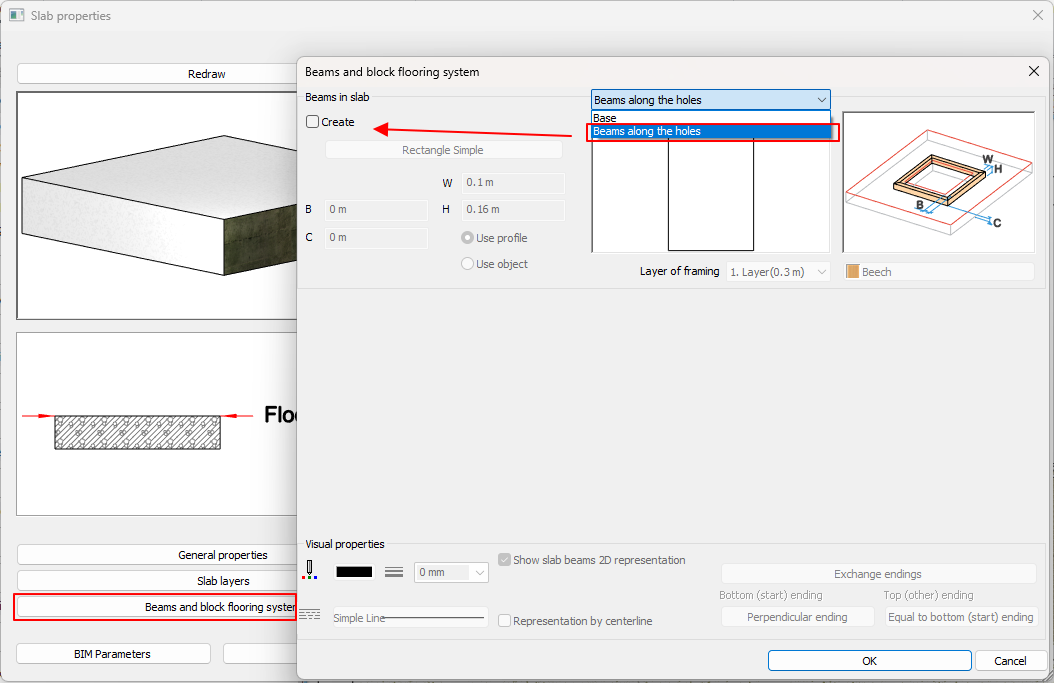

Use the following tab in the Beams and Block Flooring System for Slabs dialog box to define the properties of the bars created by the component:
| Name | Content |
| Type | Shape of the bar (by default Rectangle Simple) |
| W | Bar dimension - width |
| H | Bar dimensions - height |
| B | Profile centerline distance from hole edges in horizontal |
| C | Profile centerline distance from hole edges in horizontal |
| Layer of framing | The bottom of the bar fits the selected layer |
| Material | Bar texture or color material |

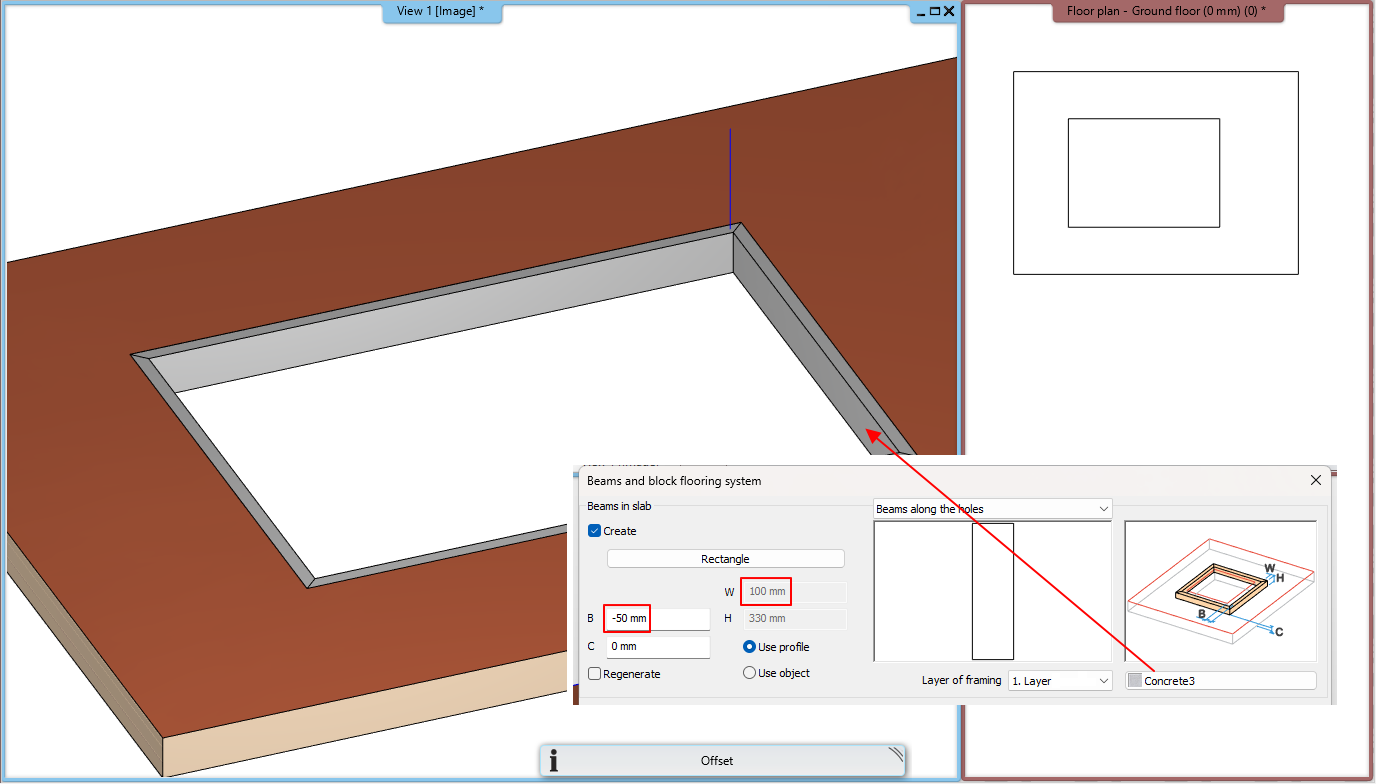

Example:
If we want the bars to fit on the edge of the hole, the value of B should be half the width with a negative sign.
