3D dynamic section

3D dynamic section enables to to view a cross section of surfaces by dragging a plane through the model in real time.

Note: Unlike sections created on the floor plan, a dynamic section shows a temporary state of the model and returns to the original model geometry upon closing the command.

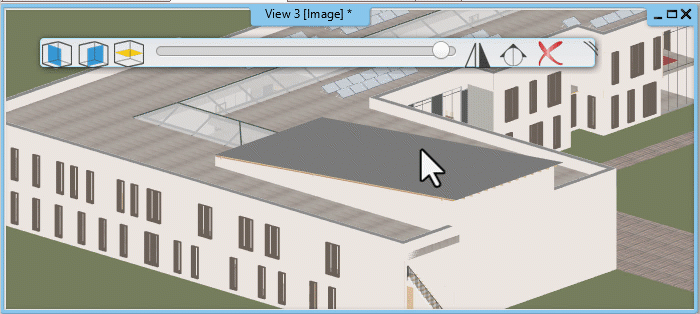

Click on the commands to edit the dynamic 3D section view:

- Move XZ, YZ, XY: With this commands you can shift the section plane to a direction defined by a normal vector perpendicular to the section plane.

- Flip: This command inverts the section.

- Create section: With the help of this command you can create an architectural section.

- Close: This command closes the 3D dynamic section tool. The section plane disappears and you can see the original model geometry again.
