This command associates ARCHLine.XP XML output data to customized layout elements in an RTF format template.
It provides advanced technique for creating complex company standard report formats.

If you are using Microsoft Word to create RTF templates, see Creating RTF Templates Using the Template Builder for Word before reading this chapter.
The samples in RTFTemplates folder provided in the ARCHLine.XP installation can orient you to the process of creating your own templates in Microsoft Word. It is not required to have Microsoft Word to create RTF templates.

https://support.office.com/en-us/article/field-codes-mergefield-field-7a6d24a1-68a6-4b05-8359-1dc087daf4e6?ui=en-US&rs=en-US&ad=US

Rich Text Format (RTF) is a file format used by common word processing applications, such as Microsoft Word. When you save a document, RTF is a saving option.

When you design the customized template layout, you must associate the ARCHLine.XP XML output data to the RTF MergeField field codes.
Creating an RTF template means to add MergeField field codes to the RTF document. MergeField displays the name of a data field within the "chevron" merge characters — for example, «BuildingName».

Location: Documentation > Quantity take-ff > RTF list

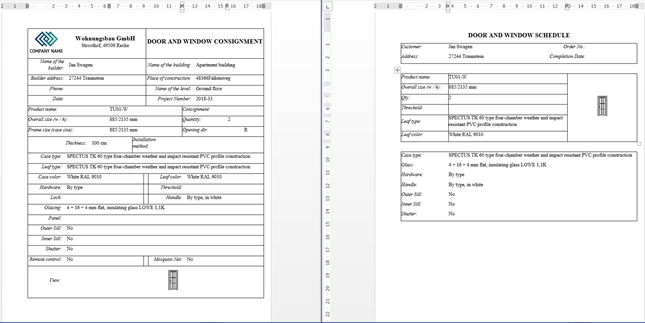

Example for Template:

Example for output reports:

Project Properties:
Date
BeginDate
EndDate
Status
BuildingType
BuildingName

ProjectNumber

GrossArea
Area_available_for_Building
Maximum_height_of_the_Building

Region
Country
Town
Location
Location.Name
Location.Description
Location.Longitude
Location.Latitude
Location.Elevation
Location.ZipcodeOrPostalCode
Office_area
Height_above_the_sea

ArchitectName
ArchitectCompanyName
ArchitectAddress

OrganizationName
ClientName
ClientAddress

Beam properties:

StyleName;
Elevation;
Volume;
Name;
RealLength;
EndType;
isRoofBeam;
Length;
HasInsulation;
InsulationThickness;
InsulationMaterial;

Door/Window properties:
StyleName;
OpeningFromRight;
DistanceFromWallEndPt;
Height;
ParapetHeight;
FrameWidth;
FrameThick;
FrameDistance;
FrameDistance_fromOppositeSide;
Niche;
ExtSill;
IntSill;
ExtSillHeight;
IntSillHeight;
ExtSillWidth;
IntSillWidth;
PositionFromEnd;
PositionByAxis;
ExtIntDiff;
Area;
Compass;
Name;
ReferenceName;

VisibleName;
ExtMaterial;
IntMaterial;
InnerMaterial;
MacroName;
Remark;
isShoulderOnTop;
isShoulderAround;
isRoofWindow;
ConsiderForWofivFactor;
ConsiderForWofiv;
OpeningDir;
OpeningDirection;
BubbleNum;
uValue;
FrameStructureKind;
FrameStructureID;
GlassStructureID;
PanelStructureID;
SunShadeAndDivider;
FrameWidth_Left;
FrameWidth_Right;
FrameWidth_Top;
FrameWidth_Bottom;
Effective_clear_width;
LintelName;
LintelIdentifier;
FrameName;
Outer_SillName;
Inner_SillName;
ShutterName;
LeafName;
ThresholdName;
HardwareName;
Remote_control;
Mosquito_net;
Accessories;
Covering;
Glazing;
Opening_handle;
Leaf_color;
Case_color;
Material_of_receiving_structure;
Installation_method;
Production_size;
Picture1; //Frontal View

NumPrefix;
Numbering;

Wall Properties:

StyleName;
avHeight;
avWidth;
BaseArea;
Direction;
Height;
Length1;
Length2;
Material1;
Material2;
TotalWidth;
Volume;
WallType; //New, Existing, Demolished
InclAngle;
Compass;
Exterior_wall;
GrossSideArea1;
GrossSideArea2;
NetSideArea1;
NetSideArea2;
strIFCName;

Picture1; //Frontal View

Stair Properties:

StyleName;
bLevel;
tLevel;
sHeight;
sWidth;
wlDist;
Nosing;
CoverThick;
StepThick;
WaistSlab;
SuppThickR;
SuppThickL;
SuppWidthR;
SuppWidthL;
SlabThickB;
SlabThickU;
Volume;
Ergonomy;
SumArea;
Material;
BodyMaterial;
SupportMaterial;
TypeName;
WofivRule;
Inclination;

Slab Properties:

StyleName;
Name;
WallCutting;
CutByRoofs;
Elevation;
Thickness;
AverageHeight;
Volume;
GrossVolume;
BottomArea;
TopArea;
TopMaterial;
BottomMaterial;
SideMaterial;
IsSlanted;
SlantAngle;

Space (room) Properties:

StyleName;
SideArea;
ParquetArea;
CeilingArea;
PedestalArea;
PedestalLength;
OpeningsArea;
Area;
IlluminationArea;
OfficialArea;
OfficialVol;
NetWallArea;
WoFlArea;
Ventillation_area;
Perimeter;
RoomHeight;
AreaUnder100;
AreaAbove100;
AreaUnder150;
AreaAbove150;
VolumeUnder150;
VolumeAbove150;
GrossVolume;
DINArea;
Ratio100_200;
RatioAbove200;
AreaAbove190;
AreaAbove275;
AreaFaktor;
DinNorm;
HatchColor;
VolumeSolidCol;
CreationMethod;
NeedHatch;
RoomNumber;
Flags;
UnderCuttingType;
RoomKind;
FlatName;
Zone_names;
RoomName;
NettoRaumInhalt;
OfficialAreaStr;
IllAreaStr;
PerimeterStr;
RoomHeightStr;
RoomNumberStr;
ParquettLevelStr;
SlabLevelStr;
FloorMaterial;
WallMaterial;
CeilingMaterial;
RoomTypeName;
RoomSet;
DINAreaStr;
WoFlAreaStr;
Ventillation_areaStr;
NormIAreaStr;
VolumeStr;
VentilRatioStr;
RatioStr;
BottomSlabThickness;
ZoneZBase;
ZoneBaseHeight;
ZoneVolume;
IsInBasement;
SpaceExtruded; //IFC
ProofFormulaCalculation;
ProofFormulaValues;
