Embedding an arc window (Curtain Wall Tool) in an arc wall.

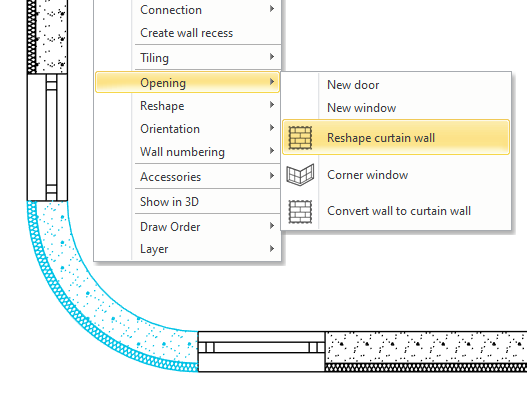

Command location: Building - Curtain Wall - Embed Curtain Wall in a Wall
A curtain wall is embedded in a wall like a window.
The shape of the curtain wall can be drawn in the frontal view of the selected wall.

1. Select the wall where you want to draw the curtain wall.
It is recommended to right-click on the interior wall to start the command.

2. Place the wall view on the floor plan.

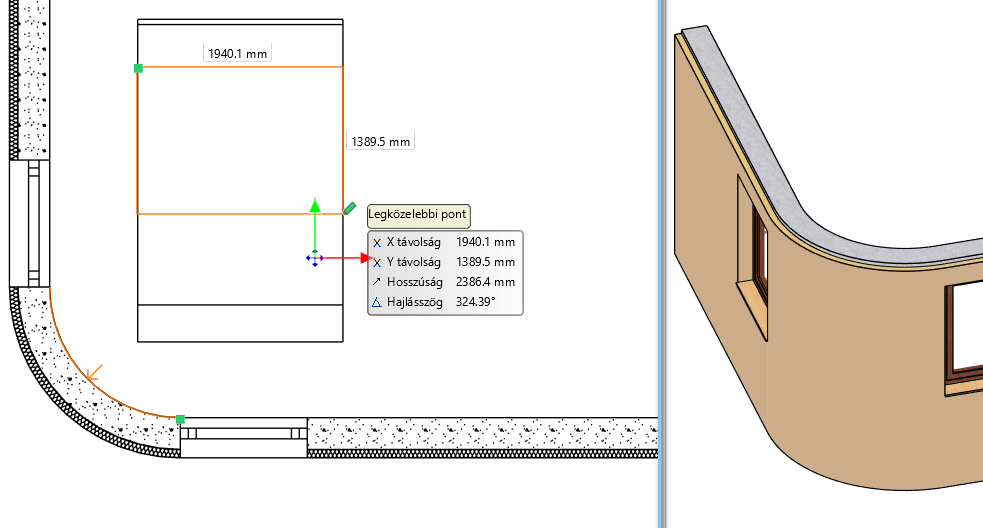

3. Draw the shape of the window by drawing a closed polyline, such as a rectangle.

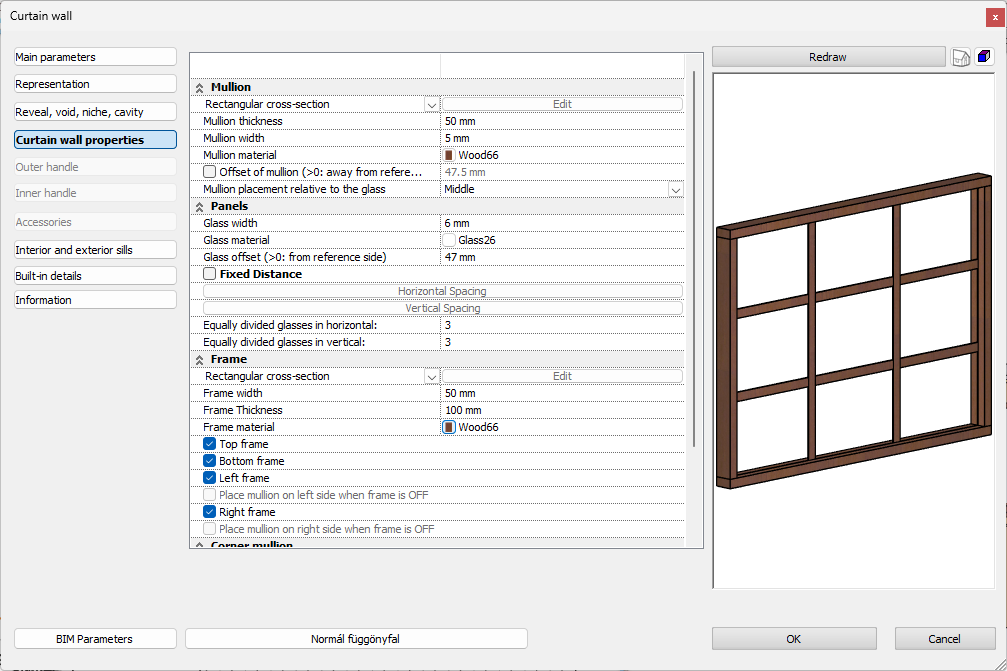

4. In the dialog box that appears, set the curtain wall properties, such as material, divisions, and frame.

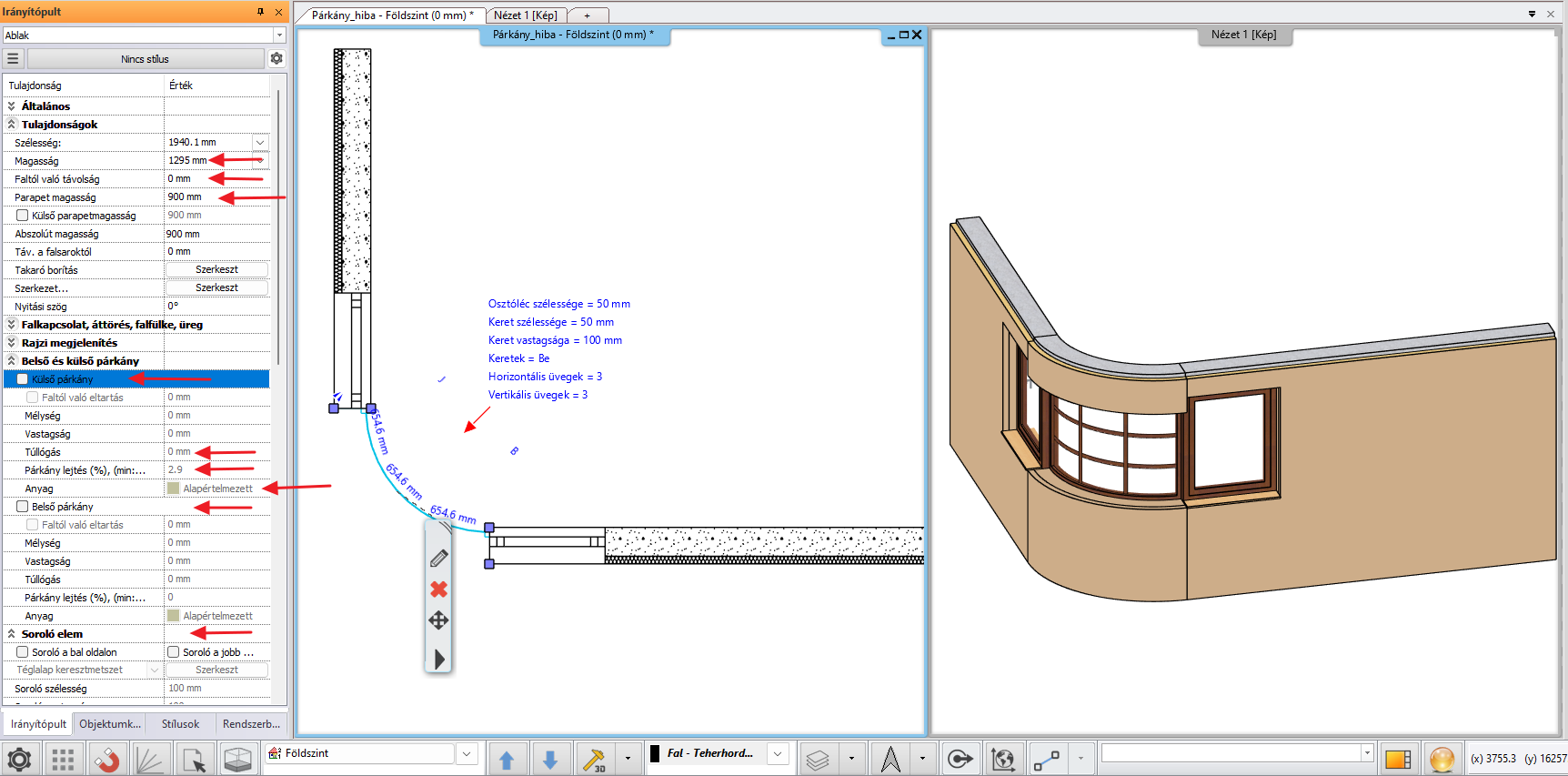

5. Set parameters that match the properties of adjacent elements, such as wall distance, parapet height, window height, outer and inner cornice, etc.

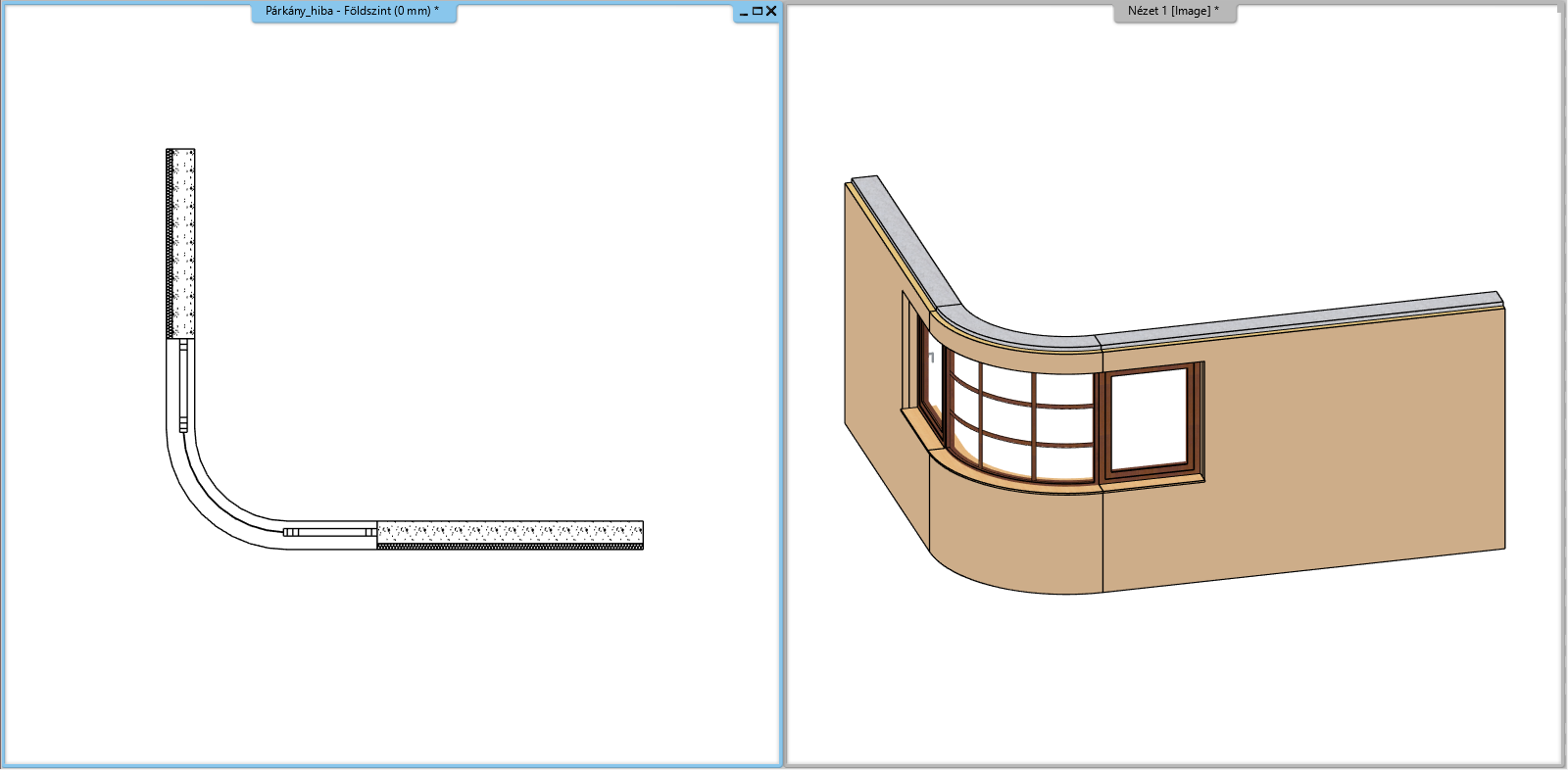

The result:
