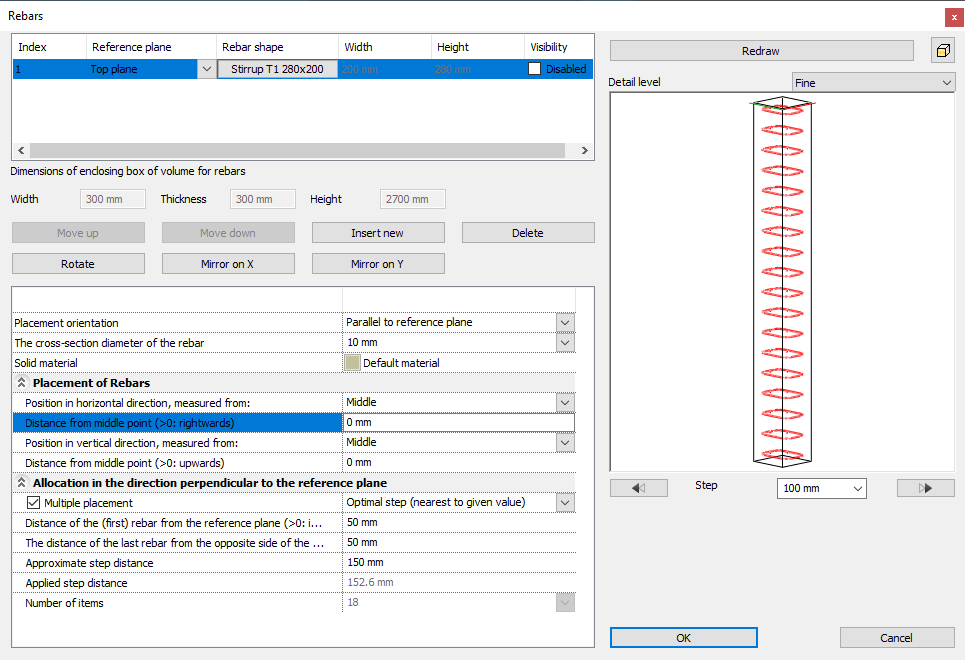

The Rebar tool allows you to place predefined rebar shapes or custom rebar to reinforce concrete modeling elements such as columns, beams, and slabs.
Note: Rebar tool is available in Professional version only.

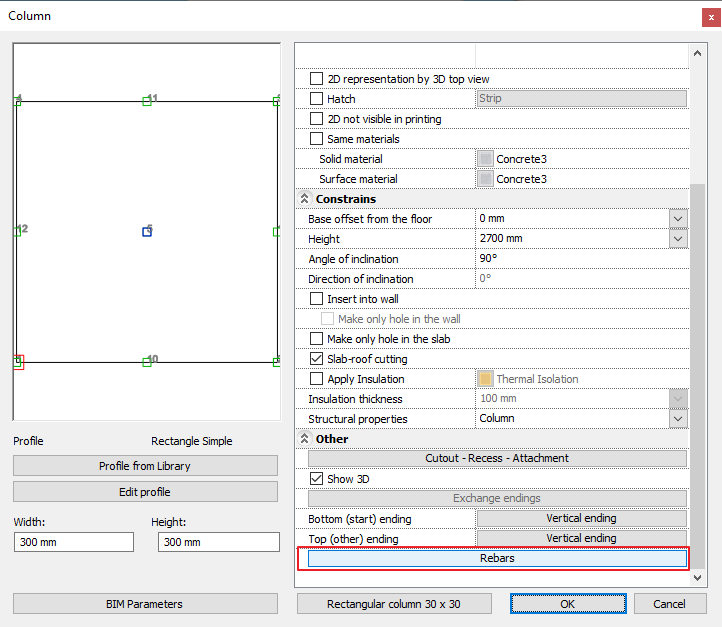

The settings are found in the Other section of the Column / Beam Properties dialog.
Where is it?
Rebar Shapes:

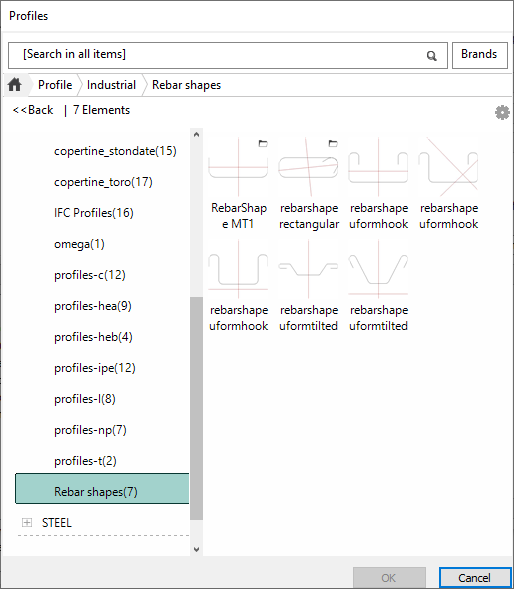

You can choose among these predefined rebar shapes
Hooks
Rebar Shape definitions include hooks in.
You can specify hook shapes in Edit Profile dialog.
Hook parameterization:
|

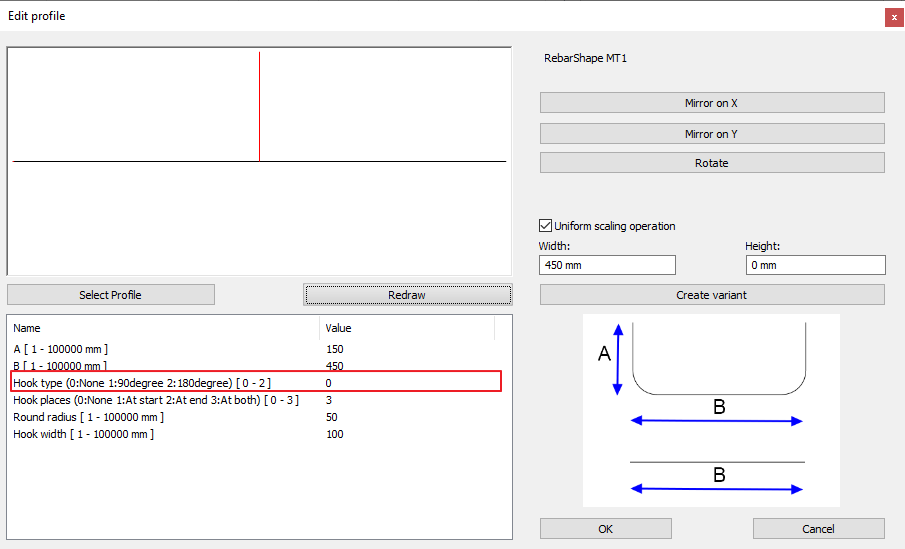

Hook type 0 Without hooks included (cleared), |
|
|

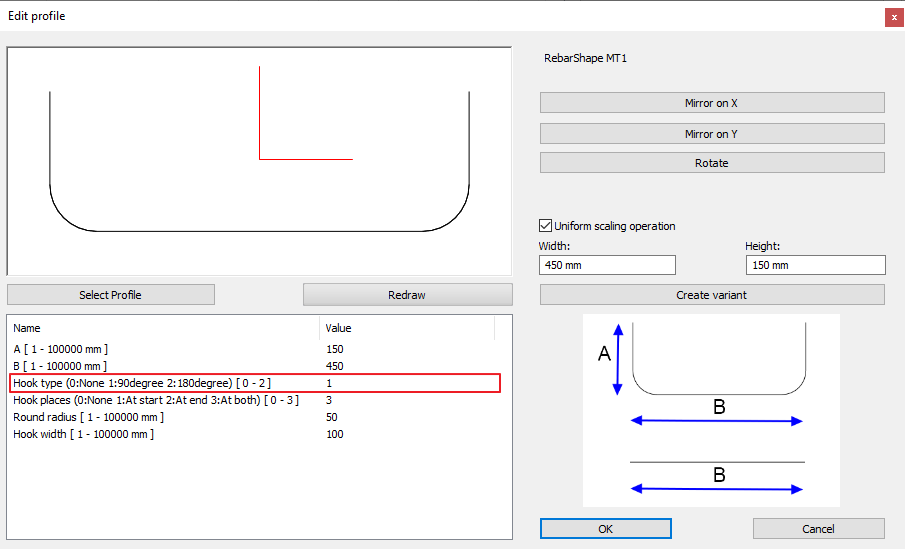

Hook type 1 With hooks |
|
|

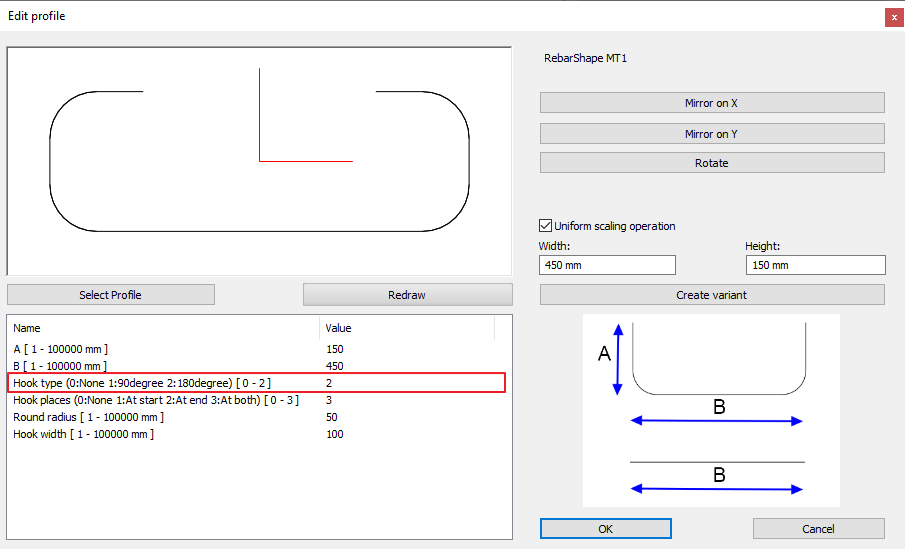

Hook type 2 With hooks bended |

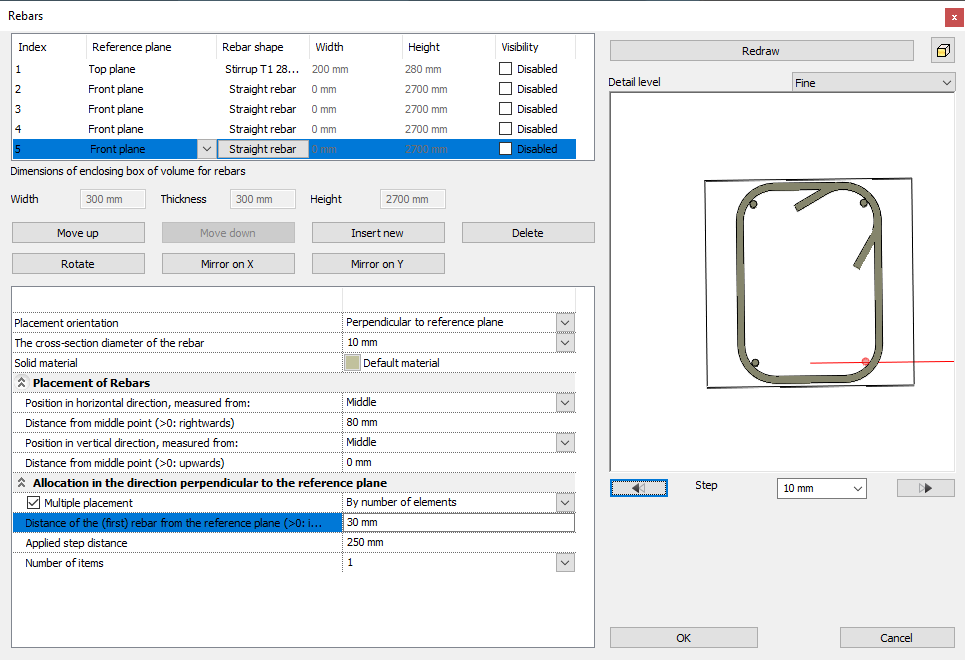

Example:
