Calculator

The built-in calculator is used to enter the numerical values of the plan.

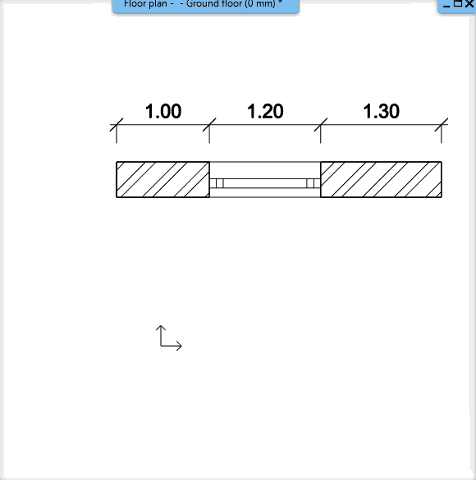

The calculator becomes available when you click on a dimension or size label.

You can enter values directly into the numeric keypad or calculate values using the calculator functions.

To enter a value in the numeric keypad, use the following method:
- Clear the displayed value with the C key.
- Click the numbers or type from the keyboard.
- Click OK to finish the number pad.

For calculation operations:

- Clear the displayed value with the C key.
- Click the numbers or type from the keyboard.
- Clickon the corresponding operation button.
- Click the = button
- Click OK to close the numeric keypad.

Store, modify and recall numbers
Number storage:
Click the MS button.

Add to or subtract from a stored number:
Click the M+ button to add the new number to the stored number.
By clicking the M- button, you can extract the new number from the stored number.

Show stored number:
Click the MR button.

Delete a stored number:
Click the MC button.

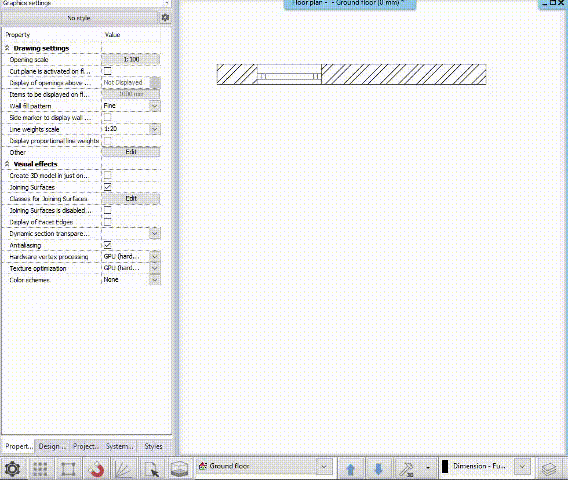

How to switch off the calculator?

Go to Options - Units and Angles panel and click on the checkbox "Use a calculator to enter a dimension".

When off, the classic dynamic input field appears when you select a a dimension or size label.
Type a value in the dynamic input field and press Enter.
