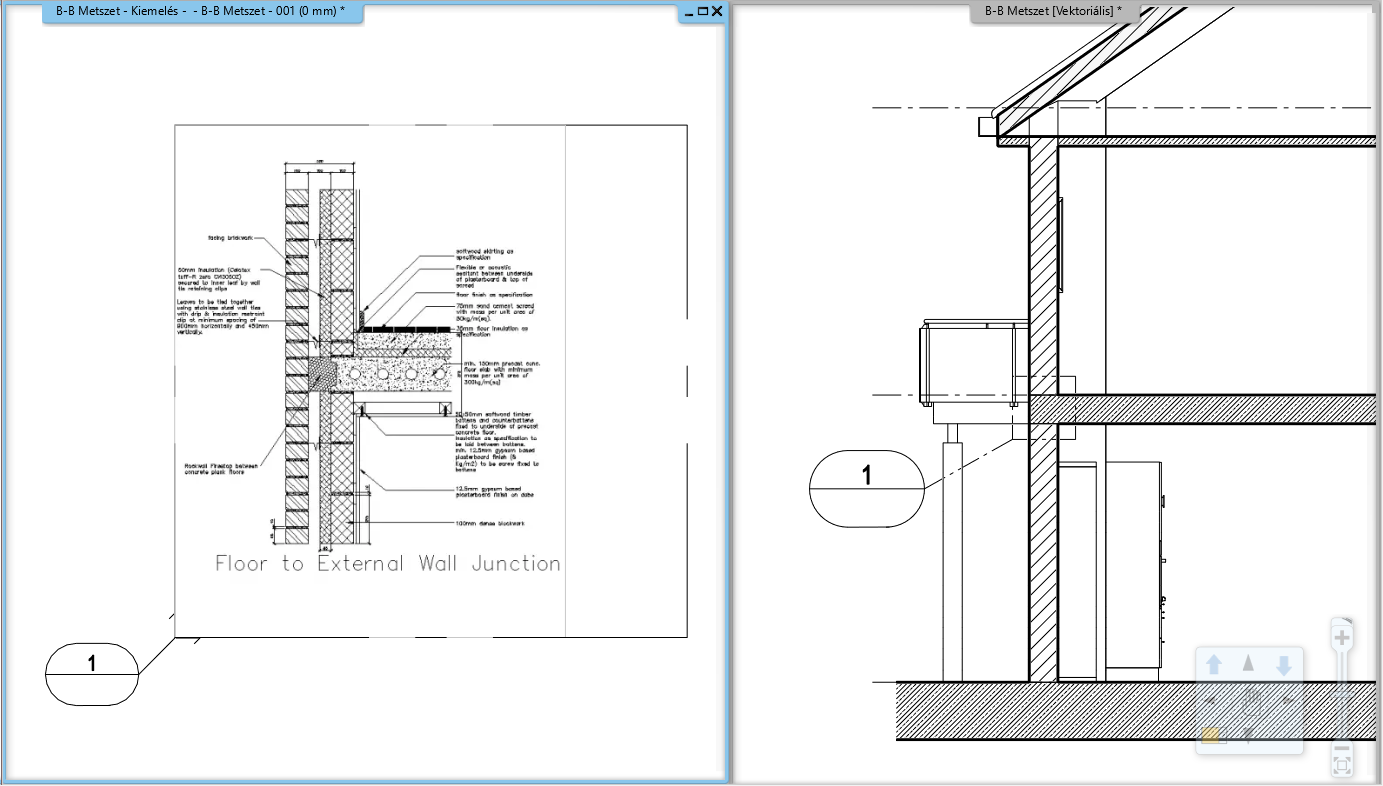

The novelty of 2023 is that the content of the Callout can be replaced with an external content, e.g. a raster image or a DWG file, with this, a construction-level representation can be assigned to the node.
To replace the current content of Callout with raster image or a DWG file use the following method:

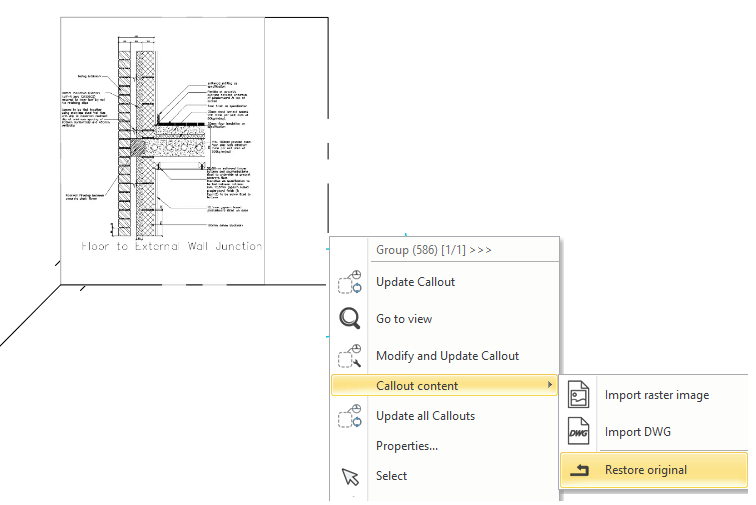

- Right-Click on the Callout frame and select Callout content - Import Raster Image or Callout content - -Import DWG
- Select the required file in the Open dialog.

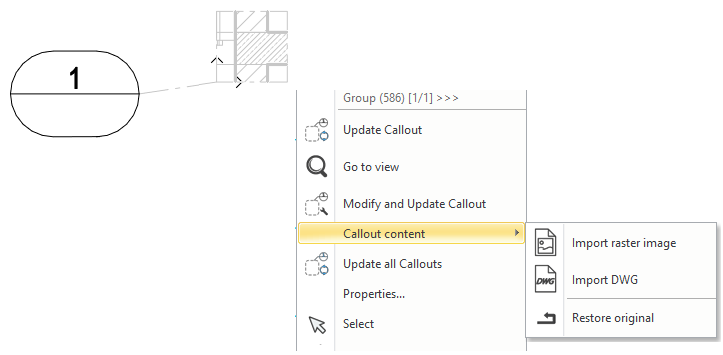

Restoring original content of the Callout
The original content can be restored with the Restore command.
