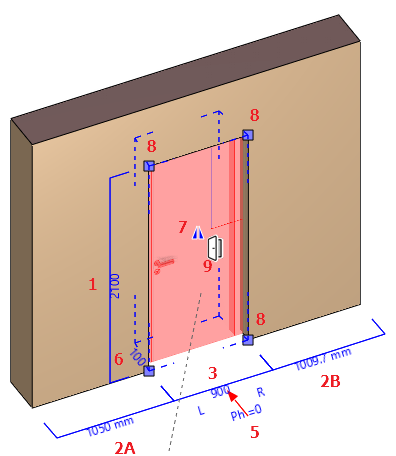

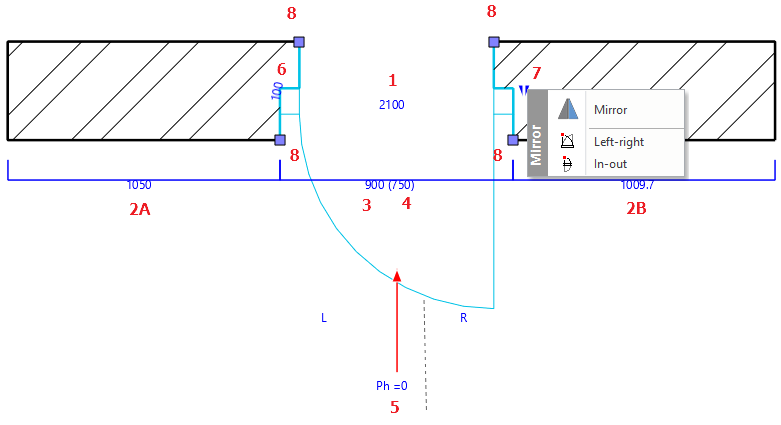

The dimensions shown in blue (see following images) can be changed by clicking on them with the mouse and then entering the desired value on the keyboard or starting the relevant commands.
Number | Description |
1 | Height |
2A / 2B | Distance from wall endpoints |
3 | Width |
4 | Width minus reveals |
5 | Parapet height |
6 | Distance from wall line |
7 |
Change opening options |
8 |
Change position and size |
9 |

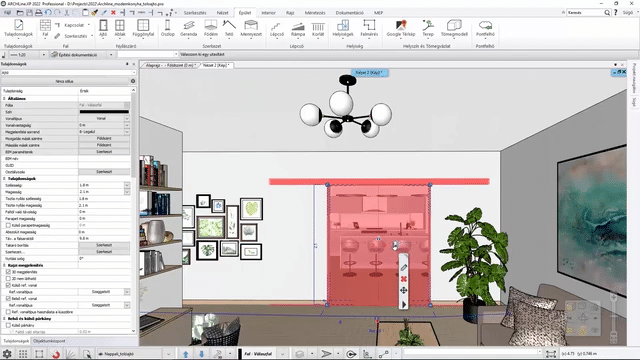

Door/window opening animation. Opens the door and closes at the end. |
