Layer Wrapping at Wall Ends

You can specify how each layer of a compound wall will finish at the end. When the end of the wall is not connected to another wall and it has several layers, you can modify the layer endings separately.

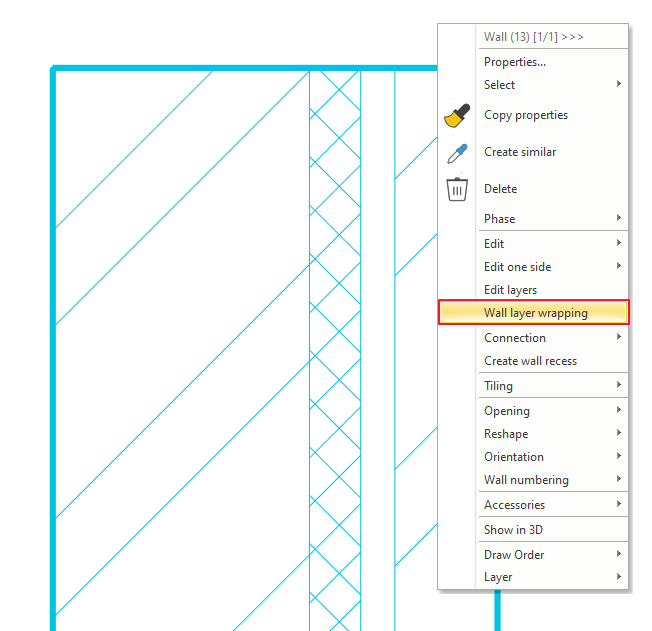

1. Right click on the wall and select the Wall layer wrapping option.

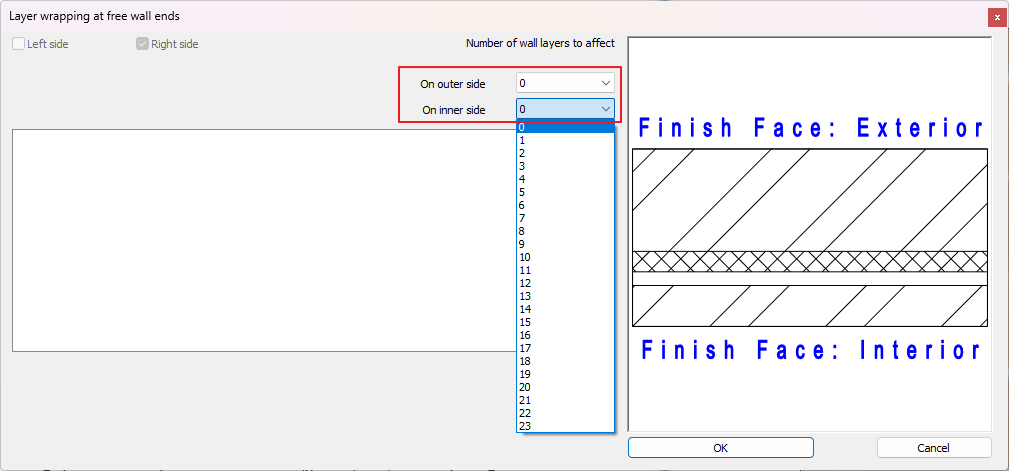

2. In the appearing dialog select which direction you want to wrap the layers and how many layers in the drop down menu.

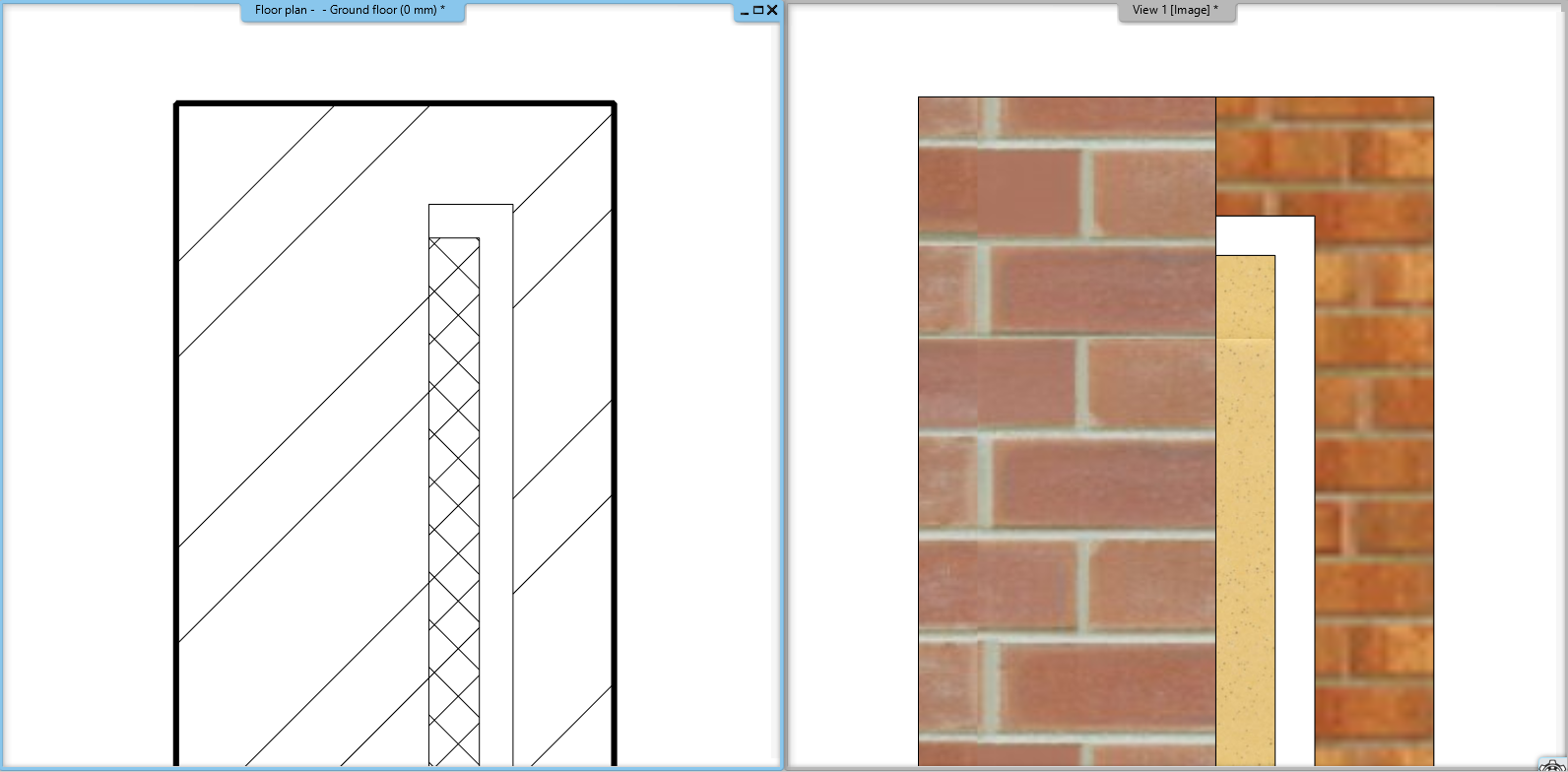

3. After you selected how many layers should be affected by the layer wrapping, you can set the properties of each layer wrapping. In the preview image you can see the result.

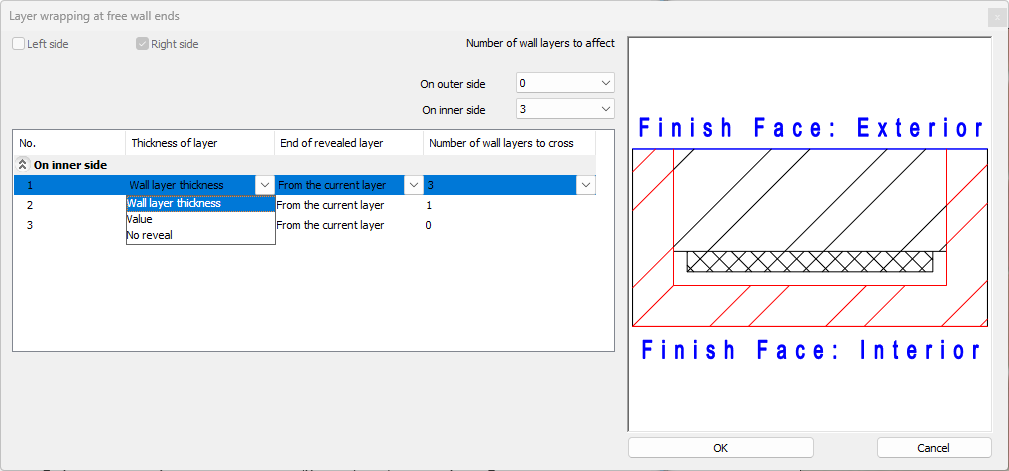

   1. Thickness of layer: you can use the original thicknes, set a value or exclude the layer from wrapping.

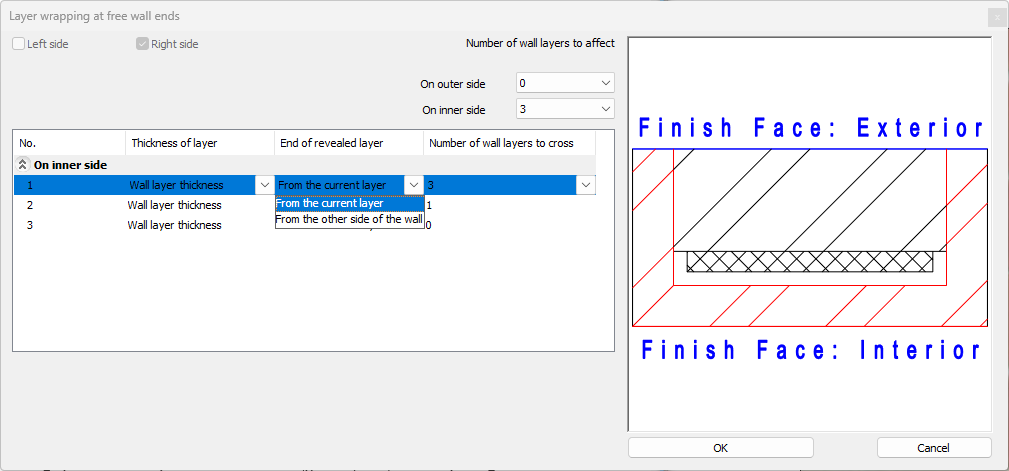

   2. End of revealed layer: you can mirror the reference side of the wall and make it easier to get the desired result in case the wall has lots of layers.

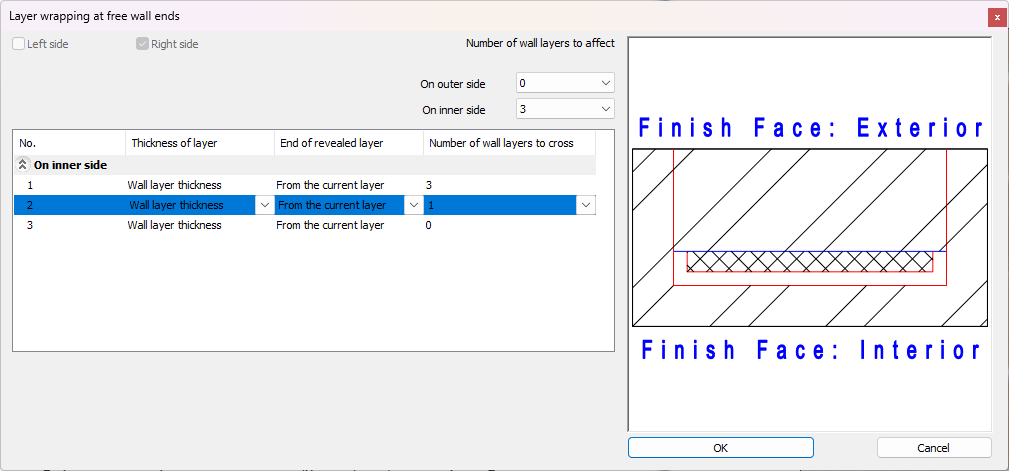

   3. Number of wall layers to cross: set number of layers to cross for each layer separately.
