When creating a section view, you can set the section depth and width.
For this, the following parameters must be activated.

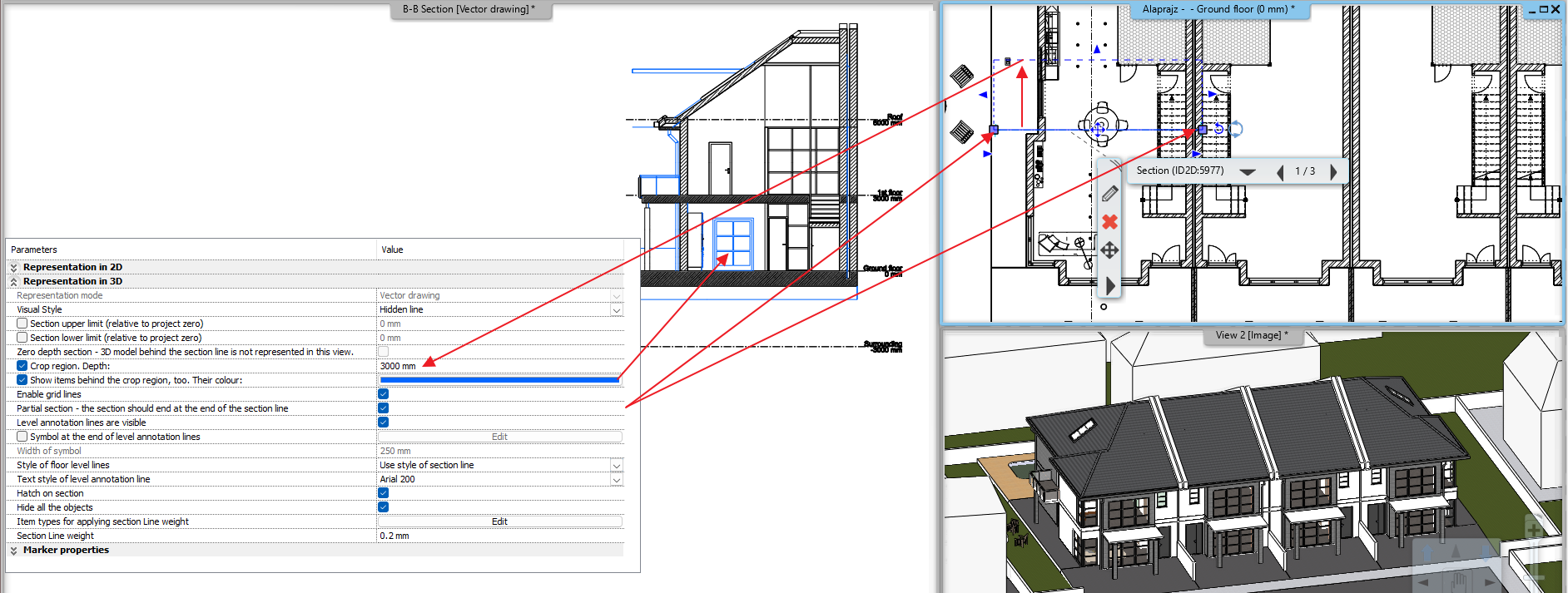

Location: Documentation - Section - Section Settings
| Property | Description |
| Zero depth section | 3D model behind the section line is not represented in this view. |
| Crop region | 3D model behind the depth, is not represented in this view. |
| Show items behind the crop region, with a color | 3D model behind the depth, is displayed with the selected color. |
| Partial section | 3D model is limited to the part behind the section line |
