With this tool, you can edit, align and join 2D and 3D elements.

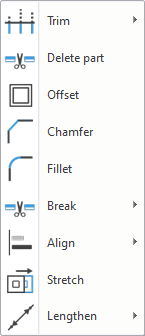

Command location: Edit > Edit
Trim
Various drawing elements can be connected with this function. If walls or 2D drawing elements do not join together, you can use this function to join them with two clicks.
Delete part
This command allows you to delete the part of an element between the two intersection points (or end points) closest to the selected point. If the element has no or only one intersection with other elements, this command is the same as the delete operation.
Offset
Create a parallel section of the same length as the selected element.
Chamfer
Draw a chamfer of a specified angle between two selected elements.
Fillet
Draw a rounding section of a specified radius between two selected elements.
Break
Tool used to cut elements into several sections. Different functions are available for different cases.
Align
The positioning of the elements in relation to each other can be modified and precisely adjusted.
Stretch
Within the selected area, elements can be stretched by a graphical or numerical value.
Lengthen
The geometry of the selected elements can be easily modified.
