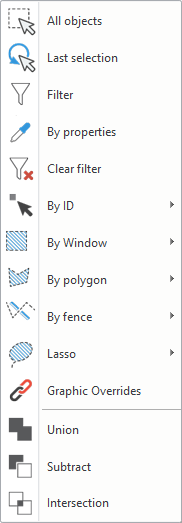

In this menu you can choose between different selection modes and create filter settings.
|
All objects |
Selects all items in the current view. |
| Last selection | Selects the last selected items. |
| Filter | Selects items based on specified properties. |
| By properties | Specify graphically what type of objects you want to select, based on which properties, and how to apply the selection filter. |
| Clear filter | Reset filtering conditions to default. |
| By ID | Select items by different IDs (ID, GUID). |
| By window | Use a rectangle to specify the items to select. |
| By polygon | You can specify the elements to be selected by a polygon. |
| By fence | Whichever elements are touched by the drawn polygon will be selected. |
| Lasso | By continuously pressing the left mouse button and moving the mouse specify the selection area. |
| Graphic overrides | You can set different display modes for elements with different phases. |
| Union | Elements can be selected alongside elements that are already selected. |
| Subtract | Select elements that are already selected to deselect them, leaving the other elements selected. |
| Intersection | Only those elements selected within the new selection remain selected. |
