Truss

In the Truss dialogue you can create special support structures based on specific parameters.

Command location: Building > Truss

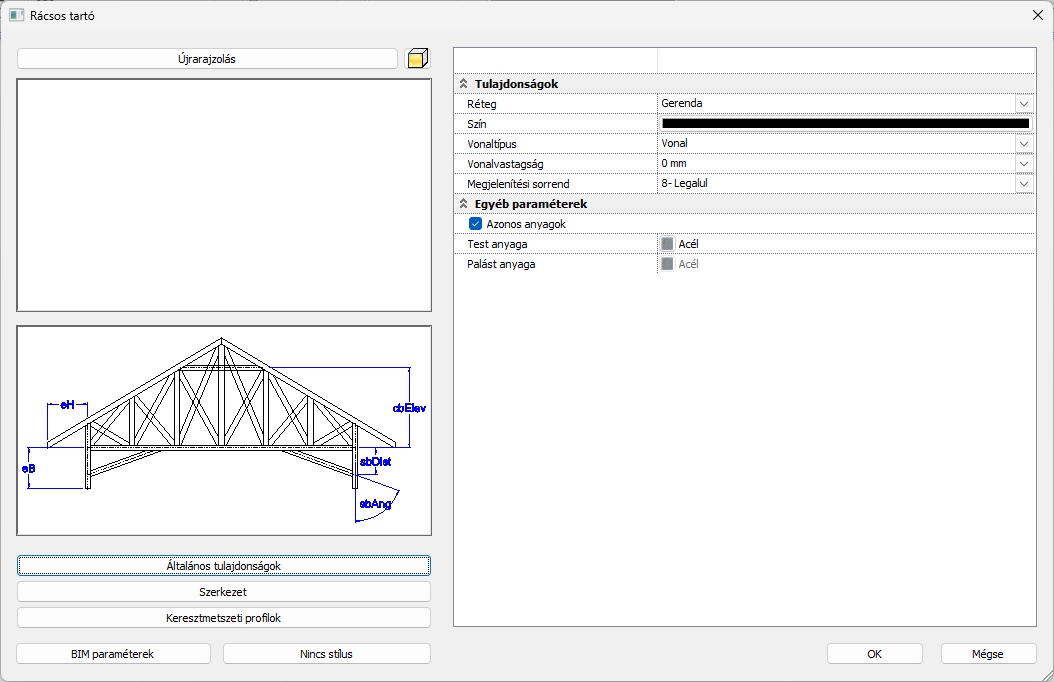

General properties

Here you can set the layout properties as well as the truss material.

Structure

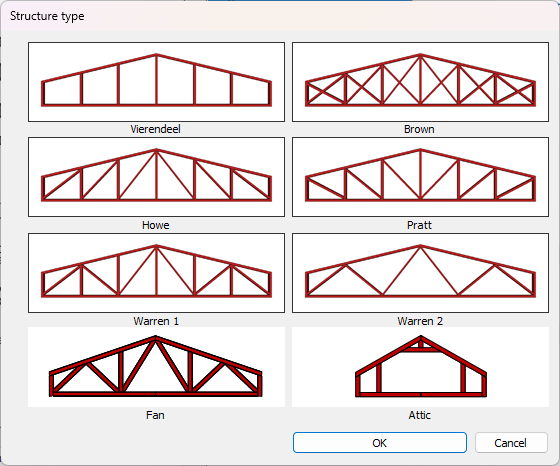

Select the shape you want from the basic settings, then set the properties of the structural elements. The predefined shapes make it quick and easy to create lattice supports.

Section profiles

The different structural elements can be given different cross-sectional profiles, allowing you to completely customise your lattice brackets.
