This feature makes it easy to design and create suspended ceilings in the program. You can add different shapes to the suspended ceiling and also design the built-in lighting.
Command location: Building > Ceiling

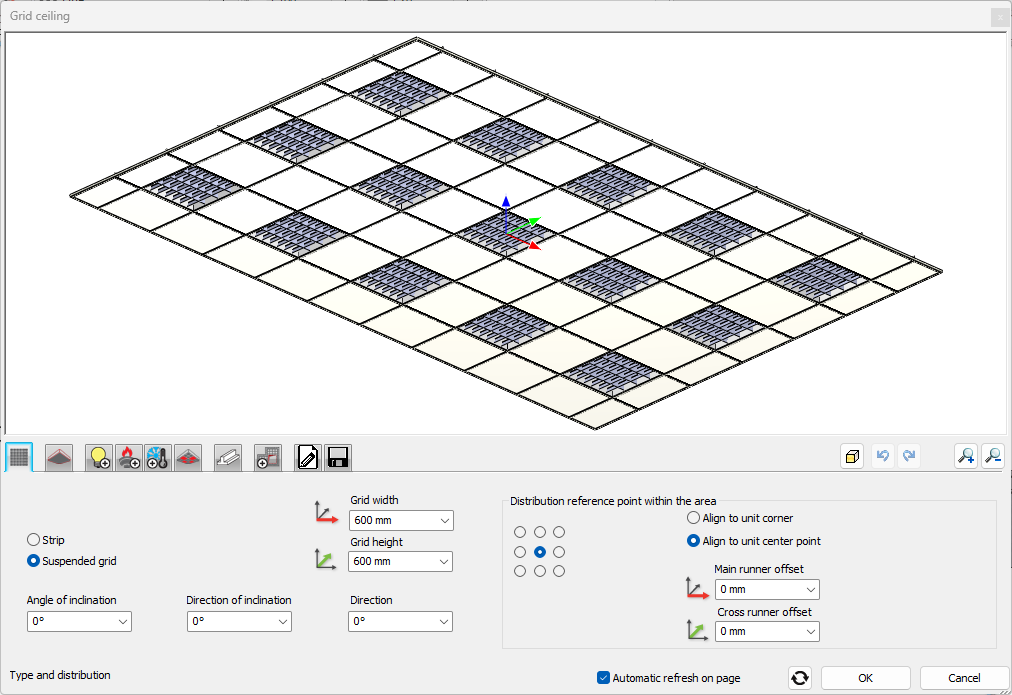

Type and distribution
The basic properties, size and location of the ceiling can be set here.
Default unit for each component
For ceilings made up of elements, you can specify here which colour panels are to be used for the ceiling.
Ceiling lights
Individual lights can be added to the suspended ceiling in any arrangement.
Fire protection unit
Parts of fire alarms, smoke detectors and automatic fire extinguishers can be added to the ceiling.
Air distribution units
Elements and parts of ventilation systems can be easily installed in ceilings.
Other units
Any element can be added to the ceiling that is available in the Design centre.
Main runner, cross runner and perimeter wall angle
In the case of ceilings with elements, the cross-sectional profile of the support structure and the distance between the rails can be specified here.
Holes and insets
Custom openings and additional levels can be added to the ceiling. This feature makes it easy to customise your ceiling, and the only limit is your imagination.
General settings
The floor plan display mode can be set.
Save
You can save your settings so that you can reuse a suspended ceiling with the given parameters at any time.
