It creates curves called B-splines (NURBS), defined with fit points coincide with the spline.
Command location: Drafting > Spline

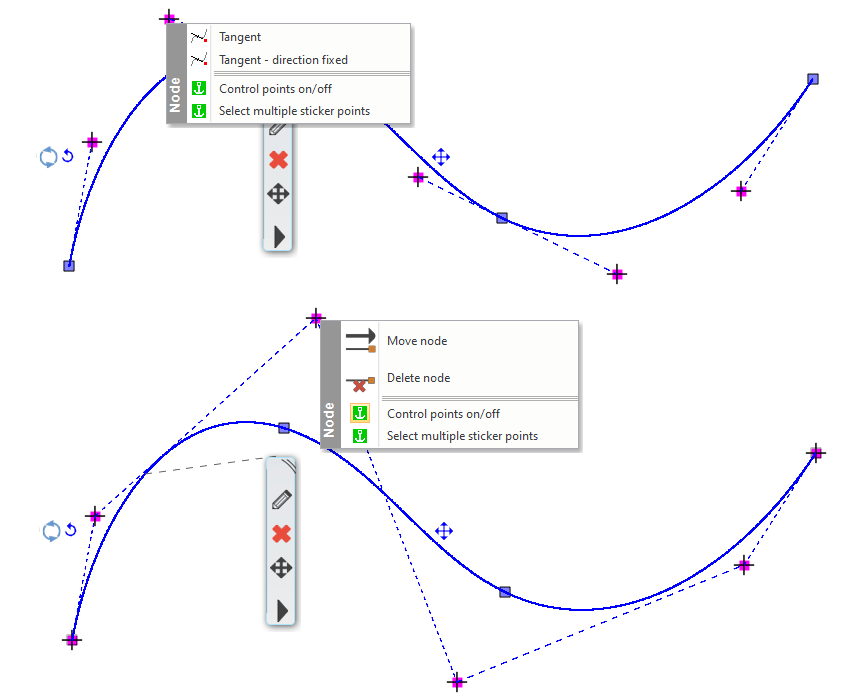

Spline editing by control vertices or fit points:
Editing a spline with control vertices generally provides finer control over reshaping a small section than editing with fit points. Control vertices are signed with purple dots and fit points are signed with blue dots.
