Measure

You can find a collection of different measurement options here.

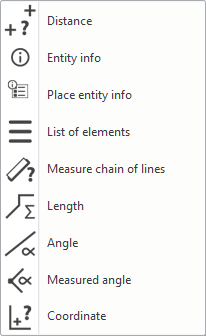

Command location: Annotate > Measure

Distance

Measures the distance between two points.

Entity info

Displays the entity info of a selected object.

Place entity info

Places the entity info of a selected object.

List of elements

List all the elements placed in the project, displays the number of surfaces for each element, and also displays the total number of surfaces in the project.

Measure chain of lines

Measure temporary lines, series of lines and arcs.

Length

Measures the perimeter of an object or element.

Angle

Measures the angle of the line or edge of the selected element or object.

Measured angle

Measures the angle enclosed by two lines or edges.

Coordinate

Displays the coordinates of a point.
