Hand-sketch style

The hand-sketch style command displays the drawing like it was hand-sketched. The quality of the freehand drawing depends on the parameters you set. The hand-sketch style is not available on 3D image views. To restore the previous style of the drawing, click on Assign again.

Command location: Documentation > Hand-sketch style

Assign

The command assigns hand-sketch style to the floor plan drawings. For instance, you can copy the vectorized perspective model from the 3D view on the floor plan, and you can assign hand-sketch style to it. Naturally, the floor plan is displayed in normal mode.

Parameters

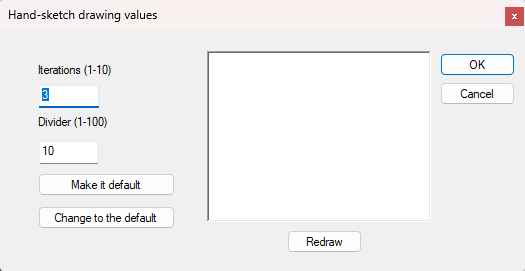

The display of freehand drawings depends on the parameters set in the dialog box. You can modify the following values:

• the number of iterations, which defines line width,
• the divider, which defines the length of lines.

Make it default

The values you set become default settings. The program applies the values you set to the existing and future freehand drawings.

Change to the default

Sets the values back to default.
