The corpus tool has been expanded with the built-in LED lights panel.
The advantage of the built-in LED strip is that the light is an integral part of the furniture, it moves with the movement of the furniture, it is part of the consignment list, it can be saved in the element library and used as a unit from there.
The LED strip belongs to the selected corpus component, its position can be specified graphically or numerically with the X, Y, Z coordinates.

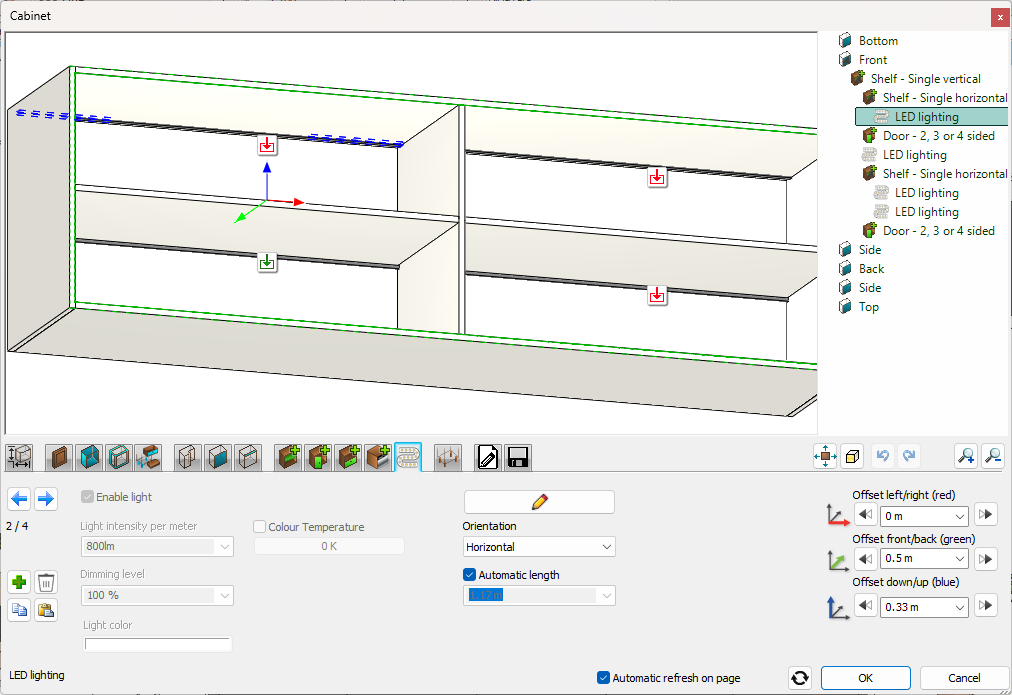

Clicking on the pencil icon on the LED panel displays the LED dialog, where you can edit the properties of the LED light.
In the corpus panel, the properties of the light are only visible, but not editable.
The LED strip can be horizontal, vertical or in any position.
When specifying the automatic length, the length adapts to the length of the receiving element without the side thickness.
