Adding profile to the slab

Use the following commands to modify the whole and the bottom slab profiles and to delete them.

Add whole profile

If you want to create special slab structures (like arched slabs), you have to modify the front view profile of the slab. With this command you can create closed profiles. You can place the profile on either side of the slab, and you can cut the profile from several sides. The program cross-sects these profiles, so you can create sophisticated structures like cross vaults. You can modify the profile on the floor plan and in 3D if you want.

Add bottom profile

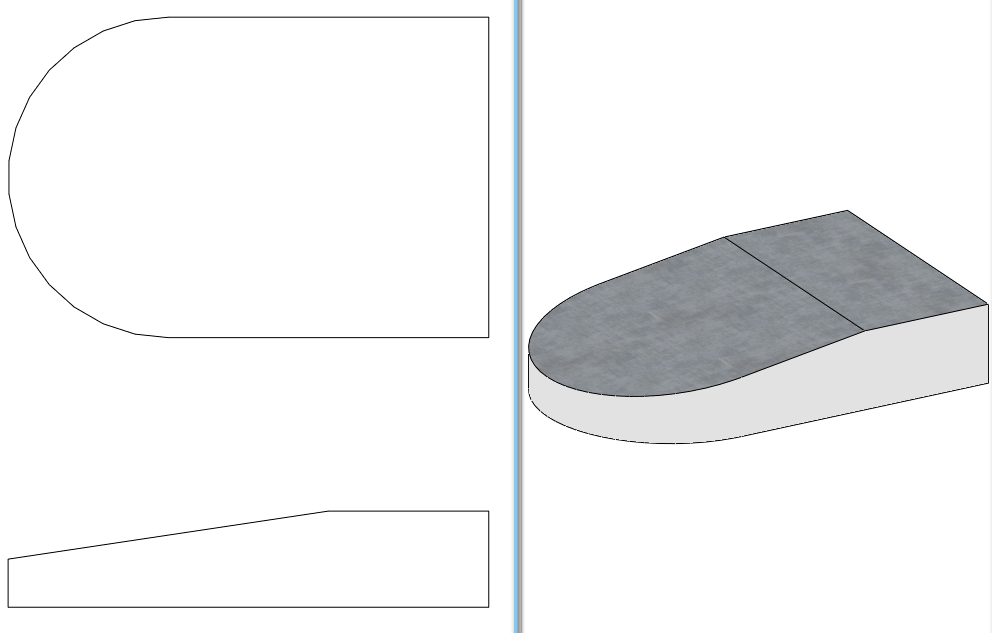

When creating an open profile, you define a section (which can comprise arcs and lines too). The program connects this open profile with the lower part of the slab and then cuts this profile out of the slab. If the profile selected is a closed one, the program automatically deletes one side of it to create an open profile.
