When you add a revision cloud to a view, ARCHLine.XP assigns the first revision to the revision cloud by default.

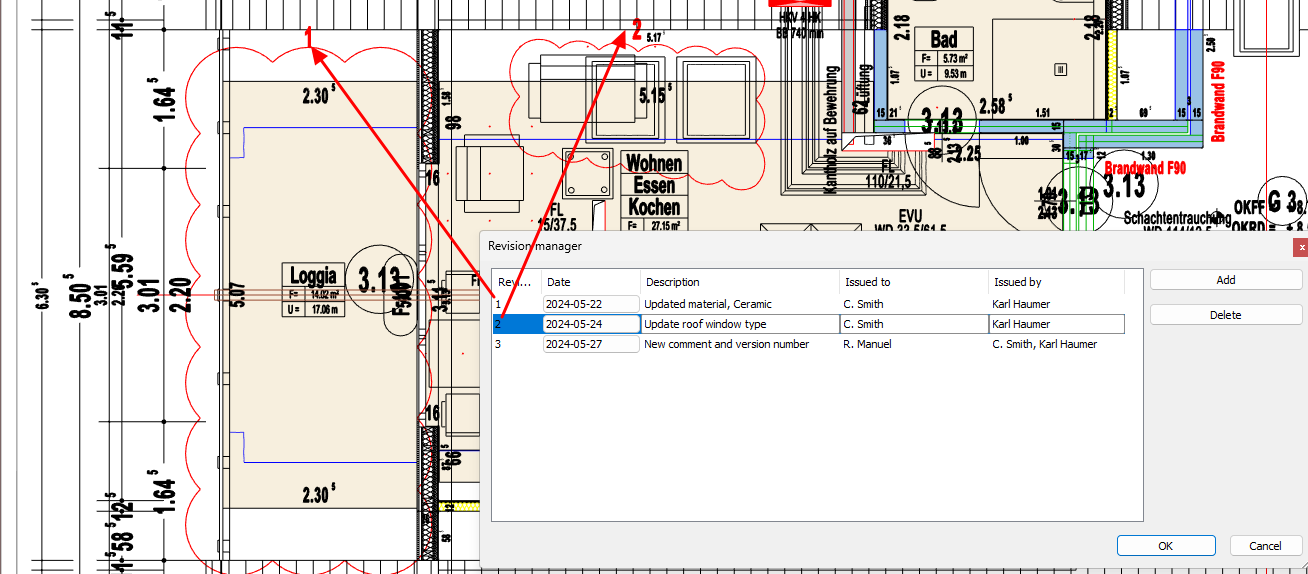

You can assign a different revision to the revision cloud later.
You can assign a revision to each revision cloud, or you can assign the same revision to multiple revision clouds.
Revision Cloud properties
The first line is fixed in the dialog box.
It can be edited, but not deleted. Second and additional lines can be added and deleted.
Name | Description |
Number | A number assigned to the revision cloud, which displays in a revision tag and a revision schedule. |
Date | The date of the assigned revision |
Issued to | Who is the information for? |
Issued by | Who does the information come from? |
How to create revisions?
1. Select the revision cloud / Create command.

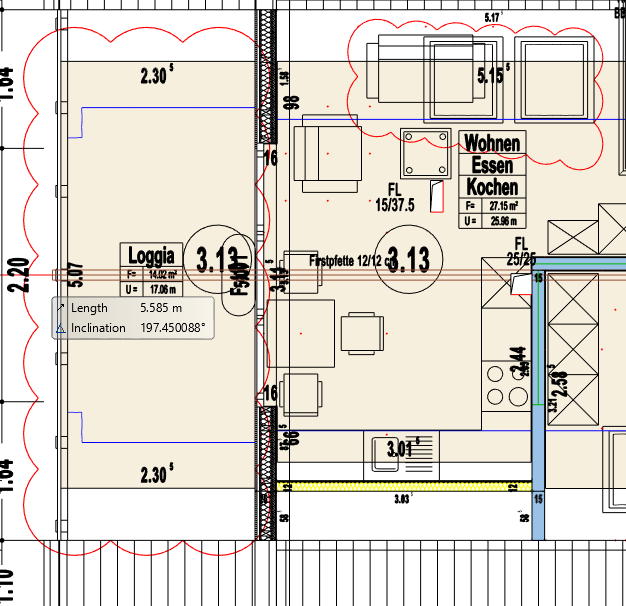

2. Draw the revision as rectangle or circle.
How to assign a revision to a revision cloud?

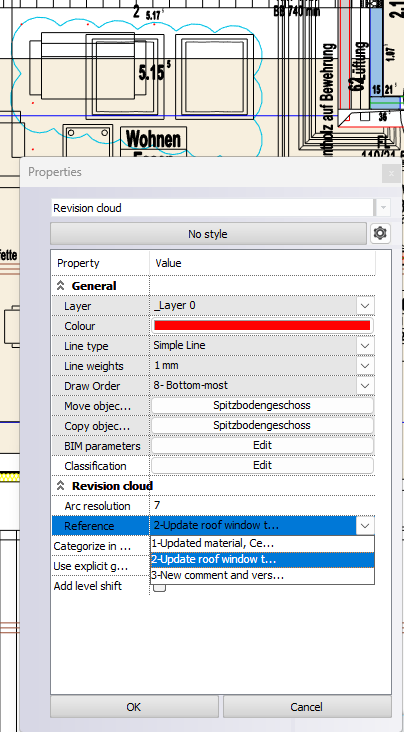

1. Select the revision cloud.
2. In the Properties dialog, select the desired revision from the Revisions list.
3. Click Ok
Show reference
Show reference command displays reference number assigned to each cloud in a view.
Hide reference
Hide reference command hides reference number assigned to each cloud in a view.

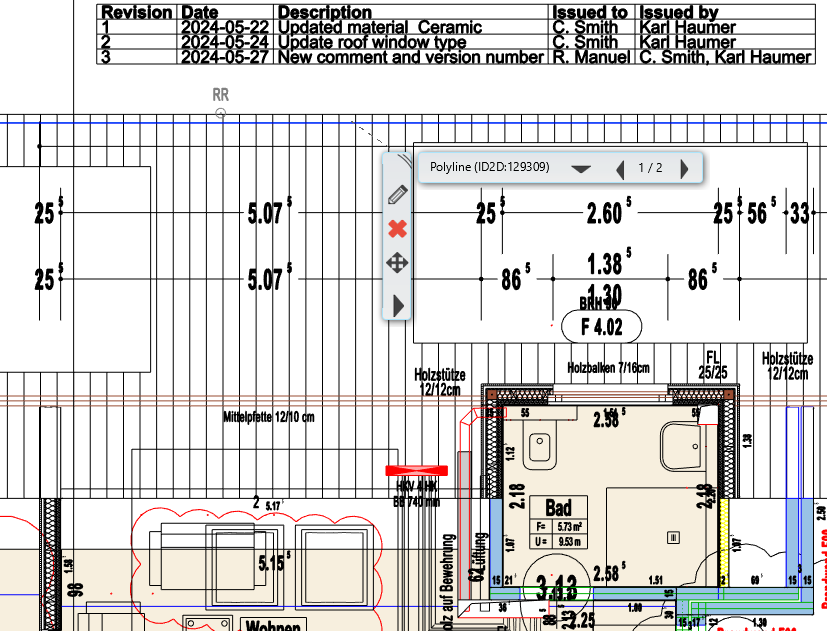

Revision schedule
Revision schedule lists the revisions related to revision clouds in the view. Not assigned revisions are not listed.
