As with the creation of a tiling pattern, you can now create hatch patterns graphically. The mapping of the pattern can be specified by changing the direction and length of the X and Y axes.
Create hatch pattern (graphic)

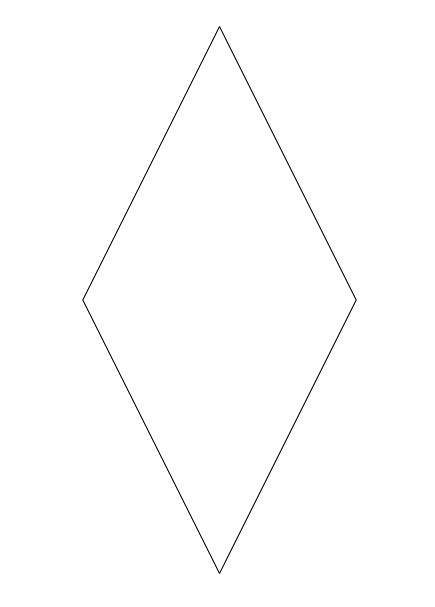

1. Drawing the pattern: the desired hatch pattern can be drawn on the floor plan using 2D drawing tools.

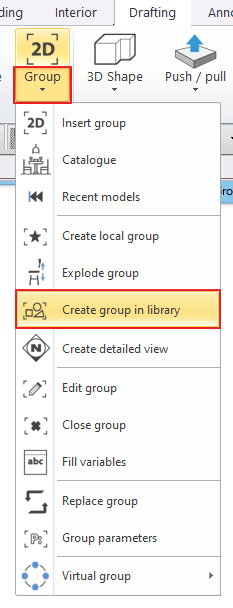

2. Create a group: save the drawn pattern to the library as a group or create a local group of the 2D drawing.

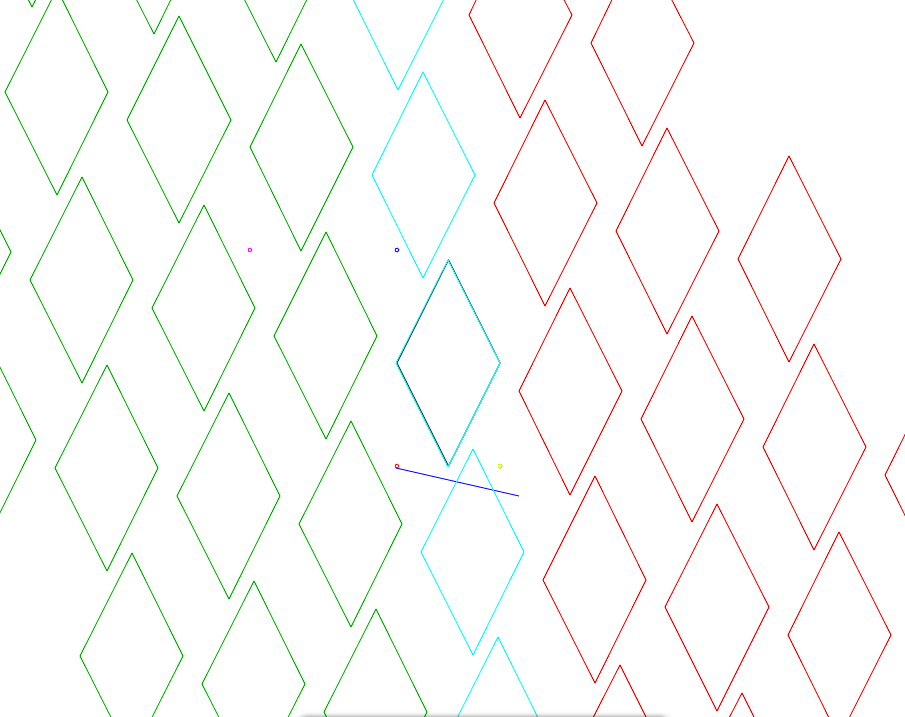

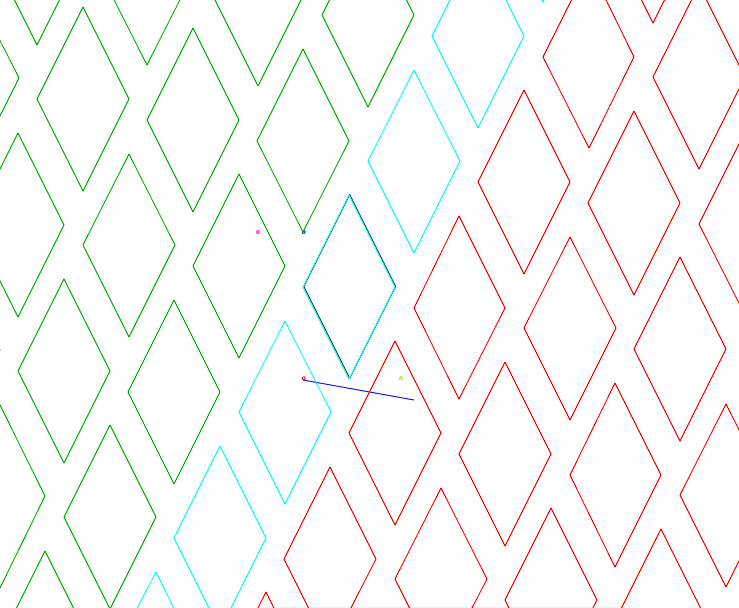

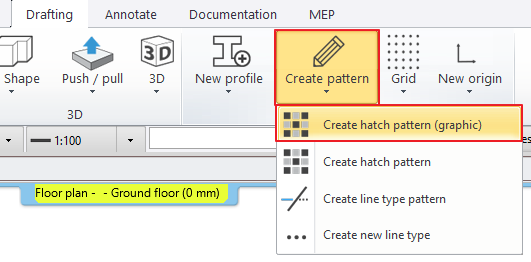

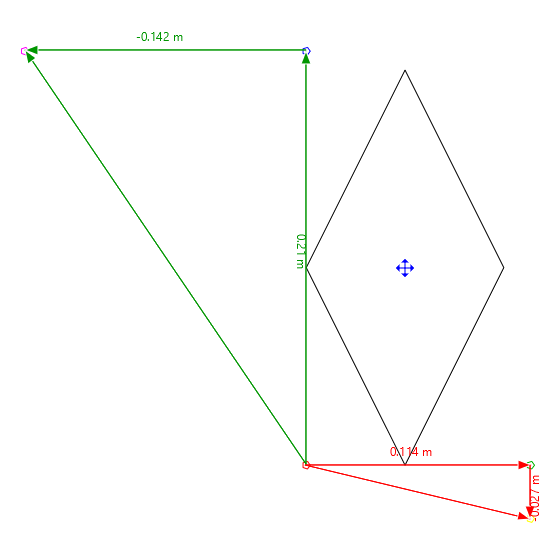

3. Create hatch pattern (graphic): after starting the command Create hatch pattern (graphic), select the group and then use the arrows to specify the parameters for the X and Y direction of the repetition. By clicking on the dot at the arrow ends, the direction is not fixed to the X and Y coordinate, so any iteration can be specified.

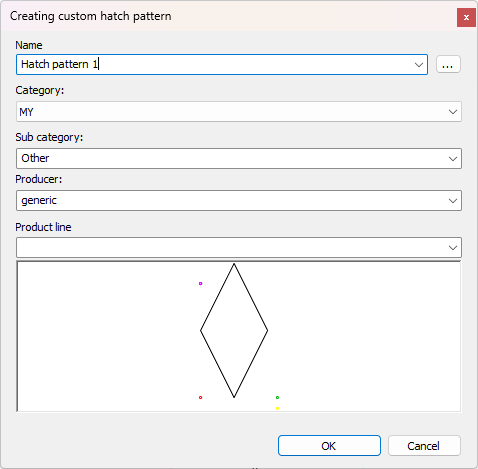

4. Save: press enter to finish editing. In the window that opens, save the hatch pattern to the library.
5. The saved patterns can be viewed in the Hatch dialog after saving.
