Adjust floor structure

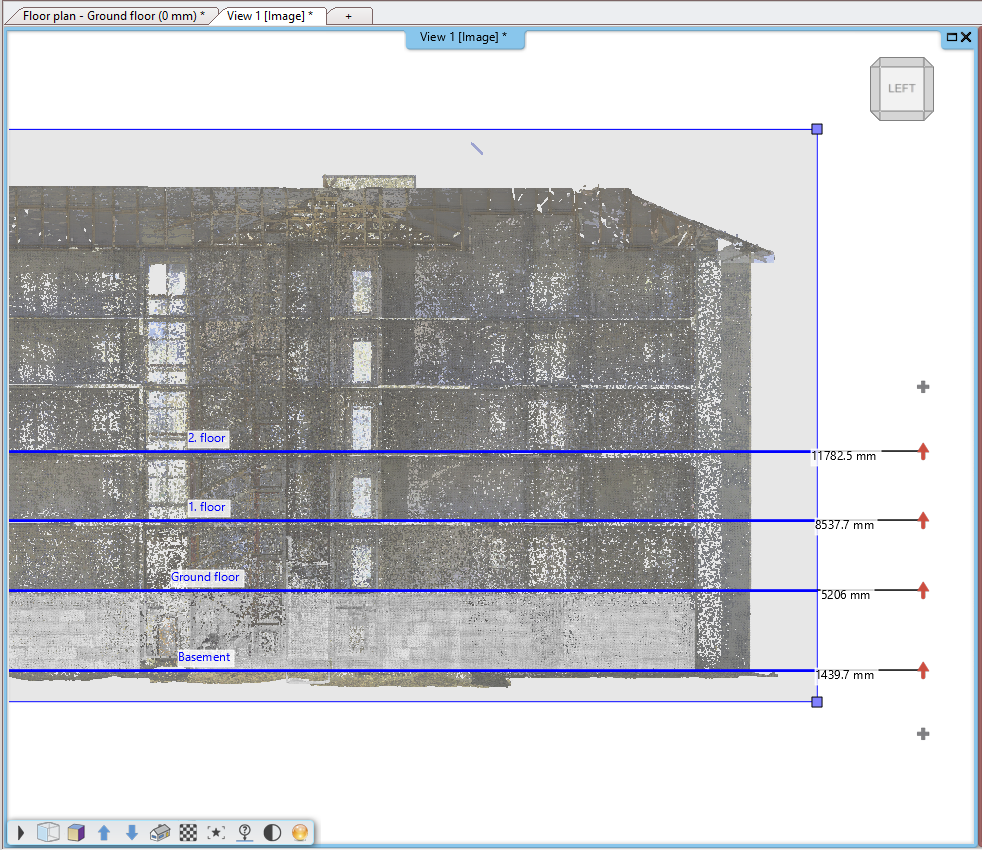

The first step in creating a BIM model from a point cloud is to align the building levels to the point cloud.

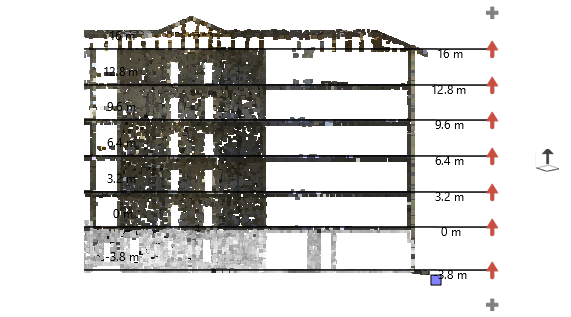

A red arrow allows you to change the floor height.

A gray plus sign means adding a new level.

The graphic settings can be adjusted to the desired values ​​in the levels dialog.

Location of the command: Building - Point Cloud - Adjust floor structure

Commands:
Red arrow - changing the height of the floor
Gray plus sign above - add new level above
Gray plus sign below - add new level below
Black arrow - moving the point cloud, the given point is moved to the 0 level height
