Openings Section list

You can create a graphic table list and place it on the drawing based on the section of the openings and the section lines.

Command location: Quantity take-off > Opening Cross Section list

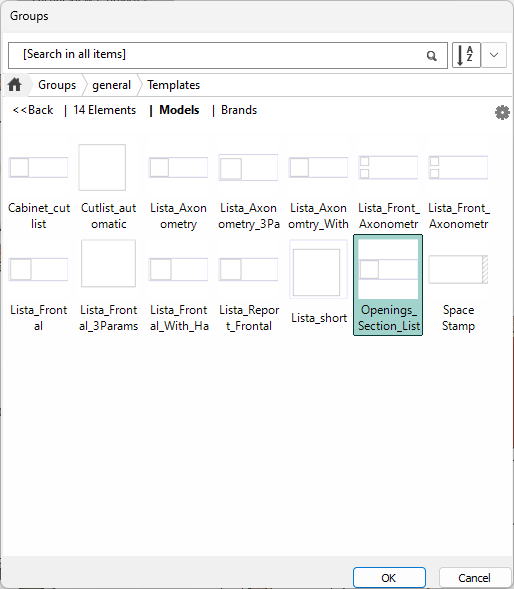

1. Select the group template in which the cross-section and main parameters are displayed.

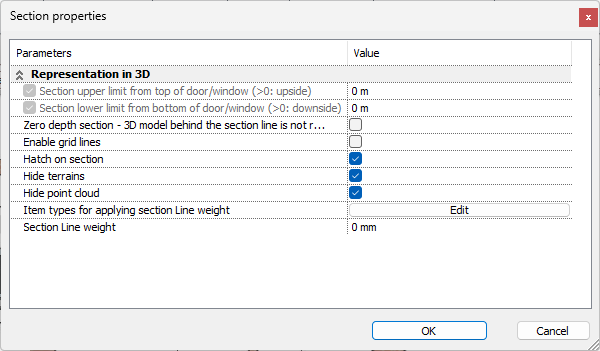

2. Enter the Section display parameters in the dialog that appears.

3. Select the area in the drawing in which you request a list of doors and windows.

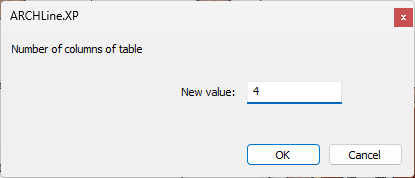

4. Enter the size of the grouping

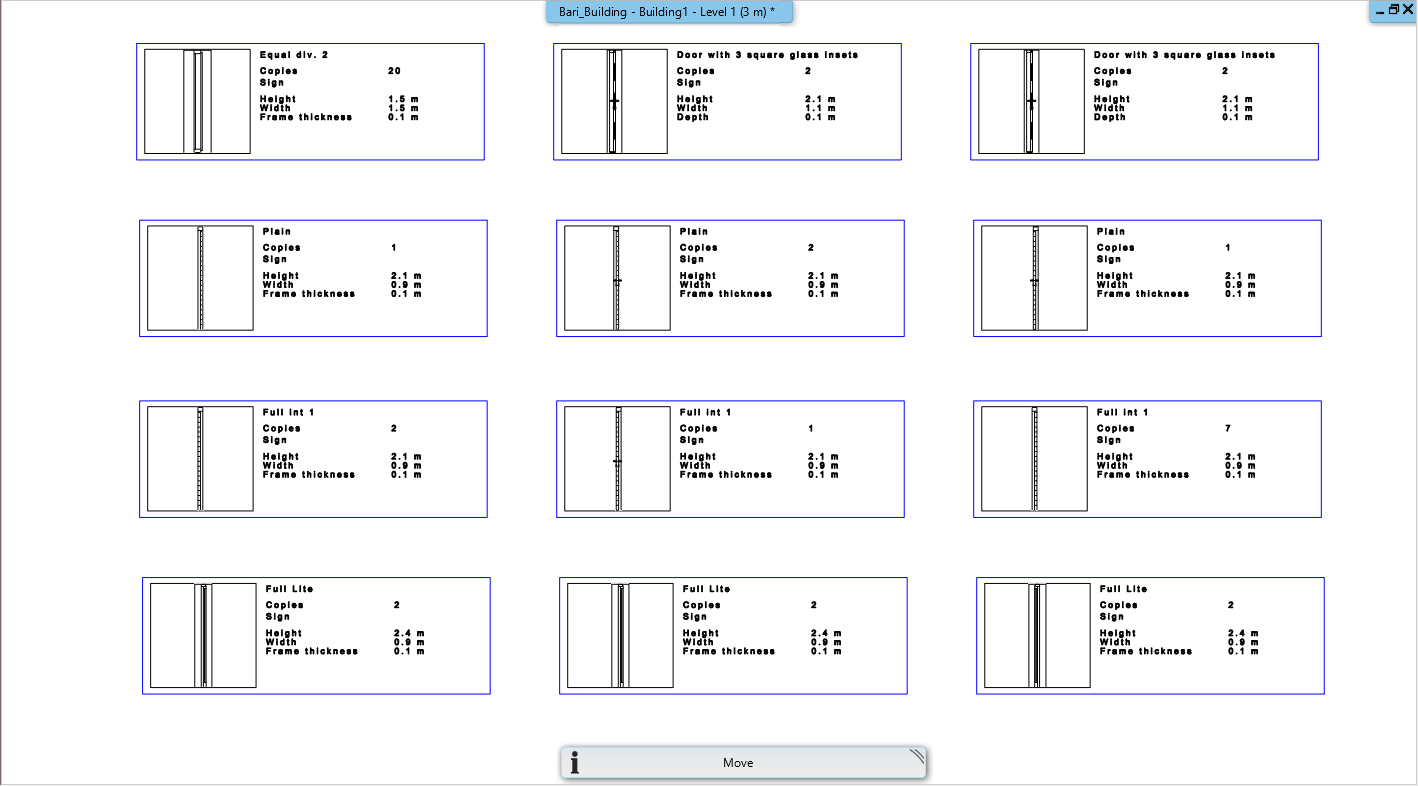

The result is a graphic list on the drawing sheet.
