Wall Tiling 2D/3D

Wall Tiling on Floor plan - Example

• Switch to the floor plan view.
• Left-click on the wall and select Tiling, Tiling on wall side from the local menu.
• Place the displayed wall layout on the floor plan.

The tiling command consists of three parts: the Background area (1), the Tiling (2) and the Editor (3).

Background area

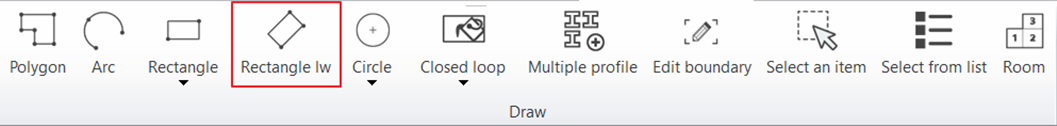

• Choose Add new command, then choose Rectangle lw command.
• Click on the bottom left corner of the tiling and enter the height to be tiled: 1800 mm.

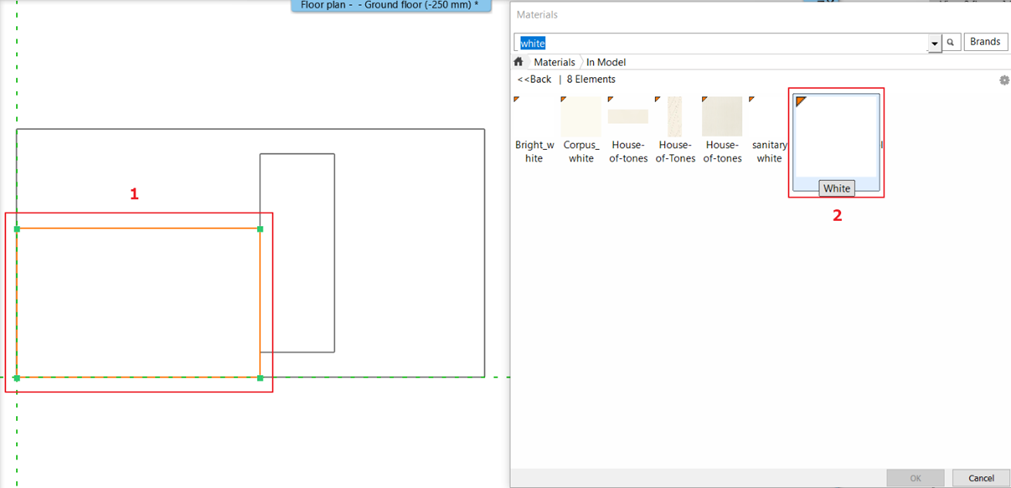

• Draw the rectangle to be tiled (1).
• From the pop-up dialogue menu select White from the library. This will be the color of the tile grout (2).

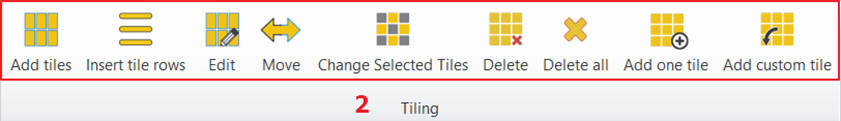

Tiling

• Click Add tiles and select the area you have already drawn.

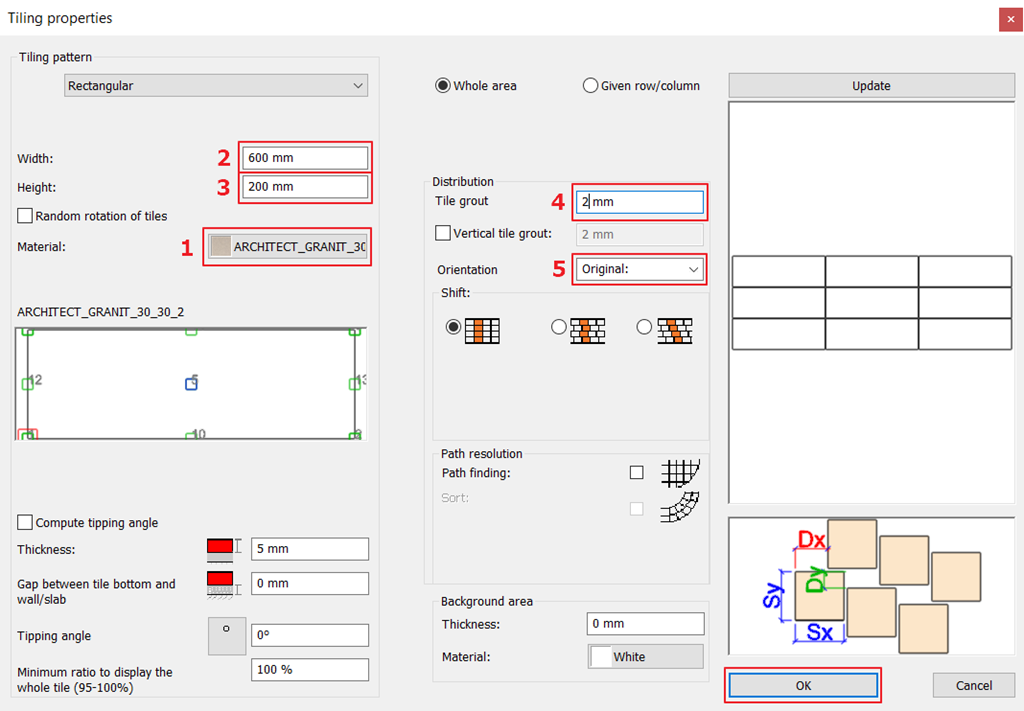

• In the pop-up dialogue click on the material name and select the tile ARCHITECT_GRANIT_30_30_2 from the Materials / Tile / Indoor (1).
• Tile width: 600 mm (2)
• Tile height: 200 mm (3)
• Tile grout: 2 mm (4)
• Tile orientation: Original (5)
• Click OK to place the tiling.

• In the floating menu, select the reference point of the tiling so that it is in the bottom left corner, then place the tiling in the top left corner of the background area.
• Enter the orientation of the tiling: 0°

The results are immediately visible. The next step is to prepare the painted part of the wall.

• Select Add new, then Closed loop, Point of profile and islands.
• Click on the 2D layout inside the area not yet tiled.
• In the pop-up dialogue select PANTONE-S325-3 from the library. Click OK.

Editor

• Click Finish to close the command.

The result is immediately visible. The wall is now tiled.

Wall Tiling on 3D View - Example

The 3D tiling allows you to speed up the tiling style placement.

The surface can be selected with one click, a wide range of tiles can be selected and placed quickly on walls and floors.

• Activate the 3D view (the active view’s frame turns blue). To activate the 3D view just click inside it.

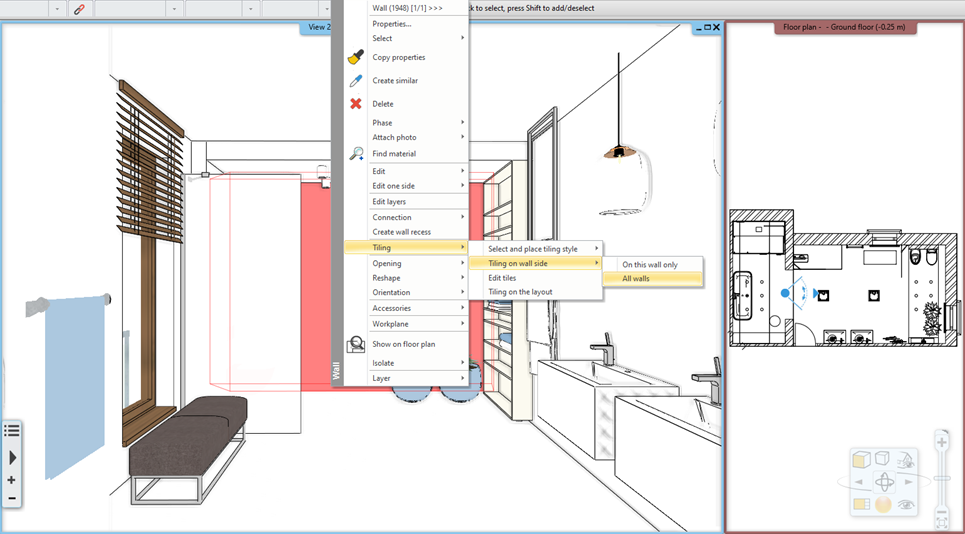

• Right click on the wall and select from the Local menu Tiling / Tiling on wall side / All walls command.

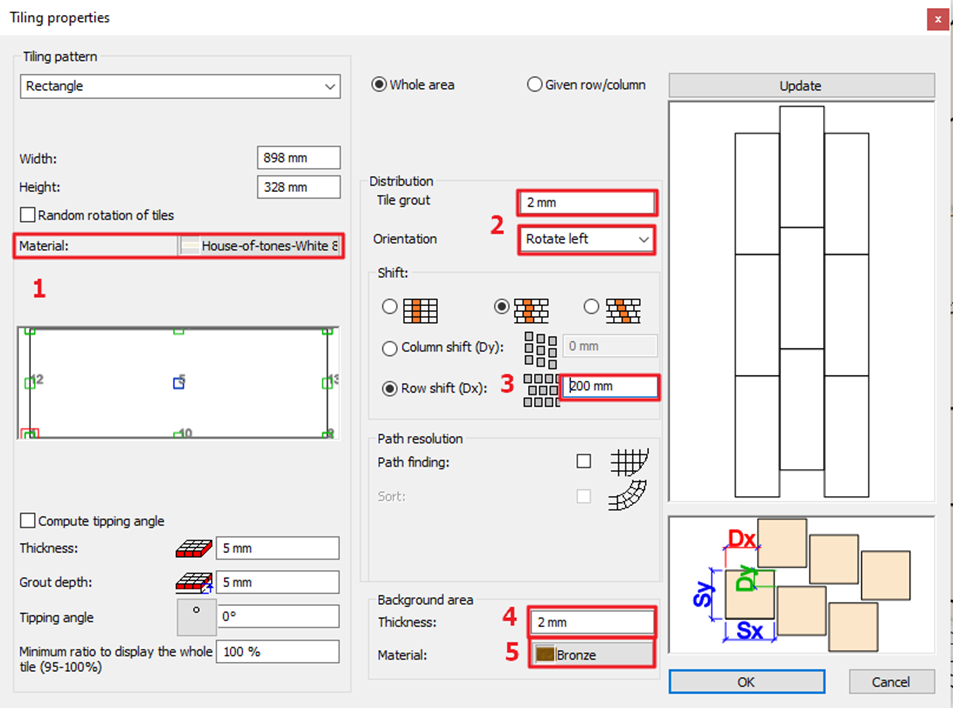

• • In the appearing dialogue, click on the name of the material and select from Library: Material / Tile / Indoor / House-of-tones-White 898x328. (1) The tile grout is 2 mm.
  • Change the orientation of the tiles to the “Rotate Left” option. (2)
  • Enable row shifting and set the value to 200 mm. (3)
  • The thickness of the background area is 2 mm. (4)
  • The material of the background area which gives the material of the grout is: Bronze. (5)



  • To place the tiles, click on the OK button.
  • The result can be seen immediately.

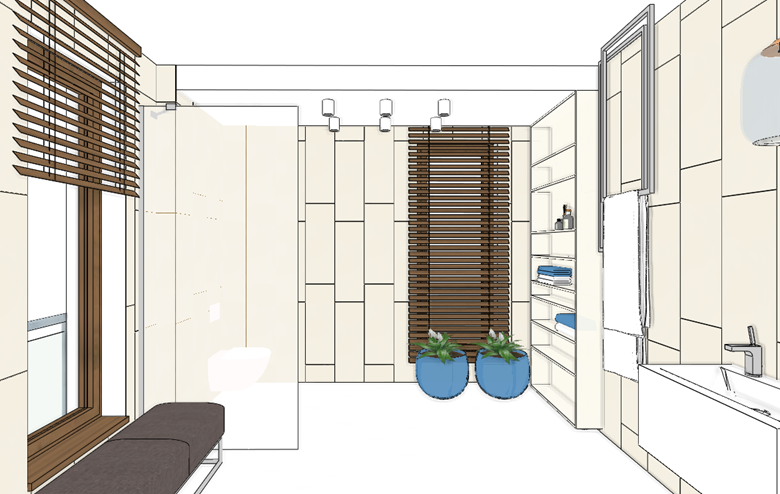

  All walls of the bathroom will be tiled entirely from floor to ceiling with the chosen tile.
