Uploading projects into Viewer Mobile app

Upload your project into ARCHLine.XP Viewer with one touch of a button.

Attention:

• You can upload projects to ARCHLine.XP Viewer with ARCHLine.XP PRO 2025 build 342 or later.
• ARCHLine.XP must be activated with the user account (not serial number)!

Note: The current version of the project is uploaded to the ARCHLine.XP Viewer. This means that the program does not upload the last saved state to the project, but the project state available at the time of clicking the ARCHline.XP Viewer button.

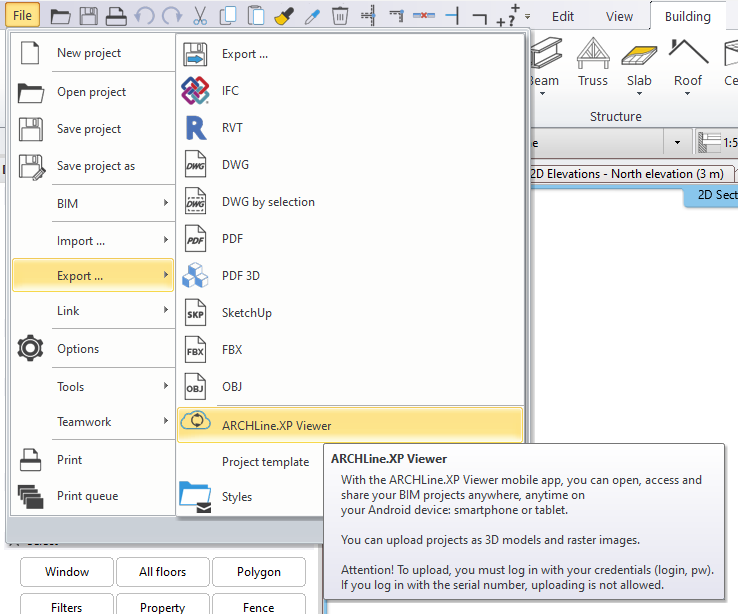

Location: File > Export > ARCHLine.XP Viwer

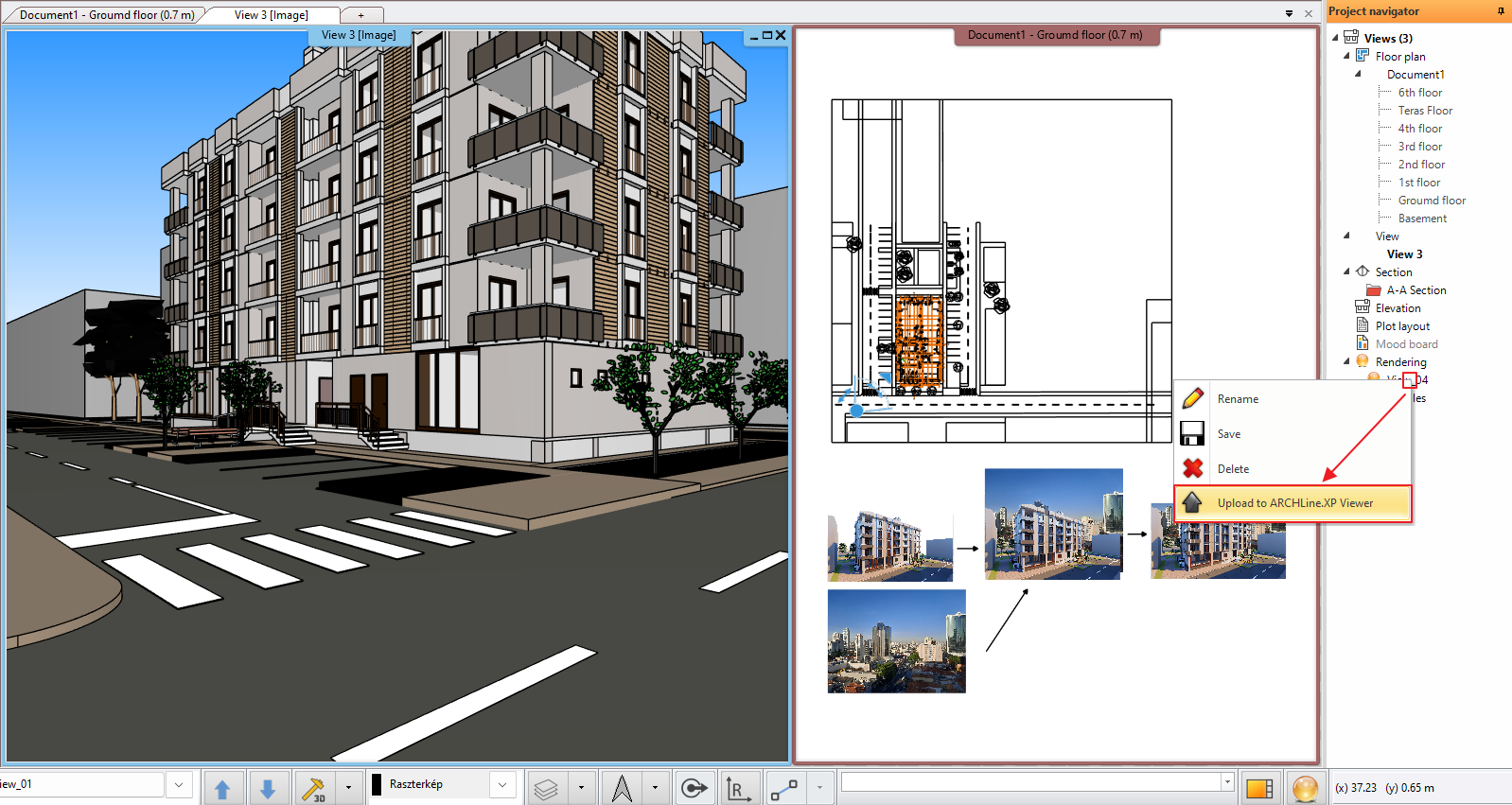

You have the option to only upload your rendered images without the 3D model. In the Project navigator right click on the desired image and select the Upload to ARCHLine.XP Viewer option. This way only the rendered image will be uploaded. Please not that only rendered images created in ARCHLine.XP can be uploaded, no external images can be uploaded.

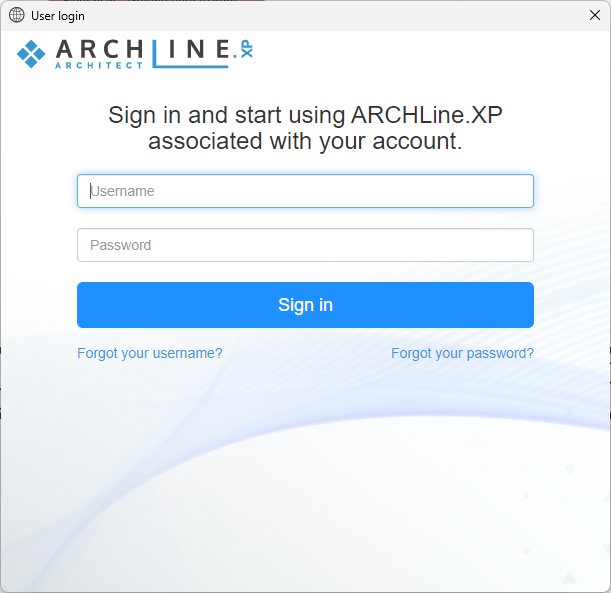

To upload your project or rendered images it is necessary to sign in to your user account that is created on our website. There are two ways of doing it:

• You activate ARCHLine.XP on your computer by logging into your account. This way you are already logged in and the upload will start automatcially.
• You activate ARCHLine.XP with your serial number. This way a dialog appears where you can log in to your user account. After logging in the upload will start automatically.
