Working with ARCHLine.XP project

Project-oriented design
ARCHLine.XP is a project-oriented design software. The project includes a complete description of the building or buildings and all the information needed to display the floor plan of the building and its associated 3D model. Therefore, the project is an ideal tool for managing multiple cohesive drawings together. For example, you can manage the floor plan, elevation view, section, perspective, and so on together. For example, you can easily place the drawings that make up a project together on a layout and print them together. When you save the project, all drawings of the building (floor plan, elevation views, sections, perspective) are saved in one file with a PRO extension. This project file contains all the information, including the textures and settings created by the user. Within the project, the floor plan of the building, the different views, the layouts are in a dynamic relationship with each other. By modifying either, the others will automatically follow the change. Managing your project is simple, easy to move from one machine to another because you only need to copy one file.

Project access rights
File open protection is a mechanism that restricts access to a project. Only one user can work on it at a time and other users can only open the file for reading. The ARCHLine.XP open protection system ensures that the plan can only be edited by the user who first opened the plan. Other users can open the same project over the network, but only in locked mode, in which they cannot save any changes.

It is common for one project detail to be needed in another project. Because multiple instances of ARCHLine.XP can be started at the same time, the designer can open multiple projects on one computer at a time and perform operations between them, such as copying a drawing part from one project to another.

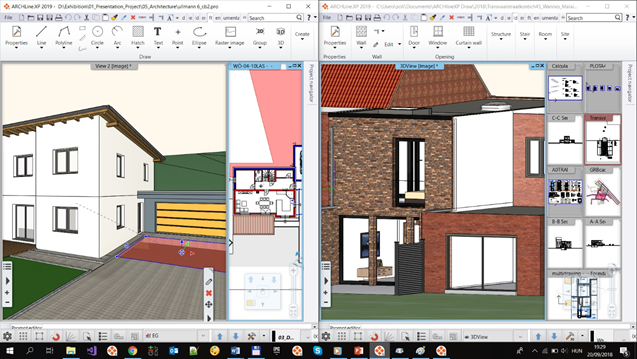

Multiple instances of ARCHLine.XP
Some users are so multitasking that they need everything to be done together or in parallel. ARCHLine.XP can bring them this kind of ease. It is possible to run multiple versions of ARCHLine.XP at the same time. Using multiple instances of ARCHLine.XP you can copy data from one project to another. To copy a part of your floor plan from one project to another, using multiple instances of ARCHLine.XP, simply use the copy and paste clipboard commands in Edit menu.

Note: This function is disabled in LT version.
