As a result of this command, changes to the project that affect the schedules update the schedules. Also, changes applied to the schedules affect the elements, they are connected to. You can switch on the Schedule Automatic Update function to make this proces automated for all schedules in the whole project.

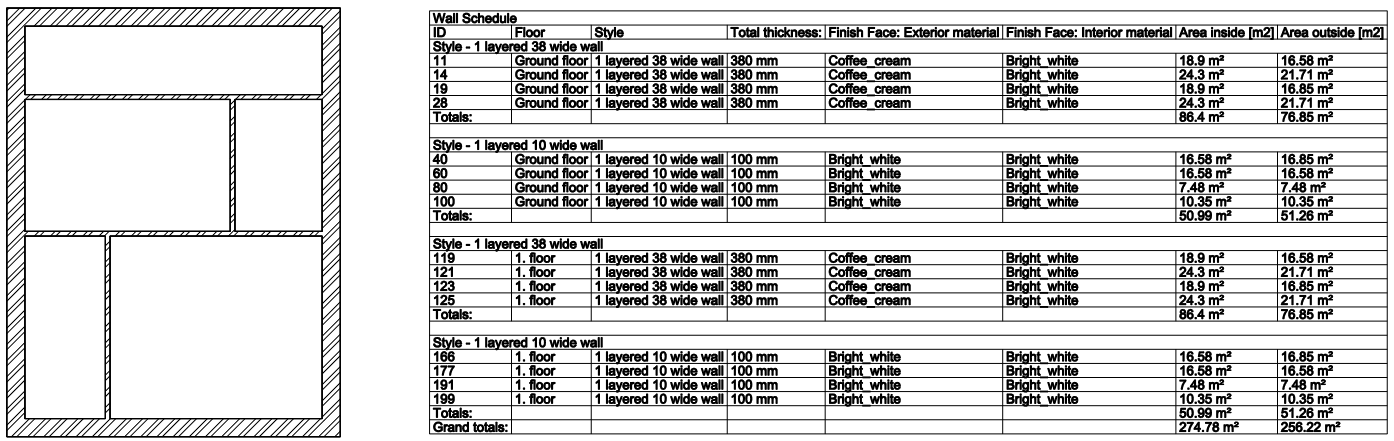

Example: If you change or delete a wall, the wall and room schedule having Footer and Grand Totals are updated accordingly.
Editing Cells in Schedules
You can edit some cells in a schedule by clicking in them. The properties of the elements (e.g. width, height, length, etc.), texts and materials (marked with paint bucket) can be edited. To finish editing in a cell, press Enter. The changes are applied to the appropriate element.
Example:
- If you have a door or window schedule and it contains the BIM parameter Manufacturer, click on the field and change the manufacturer name.
- If you wish to change the Exterior Material of a wall, click on the material name and select a new material from the Material dialog.
