Creating, deleting and renaming styles

How can you create, delete and rename styles?

We are going to show the answer through the walls' properties.

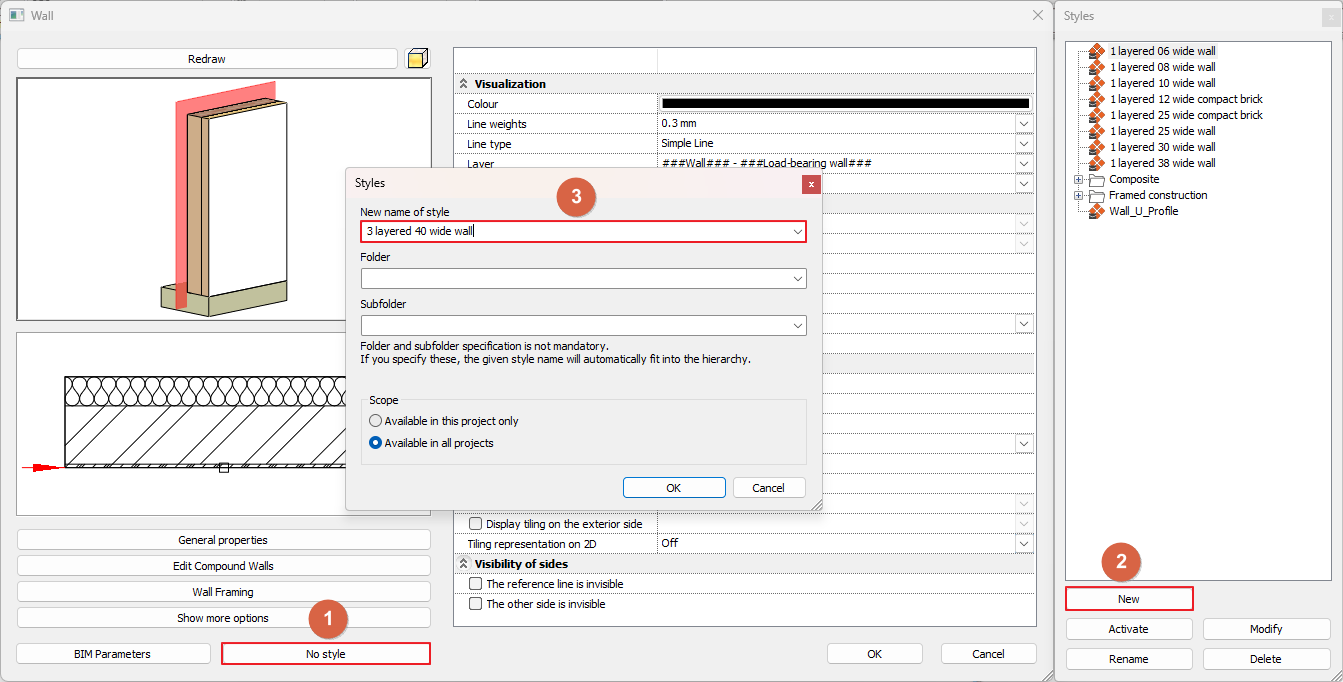

1. Enter the properties of the wall (right-click on the Wall icon and select the Property option or select the Ribbon bar / Building / Properties / Wall / Wall option), then set the desired parameters.

2. Click on the name of the style, then in the pop-up window save the style. You have just created your style in the program, which you can set to be available in all projects. You can sort the styles in a folder system as well. Click on the OK button to finalize the settings.

Your saved styles will appear with the symbol in the following picture:

3. Clicking on the Wall option all the styles appear, which you can choose from.

  Preset style: you cannot delete from the program.

  Own style: you can delete, rename and move it to another folder.

4. You can delete only the NON-SELECTED items from the styles. Right-click on style you want to delete and select the Delete option from the list.

5. Renaming and moving styles in folders. Right-click on the style and select the Sort in categories option. In the pop-up window you can change the name and the folders of the style.
