Tags are labels connected to the model. Tags are used to display information about an element on the floor plan.
You can create a new tag in the Tag Creation dialog.
Location of the command: Ribbon > Documentation > Tag > Create tags.

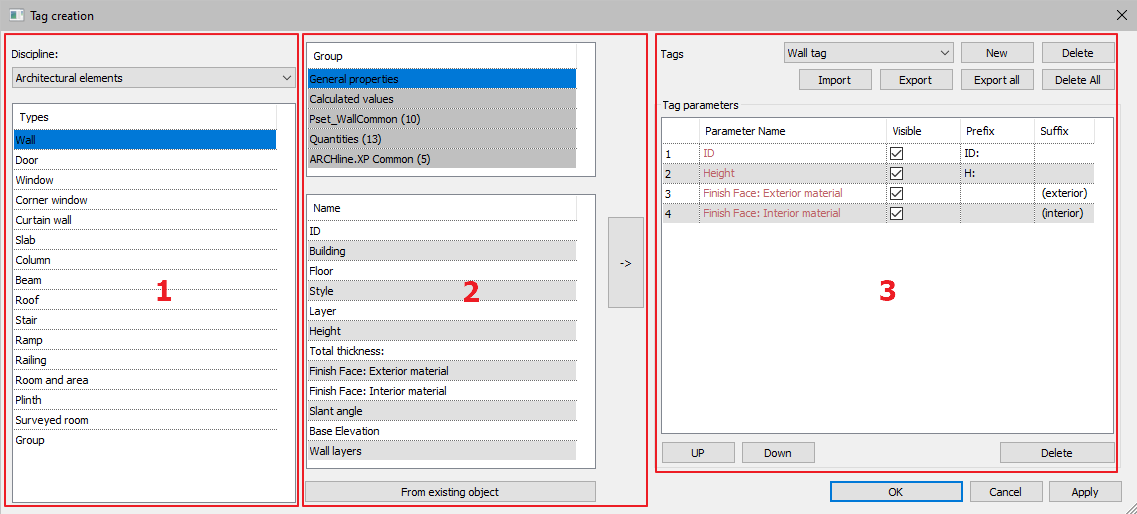

The dialog is separated into three columns. The first column displays automatically the type of element grouping as Architectural elements, Interior, Site and MEP design. Select the type you are going to assign the new tag. The second column displays the General propertes of the selected element, the calculated values and BIM parameter groups. Select a property from the list and click on the right arrow button to add it to the tag. The third column in the dialog displays the tag template.
In detail
The Create tags command allows users to create and manage custom tag definitions for building elements, drawing objects, and BIM components.
Tags display selected properties of model elements directly on drawings. They provide a convenient way to communicate important information such as dimensions, materials, element identification, construction phases, quantities, and other BIM parameters.
Unlike manually entered text annotations, tags retrieve their displayed values from the properties of the associated elements.
In ARCHLine.XP, tag definitions are organized by discipline and element type. Users can create different tag definitions for the same element category, select the parameters to display, customize their presentation, and reuse tag definitions through import and export commands.
The Create Tags system supports seven disciplines:
- Architectural elements
- Structural
- Interior
- Drafting
- Site
- MEP
- Reinforcement (Rebars)
1. Opening the Tag Creation Dialog
To create or modify a tag definition:
- Open the Documentation ribbon.
- Expand the Tags menu.
- Select Create tags.
The Tag creation dialog opens.
The dialog is divided into four main areas:
- Discipline and Types — Select the discipline and element category.
- Group and Name — Browse the available element properties.
- Tags — Create, select, import, export, or delete tag definitions.
- Tag parameters — Define the parameters displayed by the selected tag.
2. Selecting a Discipline
The Discipline drop-down list determines which element categories and properties are available for creating tags.
ARCHLine.XP supports the following disciplines:
| Discipline | Typical application |
|---|---|
| Architectural elements | Walls, doors, windows, slabs, roofs, rooms, and other architectural components |
| Structural | Structural beams, columns, slabs, walls, foundations, and reinforcement |
| Interior | Furniture, cabinets, lighting, finishes, and interior objects |
| Drafting | 2D drawing entities, coordinates, and dimensions |
| Site | Terrain and building gross volume |
| MEP | Pipes, ducts, conduits, cable trays, and MEP objects |
| Rebars | Reinforcement-related elements, listed under the Structural discipline |
The Types list changes according to the selected discipline.
Suggested image: Tags_Create_Discipline_Selector.png — Discipline selection.
2.1 Architectural elements
Select Architectural elements to create tags for architectural BIM components.
Supported element types include:
- Wall
- Door
- Window
- Curtain wall
- Slab
- Column
- Beam
- Roof
- Stair
- Ramp
- Railing
- Room and area
- Surveyed room
- Shaft Opening
For example, a wall tag can display:
- Wall height
- Total wall thickness
- Finish materials
- Base elevation
- Wall layer composition
- Density
- Construction phase
The available parameters depend on the selected element type and property group.
Example: A wall tag displaying height, total thickness, and phase can be used to identify construction requirements directly on a floor plan.
2.2 Structural
Select Structural to create tags for structural and reinforcement-related elements.
Supported types shown in the dialog include:
- Plinth
- Truss
- Rebars
- Structural beam
- Structural column
- Structural slab
- Structural wall
- Foundation
Structural tags can display properties such as:
- Element ID
- Floor
- Style
- Object name
- Base elevation
- Volume
Example: A plinth tag can display its identification, base elevation, and volume for structural documentation.
2.3 Interior
Select Interior to create tags for interior design components.
Supported element types include:
- 3D Shape
- Brise soleil
- Cabinet
- Cabinet Door
- Countertop
- Curtain
- Electrical Accessory
- Grid ceiling
- Gutter
- IFC Element
- LED lighting
- Light sources
- Loft
- Luminous text
- Moulding
- Object
- Picture on wall
- Plain ceiling
- Roman blind
- Smart Object assembly
- Smart Object parts
- Tiling
- Venetian blind
- Vertical blind
Interior tags can display:
- Element ID
- Floor
- Name
- Width
- Depth
- Height
- Top material
- Bottom material
- Side material
Example: A 3D Shape tag can display dimensions and material information, making it useful for furniture documentation and interior schedules.
2.4 Drafting
Select Drafting to create tags for 2D drawing entities and annotation objects.
Supported types include:
- Point
- Line
- Polyline
- Circle
- Arc
- Ellipse
- Elliptic arc
- Spline
- Text
- Hatch
- Group
- Image
- Length dimension
- Door dimension
- Window dimension
- Elevation dimension
- Label dimension
- Angle dimension
- Radius and diameter dimension
- Area dimension
Available parameters depend on the selected drawing entity.
For example, point-related parameters include:
- X coordinate
- Y coordinate
Other available properties may include geometric measurements such as size and angle.
Example: A Point tag can display the X and Y coordinates of a selected point.
This is useful for coordinate annotation and technical drawings.
2.5 Site
Select Site to create tags for site-related elements.
Supported types include:
- Terrain
- Building gross volume
Terrain tags can display information such as:
- Element ID
- Horizontal surface elevation
- Terrain surface material
- Volume
- Minimum height
- Maximum height
Example: A Terrain tag can be used to communicate elevation and volume information in site documentation.
2.6 MEP
Select MEP to create tags for mechanical, electrical, and plumbing elements.
Supported types include:
- Pipe
- Duct
- Conduit
- Cable tray
- MEP Object
The available parameters depend on the selected MEP element.
For pipes, parameters include:
- Profile
- Discipline
- Relative elevation
- Diameter
- System type
- Piping material
- Abbreviated system type
Example: A Pipe tag can display the discipline, diameter, and system type of a pipe.
This helps identify MEP components directly on coordination drawings.
3. Selecting Property Groups
After selecting the discipline and element type, the Group list displays the available property groups.
These groups organize the parameters that can be included in the tag.
Depending on the selected element, the list may include:
| Property group | Description |
|---|---|
| Common properties | General properties shared by elements |
| General properties | Properties specific to the selected element category |
| Calculated values | Values calculated from element geometry or other properties |
| Pset_* | IFC property sets associated with the element |
| Quantities | Quantity-related properties |
| ARCHLine.XP Common | Common ARCHLine.XP properties |
For example, when the Wall type is selected, the property groups may include:
- Common properties
- General properties
- Calculated values
- Pset_WallCommon
- Quantities
- ARCHLine.XP Common
Selecting a property group displays its available parameters in the Name list below.
IFC Property Sets
IFC property sets, such as Pset_WallCommon, provide standardized BIM properties that can be used in tag definitions.
This makes it possible to include IFC-related information in drawing annotations.
The exact available properties depend on the selected element category and its property definitions.
4. Selecting Parameters
The Name list displays the available parameters from the selected property group.
To add a parameter to the tag:
- Select the required discipline.
- Select the element type.
- Select a property group.
- Find the required parameter in the Name list.
- Select the parameter.
- Click the → button to add it to the Tag parameters table.
Repeat these steps to add additional parameters.
Searching for parameters
Use the Search field to find parameters by name.
This is particularly useful when an element has many available properties or IFC property sets.
From existing object
The From existing object button provides an additional method for obtaining parameters from an existing model object.
This option is useful when working with properties associated with a particular object rather than selecting only from the general property lists.
5. Creating a New Tag Definition
Multiple tag definitions can be created for the same element type.
For example, a wall may require separate tags for:
- General identification
- Dimensions
- Materials
- Construction phase
- IFC properties
- Quantity information
To create a new tag definition:
- Open Documentation → Tags → Create tags.
- Select the required Discipline.
- Select the element category from Types.
- Click New in the Tags section.
- Enter a name for the new tag definition.
- Select the required property groups and parameters.
- Add the parameters to the Tag parameters table using the → button.
- Configure their visibility, order, prefixes, and suffixes.
- Click Apply or OK to save the definition.
The new tag definition can then be selected for the corresponding element category.
Managing tag definitions
The following commands are available:
| Command | Function |
|---|---|
| New | Creates a new tag definition |
| Delete | Deletes the selected tag definition |
| Import | Imports tag definitions |
| Export | Exports the selected tag definition |
| Export all | Exports all applicable tag definitions |
| Delete All | Deletes all applicable tag definitions |
Import and export provide a convenient way to transfer and reuse tag definitions.
Recommendation: Export customized tag definitions before making extensive changes or deleting existing definitions.
6. Configuring Tag Parameters
The Tag parameters table defines the content and presentation of the selected tag.
Each row represents one parameter included in the tag definition.
The table contains the following columns:
| Column | Description |
|---|---|
| Parameter Name | Name of the property included in the tag |
| Visible | Determines whether the parameter is displayed |
| Prefix | Optional text displayed before the parameter value |
| Suffix | Optional text displayed after the parameter value |
Visibility
Use the Visible checkbox to enable or disable the display of individual parameters.
A parameter can remain part of the definition even when its display is disabled.
Prefix and Suffix
Prefixes and suffixes allow additional descriptive text to be displayed with parameter values.
For example, a wall height parameter can be configured as:
- Parameter: Height
- Prefix: H =
- Value: 3.06 m
Result: H = 3.06 m
Similarly, a pipe diameter may be displayed with a descriptive prefix such as:
Diameter: 0.10 m
The actual value is retrieved from the associated model element.
Changing parameter order
Use the Up and Down buttons to change the order of the parameters.
The parameter order determines the sequence in which the values are displayed in the tag.
Removing parameters
Select a parameter in the Tag parameters table and click Delete to remove it from the tag definition.
This does not delete the corresponding property from the BIM element.
7. Example: Creating a Custom Wall Tag
This example demonstrates how to create a tag that displays wall height, thickness, and construction phase.
Step 1 — Select the element category
Open Create tags and select:
- Discipline: Architectural elements
- Type: Wall
Step 2 — Create the tag
Click New and create a tag named:
Wall dimensions and phase
Step 3 — Add parameters
Select the appropriate property groups and add:
- Height [m]
- Total thickness [m]
- Phase
Use the → button to add each parameter to the Tag parameters table.
Step 4 — Configure visibility
Enable the Visible checkbox for all three parameters.
Step 5 — Arrange the parameters
Use Up and Down to arrange them in the required order.
Step 6 — Save the definition
Click OK to save the new tag.
Step 7 — Place the tag
- Open the floor plan.
- Select Documentation → Tags → Place tags.
- Select a wall.
- Choose the required tag placement direction and leader-line option.
- Position the tag and complete the placement.
The tag can display information similar to:
3.06 m
0.381 m
Existing
The displayed values correspond to the properties of the selected wall.
8. Example: Creating an MEP Pipe Tag
MEP tags are particularly useful for coordination and technical documentation.
To create a pipe tag:
- Open Create tags.
- Select MEP as the discipline.
- Select Pipe.
- Click New and enter a suitable tag name.
- Add the following parameters:
- Discipline
- Diameter
- System type
- Enable their visibility.
- Arrange the parameters in the required order.
- Save the definition.
The resulting tag can display the pipe's discipline, diameter, and system classification.
9. Importing and Exporting Tag Definitions
Custom tag definitions can be reused through the import and export commands.
Export
Use Export to save the selected tag definition for reuse.
Export all
Use Export all to export all applicable tag definitions.
Import
Use Import to load previously exported tag definitions.
This workflow is useful for:
- Standardizing annotation conventions
- Reusing tag definitions across projects
- Sharing tag configurations between users
- Preparing consistent office documentation standards
10. Updating Existing Tags
After modifying a tag definition, existing tags can be refreshed without manually recreating them.
Use:
Documentation → Tags → Update
or
Documentation → Tags → Update all
The update commands refresh both:
- Element parameter values: Changes to the properties of the associated BIM elements.
- Tag definition changes: Changes to the parameters and configuration of the tag definition.
For example, if a tag definition is modified to display an additional parameter, the change can be applied to existing tags using the update commands.
This ensures consistency between tag definitions, BIM model properties, and drawing annotations.
11. Recommended Practices
For consistent documentation, the following practices are recommended:
- Create descriptive names for tag definitions.
- Use separate tag definitions for different documentation purposes.
- Include only the parameters required for the drawing.
- Use standardized IFC properties when appropriate.
- Keep parameter order consistent across similar tags.
- Use prefixes and suffixes to make displayed values easier to understand.
- Export frequently used tag definitions for reuse.
- Update existing tags after modifying BIM properties or tag definitions.
Summary
The Create tags command in ARCHLine.XP provides a flexible, discipline-based system for creating customized BIM annotations.
Users can define tag types for architectural, structural, interior, drafting, site, and MEP elements, select properties from different parameter groups, configure their display, and manage reusable tag definitions.
With support for IFC property sets, calculated values, parameter ordering, visibility controls, and import/export operations, the system helps create consistent and informative technical documentation.
Together with the Place tags, Update, and Update all commands, custom tags provide a practical way to display and maintain BIM information directly on drawings.
Comments
0 comments
Article is closed for comments.
