Axonometric view

Axonometry is a method for visual representation of spatial objects in a plane. In ARCHLine.XP, the 3D model is displayed in axonometric view by default. It is not possible to save axonometric views. In this view, the 3D model can only be rotated around a rotation center, not like the perspective view.

Activating axonometric view
There are several ways to switch from perspective view to axonometric view:

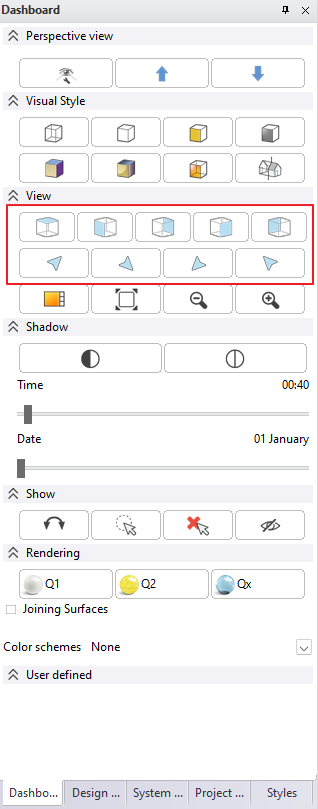

• Click on the direction icons on the Dashboard.

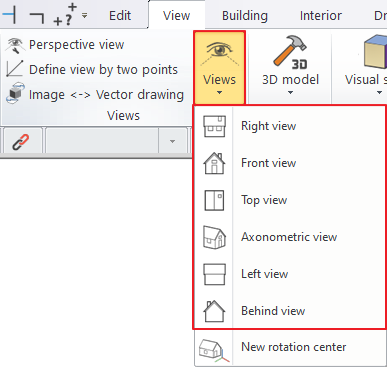

• Click on the Ribbon bar > View > Views and select the desired axonometric view from the list.

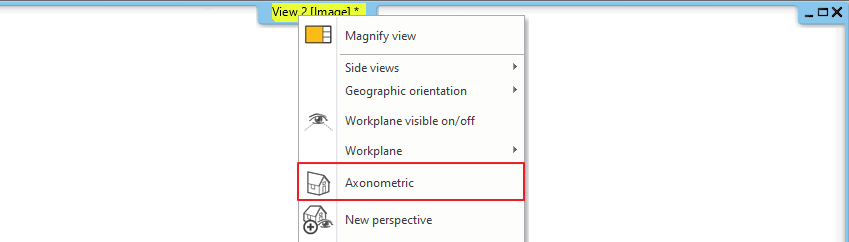

• Click on the acite view's name and select the Axonometric option.
