Inserting images

You can insert all sorts of images to plot layout, from a photorealistic rendering of the project to a branding element like a logo in a stamp.

1. Select Drafting - Raster Image - Place. The Open dialog box appears.
2. Select the file you want to insert and press Open.

Note: You can also drag and drop an image from Windows File Explorer.

The Image dialog appears where you can add BIM parameters to the image as well. Press Ok to place the image on the drawing.

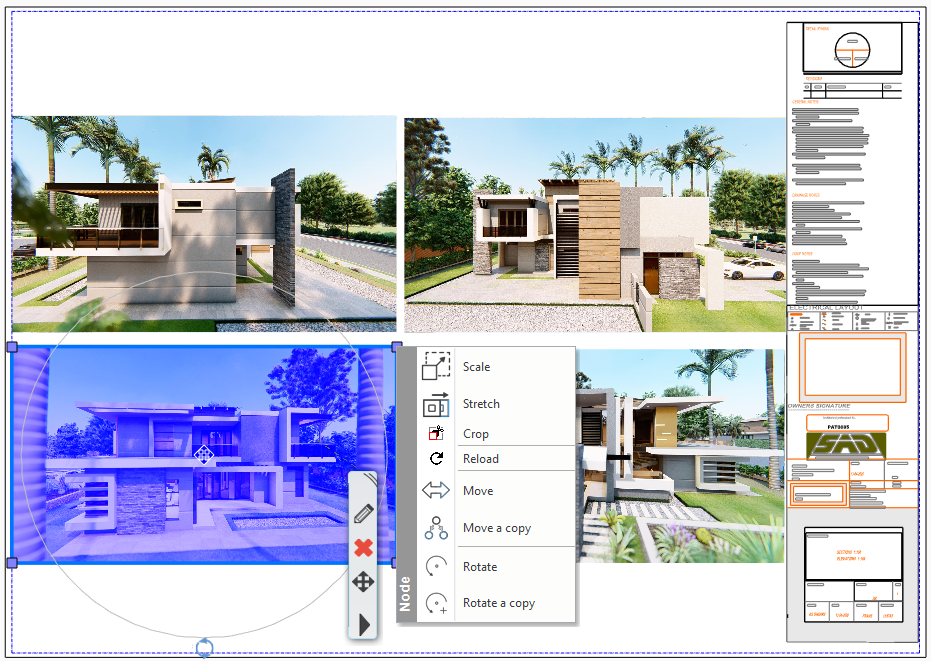

When the image appears in the drawing area you can move, rotate, or scale the image by clicking and dragging the bounding box controls.
