Schedule with Images

Schedules with graphical information can be created by inserting model images.

Location: Documentation > Schedule

This feature allows you to display an image in the schedule cell.

For most item types, you can add one of the following properties:
-Image(for model element)

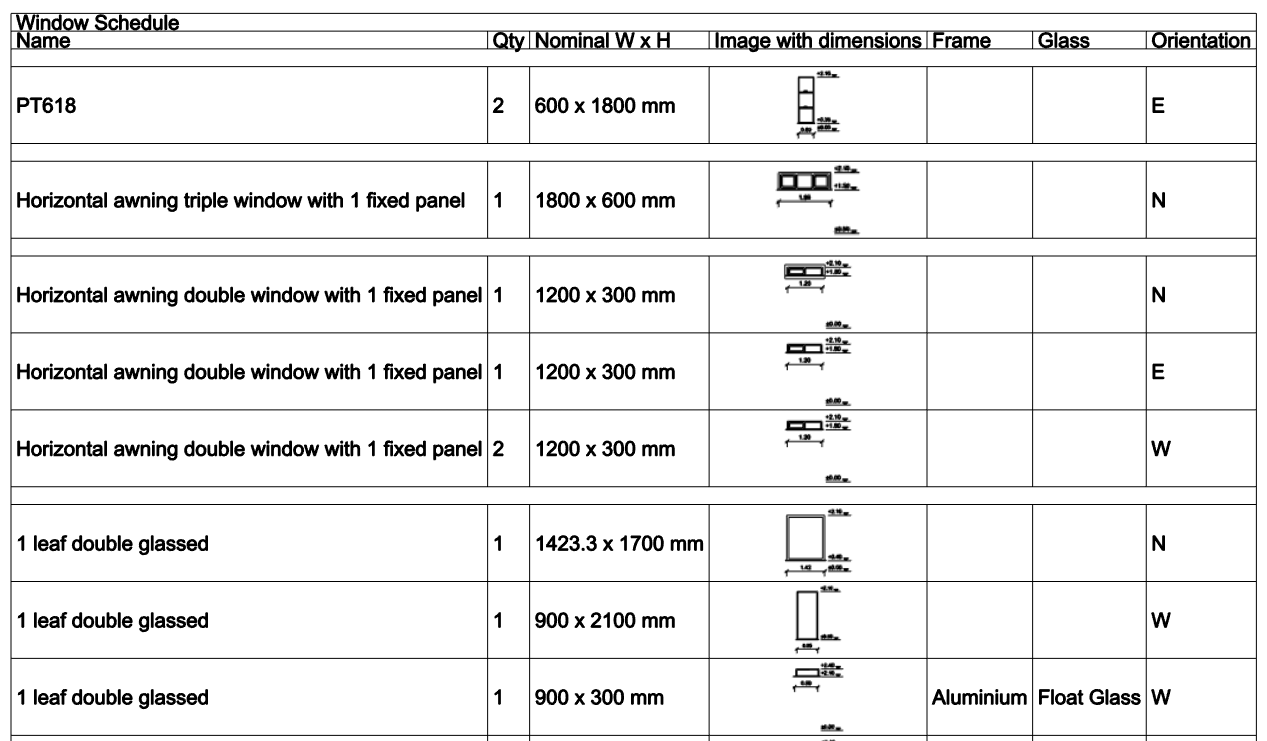

-Image with dimension (Image with width / height values)

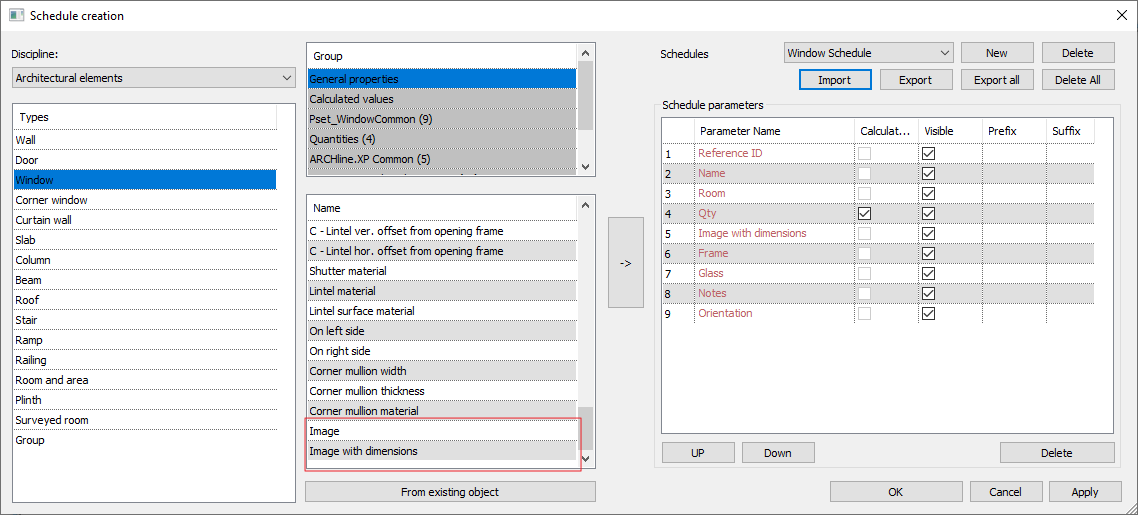

Click the General Properties field in the Group list and then select the Image or Image with dimensions field in the Name list. Press the arrow -> button to insert into Schedule Parameters.

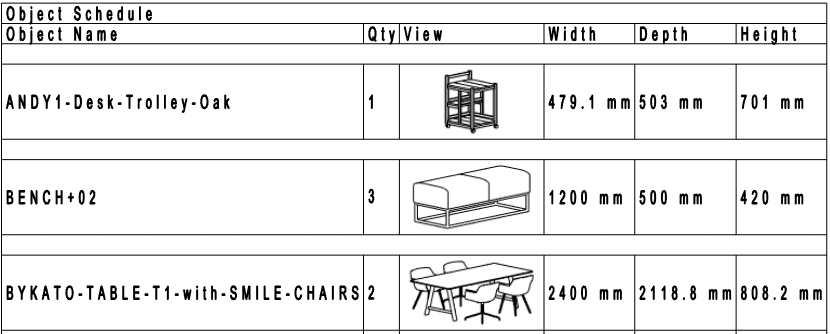

The images will show once the schedule is placed on the view.

The image height is specified in Place Schedule dialog in as multiplier of character height.
