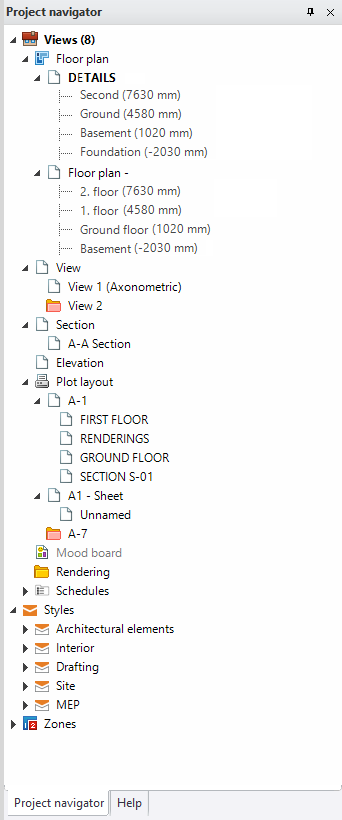

The Project navigator shows the hierarchy for Floor plans, Views, Sections, Elevations, Plot layout sheets, Rendering images, Schedules, Styles and other parts of the current project.
The views currently in the background are displayed with red icon.
Operation |
what to do |
|---|---|
|
Open a background view |
click the name of the view, or right-click the name and click Make visible. The active view name displays in bold. |
|
Select a sheet on Plot Layout |
Click the sheet name. |
|
Add a new Floor plan, View or Plot Layout |
Right-click the name and click Create new. |
|
Rename a sheet |
right-click the name and click Rename. |
|
Create a new sheet |
right-click the Plot Layout branch, and click Create new. |
| Close a view (background state) | right-click the view name, and click Hide it. |
| Place a view on Plot Layout | drag the view name onto the sheet in the drawing area. |
| Refresh a schedule | right-click the name and click Refresh. |
|
Rename |
right-click the name and click Rename. |
|
Section, Elevation Settings |
right-click the name and click Settings. |
|
Delete a floor plan, view |
right-click the view name and click Delete. |
|
Change LOG level |
click the view name, and change Level of Geometry settings. |
|
expand or collapse branches in the Project navigator |
click > to expand, and click again to collapse. |
|
Find referring symbol |
right-click the Section, Elevation or Schedule name, and click Find Referring symbol. |
Changes:
Plot Layout,
Schedule instances
Background views
