Create wall with front view profile

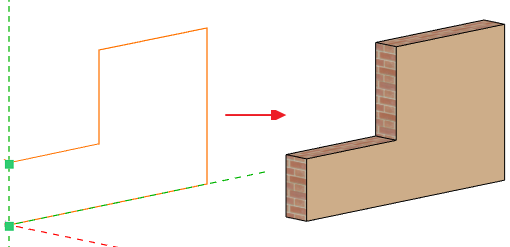

Wall drawing using the frontal profile in 3D view

You can create a wall based on the profile drawn in the current 3D vertical work plane.
The reference line for the new wall is created in the specified plane and the wall is forward or backward.

Choose Building / Wall / Wall / More / Draw Wall by Front Profile

1. Use the Profile Editor commands to draw the desired profile.

2. Press Enter, the tool creates the wall with the default wall properties.
