Structural tools

Structural design improvements focus on integration to complement and prepare architectural designs.
ARCHLine.xP 2026 is capable of creating structural models and transferring them to external design software in addition to architectural modeling.

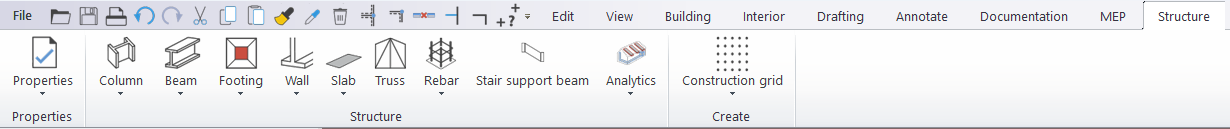

The Structure tab in ARCHLine.XP’s ribbon bar provides a streamlined, dedicated workspace for managing all structural design tools within a single, organized interface. It groups together the most essential commands for creating structural elements such as columns, beams, plinths, walls, slabs, foundations, trusses, rebar assemblies and stair supports. The redesigned layout improves workflow efficiency by placing frequently used tools in a logical sequence, making structural modeling faster and more intuitive.

Note: Structural tool is available in Professional version only.

Command location: Ribbon Menu > Structure

video

The architectural functions collected on the Structure tab support a clean and transparent design workflow. The following commands are available:

• Column: A vertical load-bearing structural element that transfers loads from the upper parts of the building down to the foundation.

• Beam: A horizontal load-bearing structural element that transfers loads within the building from one support point to another.

• Pad Footing (Isolated Footing): A type of foundation that transfers the load of an individual column directly to the soil.

• Wall: A vertical structural element that can serve multiple functions within a building (load-bearing wall, partition wall, exterior wall, interior wall).

• Slab: A horizontal load-bearing structural element that separates the building levels.

• Foundation: The lowest structural part of the building, responsible for safely transferring the total weight of the building and usage-related loads to the ground.

• Truss: A lightweight yet high-load-capacity structural system suitable for spanning large distances.

• Rebar: Purpose-made bars or meshes used to reinforce reinforced concrete structures.

• Stair – Stringer Beam: An inclined or horizontal load-bearing structural element that transfers the loads of stair treads, stair flights, or landings to the main structural system.

• Analytics – Analytical Model Representation: A toggle used to display or hide structural analytical models and connections.

• Architectural Grid: A system of lines and axes that helps organize the building floor plan and structural elements.

These structural elements are displayed in the program in the same way as their traditional counterparts; however, they represent a significant advancement from a structural and BIM perspective. Additional parameters can be assigned to structural elements, integrating their structural role into the model and supporting later calculations and validations.

Structural – Analytical Model On / Off

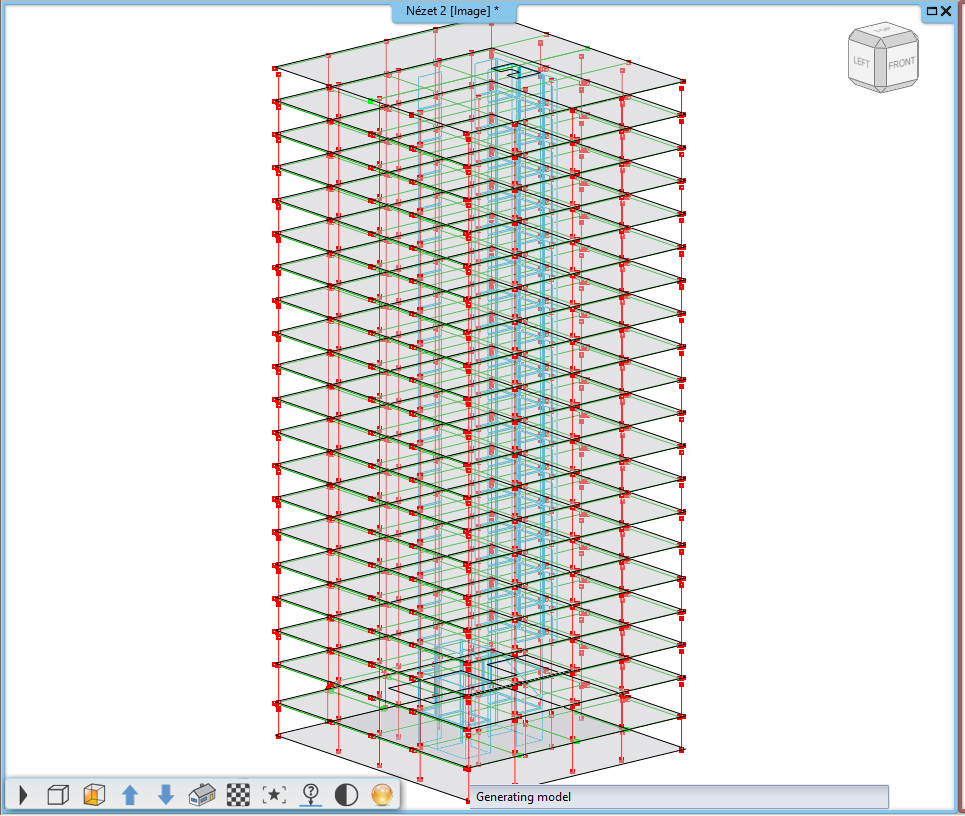

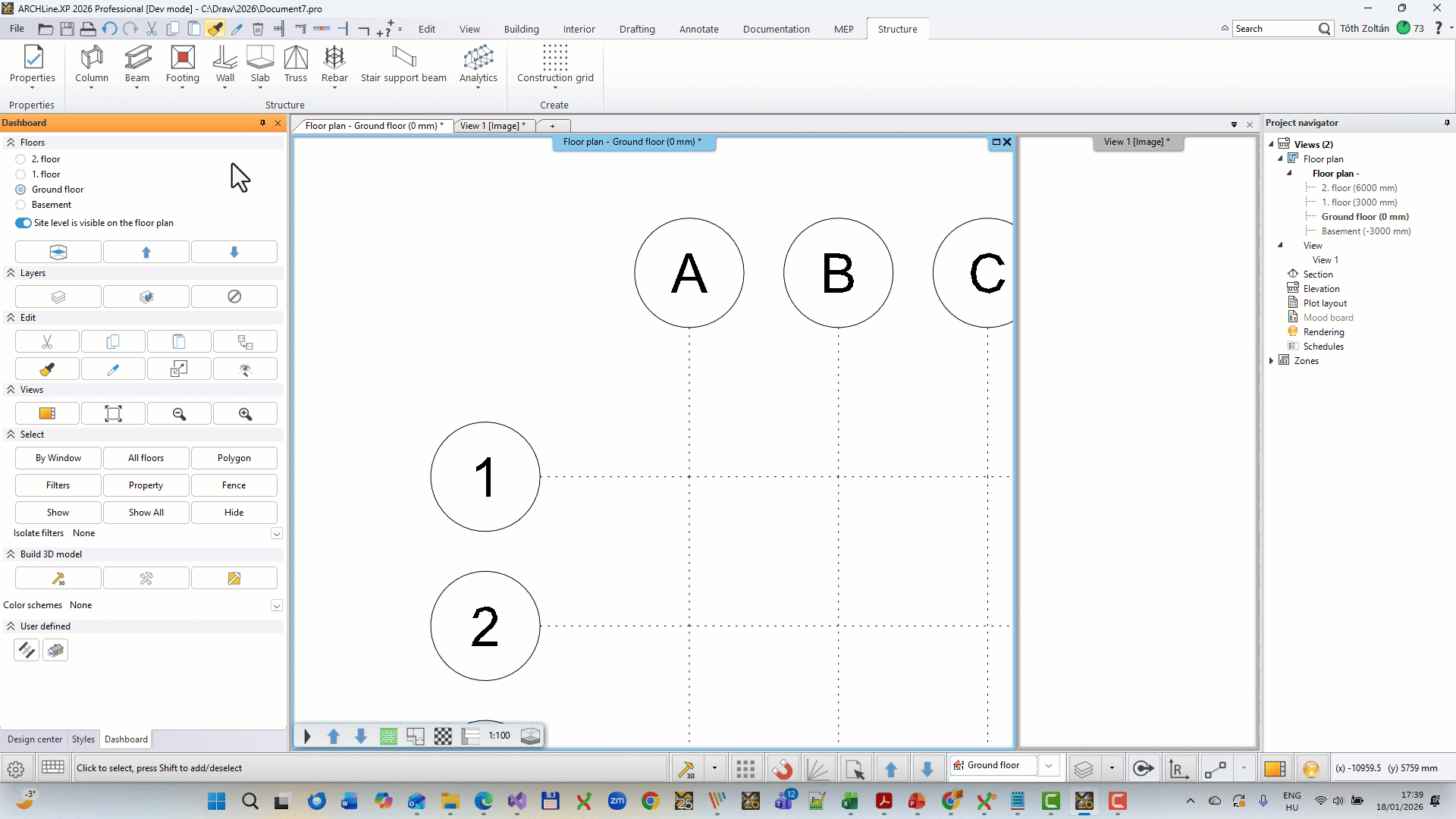

When Analytical Model is enabled, the program automatically displays the analytical nodes and axes of the structural element. This video displays how to edit and display analytical axes.

Analytical Model is disabled	Analytical Model is enabled

Structural Connections On / Off

When Structural Connections is enabled, the program automatically displays the connection points of structural elements.

• Green indicates correct connections

• Blue indicates general connections

• Red indicates incorrect connections where correction is required
