Custom 2D symbols for doors

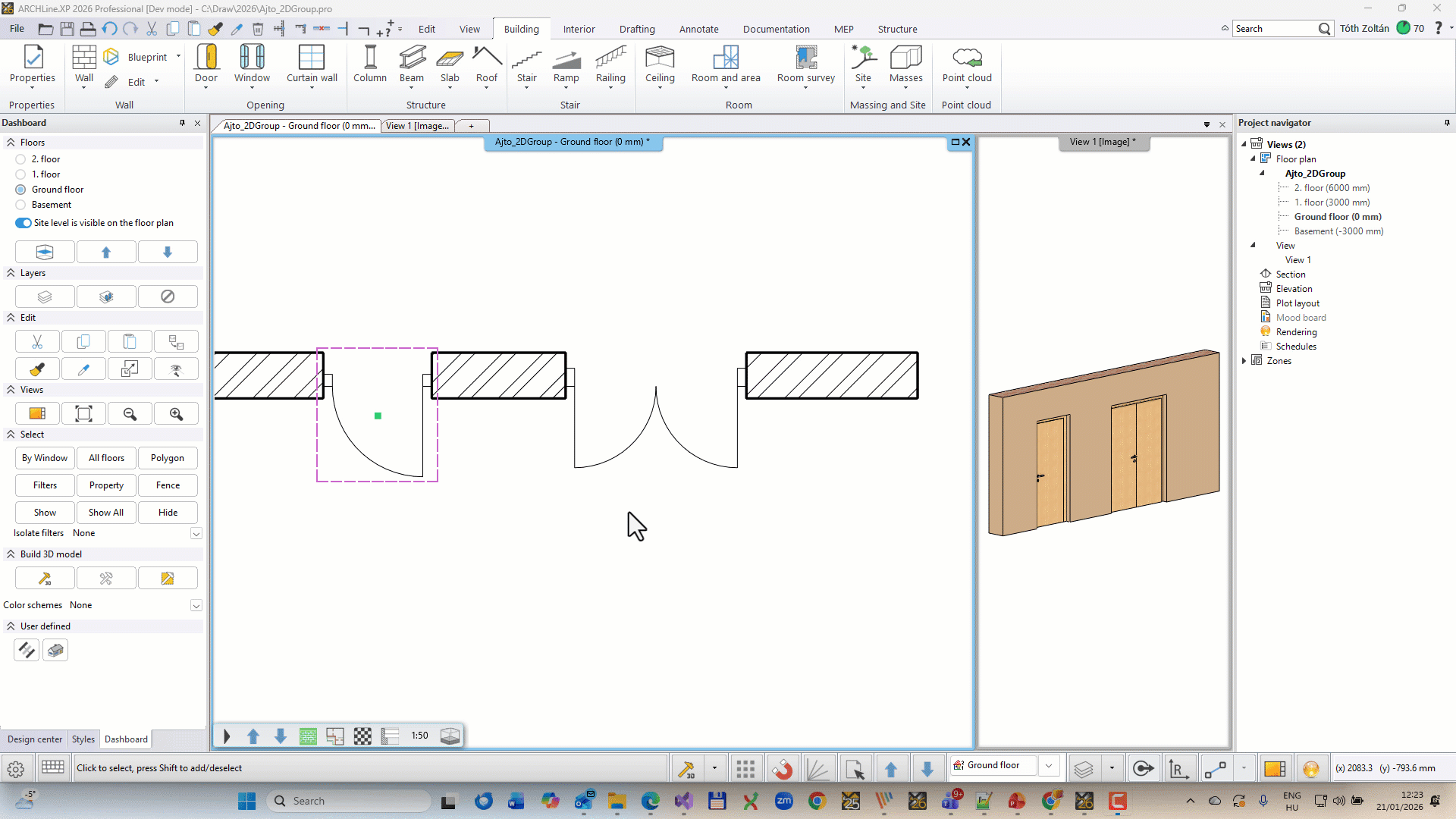

In ARCHLine.XP, the 2D floor plan representation of doors can be fully customized. This allows you to assign a selected 2D outline, opening line, or graphic symbol from the available list to a door, ensuring that the floor plan more accurately reflects design intent or standard conventions. The assigned 2D shape automatically moves with and aligns to the door, making its use fast and reliable. This feature helps standardize project documentation and provides a more precise, professional floor plan appearance.

Command location: Right Click on Door - Edit - Change 2D group, Restore 2D group

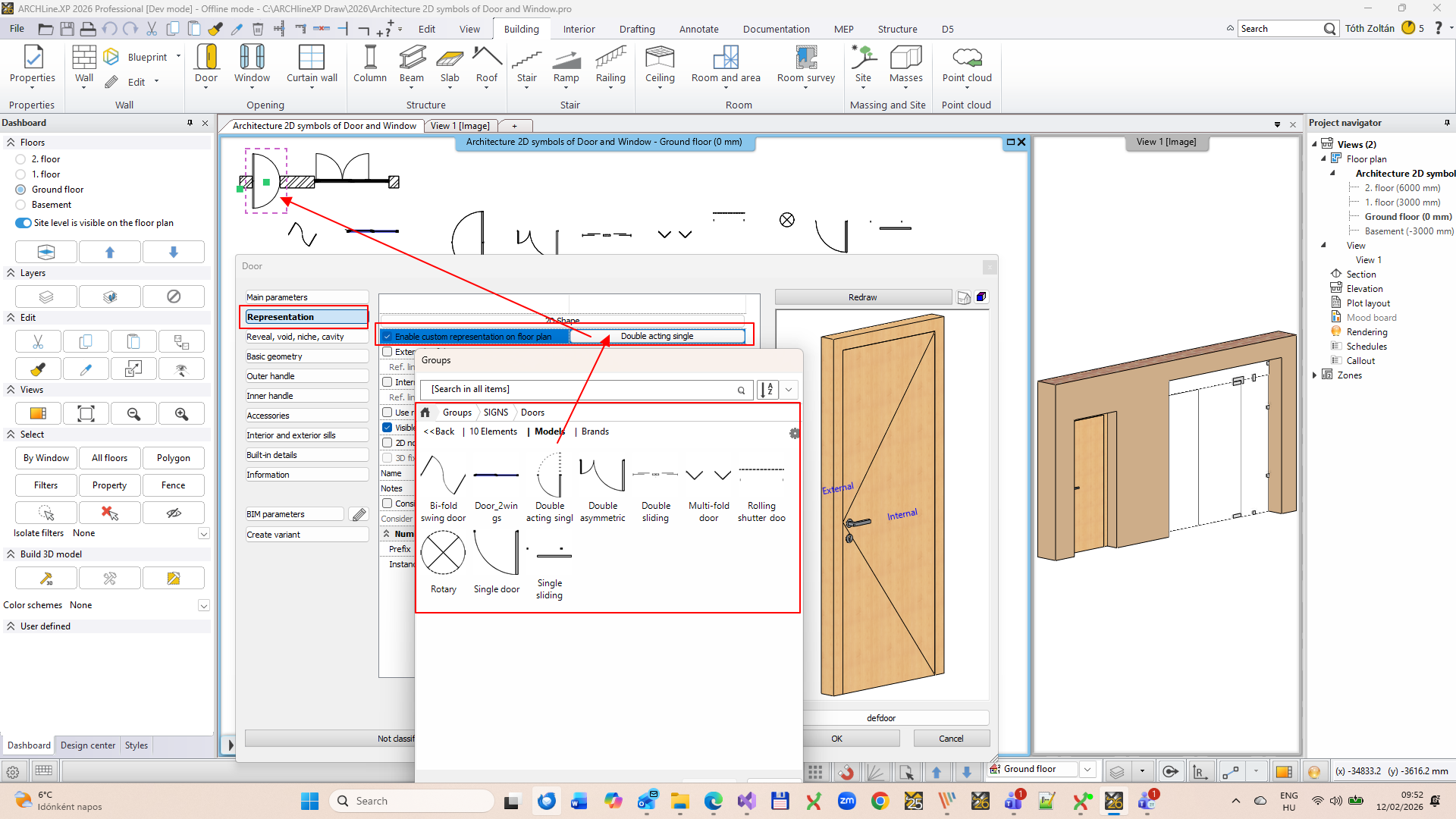

You can assign custom 2D group floor plan representation in Door Property dialog - Representation - Enable custom representation on floor plan.

The program will then ask you whether you want to keep the original opening direction symbol with the new shape.
