This article provides a conceptual overview of the Scan-to-BIM process, including importing scan data, preparing Point Clouds, extracting floor plans, and reconstructing BIM models.

The purpose of this article is to help users understand:

• what a Point Cloud is,
• how Point Clouds are created,
• how Point Cloud data is used in architectural workflows,
• and how ARCHLine.XP supports Point Cloud-based modeling and reconstruction.

This article is intended for beginner and intermediate users who are starting to work with Point Cloud projects in ARCHLine.XP.

What is a Point Cloud?

A Point Cloud is a collection of millions or even billions of measured spatial points that represent the shape and surface of real-world objects and environments.

Each point contains:

• X, Y, and Z coordinates,
• optional RGB color information,
• optional intensity values,
• and sometimes additional metadata.

Point Clouds are typically generated using:

• laser scanners,
• LiDAR systems,
• photogrammetry,
• drone scanning,
• or mobile scanning technologies.

Unlike traditional CAD geometry, Point Clouds do not contain intelligent BIM elements such as walls, slabs, or doors. Instead, they represent raw spatial measurements of existing buildings or environments.

Point Clouds are primarily used for:

• renovation projects,
• building documentation,
• heritage preservation,
• as-built verification,
• Scan-to-BIM workflows,
• and reconstruction of existing structures.

Point Cloud Technologies

Laser Scanning

Laser scanners measure distances by emitting laser beams and calculating the reflection time. This method produces highly accurate spatial measurements.

Laser scanning is commonly used for:

• architectural surveys,
• industrial facilities,
• infrastructure projects,
• and interior scanning.

Advantages:

• high precision,
• dense datasets,
• reliable geometry capture.

Typical output formats:

• E57,
• LAS/LAZ,
• RCP/RCS,
• PLY.

LiDAR Scanning

LiDAR (Light Detection and Ranging) is a scanning technology widely used in:

• aerial mapping,
• terrain scanning,
• infrastructure documentation,
• and mobile scanning systems.

LiDAR systems are frequently mounted on:

• drones,
• vehicles,
• mobile devices,
• or handheld scanners.

LiDAR Point Clouds often contain:

• elevation information,
• intensity values,
• and georeferenced coordinates.

Photogrammetry

Photogrammetry creates Point Clouds from overlapping photographs using image processing algorithms.

This method is commonly used for:

• facade reconstruction,
• terrain modeling,
• heritage documentation,
• and drone-based workflows.

Advantages:

• lower hardware cost,
• flexible image capture,
• realistic color representation.

Limitations:

• lower geometric precision compared to laser scanning,
• sensitivity to lighting conditions,
• higher noise levels.

Point Cloud Workflows in ARCHLine.XP

ARCHLine.XP supports multiple Point Cloud workflows ranging from simple visualization to advanced BIM reconstruction.

Typical workflows include:

• Point Cloud visualization,
• floor plan extraction,
• wall detection,
• line detection,
• manual tracing,
• semi-automatic BIM reconstruction,
• and plane-based geometry recognition.

Point Clouds can be used as:

• visual references,
• modeling guides,
• geometric references,
• or reconstruction sources.

Typical Scan-to-BIM Workflow

A typical Point Cloud workflow in ARCHLine.XP consists of the following stages:

1. Import Point Cloud

The Point Cloud dataset is imported into ARCHLine.XP using supported file formats such as:

• E57,
• LAS,
• PLY,
• or RCP/RCS.

During import, users can:

• position the scan,
• define coordinates,
• adjust scaling,
• and prepare the dataset for processing.

2. Optimize and Filter the Dataset

Large Point Clouds usually require optimization before modeling.

Typical preparation steps:

• cropping unnecessary regions,
• reducing point density,
• hiding unwanted scan areas,
• and improving performance.

Optimization improves:

• navigation speed,
• display responsiveness,
• and detection accuracy.

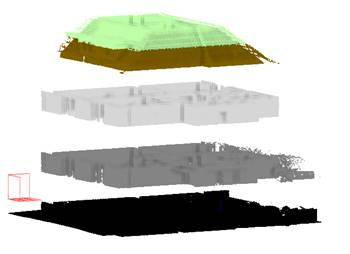

3. Adjust Floor Structure

For multi-story projects, floor levels are aligned with the scanned building geometry.

This step helps:

• organize the project,
• simplify slice creation,
• and improve floor plan extraction workflows.

Proper floor structure adjustment is essential before wall detection or BIM reconstruction.

4. Create Filtered/Slice Views

Horizontal or vertical slices are generated from the Point Cloud.

Filtered/Slice views are commonly used for:

• floor plan extraction,
• wall detection,
• line detection,
• and tracing workflows.

Users can control:

• slice thickness,
• height position,
• and visibility.

5. Detect Architectural Geometry

ARCHLine.XP supports multiple geometry extraction workflows.

Examples:

• wall detection from floor plans,
• line detection,
• plane detection,
• and automatic surface recognition.

These tools help accelerate reconstruction workflows.

6. Reconstruct the BIM Model

The detected geometry is converted into BIM elements such as:

• walls,
• slabs,
• roofs,
• columns,
• and reference objects.

Users can combine:

• automatic recognition,
• semi-automatic tools,
• and manual modeling techniques.

7. Refine and Validate the Model

The final BIM model is reviewed and refined.

Typical refinement tasks:

• correcting inaccuracies,
• adjusting dimensions,
• validating alignment,
• and improving BIM element quality.

Main Point Cloud Concepts

Slice Views

Slice views display a thin horizontal or vertical section of the Point Cloud.

They are commonly used for:

• floor plan extraction,
• wall tracing,
• and geometry analysis.

Clipping

Clipping temporarily hides parts of the Point Cloud to improve visibility and focus on specific areas.

Common clipping methods:

• box clipping,
• section clipping,
• and region isolation.

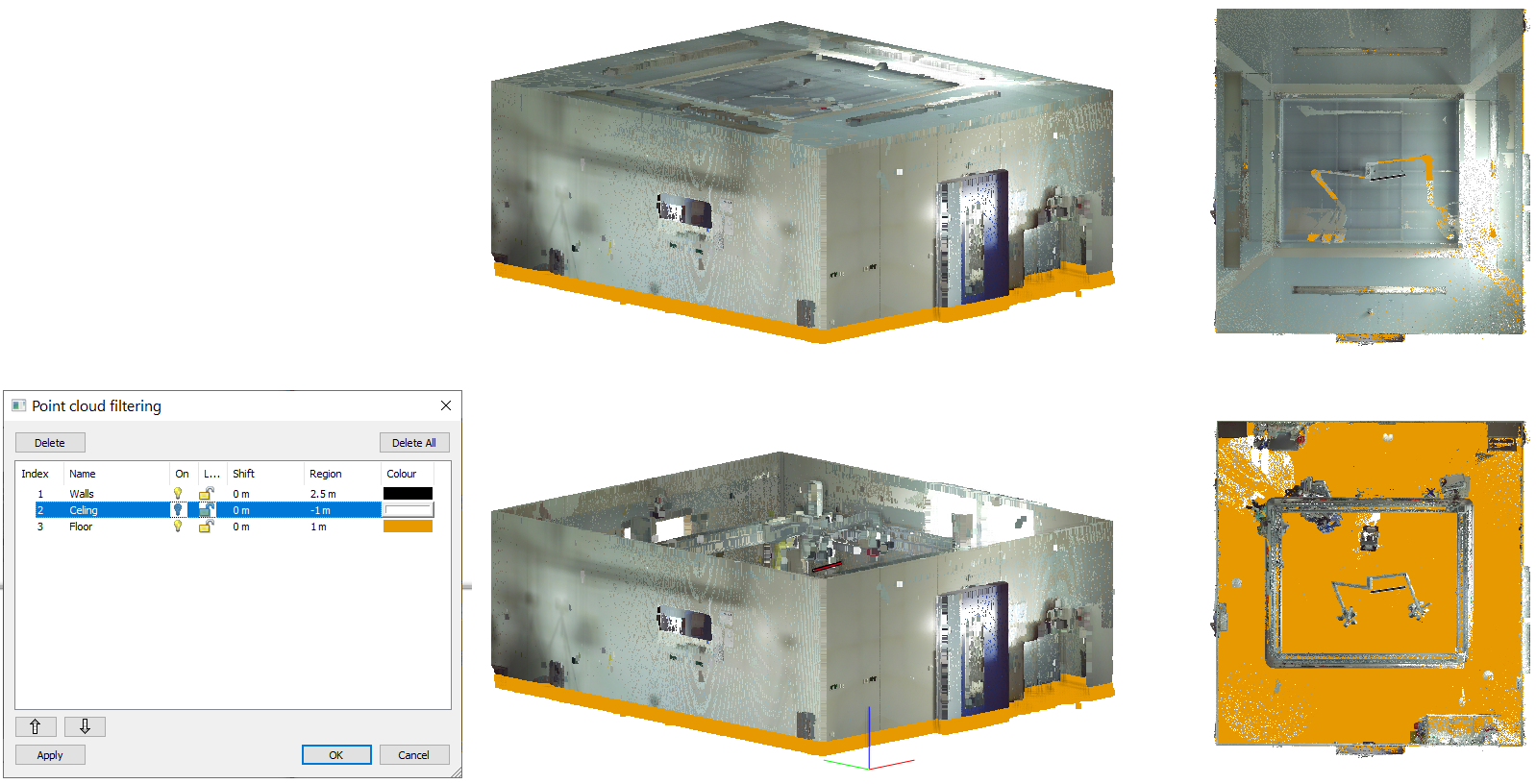

Filtering

Filtering removes or hides unwanted points from the dataset.

Typical filtering methods:

• noise filtering,
• color filtering,
• intensity filtering,
• and visibility filtering.

Filtering improves:

• performance,
• readability,
• and detection accuracy.

Plane Detection

Plane detection identifies flat surfaces within the Point Cloud.

This technology is used for:

• wall recognition,
• slab reconstruction,
• facade analysis,
• and automatic BIM generation.

Reference Geometry

Reference geometry is temporary or auxiliary geometry created from the Point Cloud to assist modeling.

Examples:

• guide lines,
• reference planes,
• traced outlines,
• and snapping references.

Advantages of Point Cloud Workflows

Point Cloud technology provides several important advantages for architectural and BIM workflows.

Accurate Existing Building Documentation

Point Clouds capture real-world conditions with high precision, making them ideal for renovation and reconstruction projects.

Faster BIM Reconstruction

Automatic and semi-automatic detection tools significantly reduce manual modeling time.

Improved Coordination

Point Clouds provide reliable geometric references for:

• architects,
• engineers,
• surveyors,
• and contractors.

Better Decision-Making

Accurate scan data helps identify:

• structural deviations,
• existing conditions,
• construction conflicts,
• and dimensional inconsistencies.

Limitations of Point Clouds

Although Point Clouds provide highly accurate spatial information, they also have limitations.

Large Dataset Sizes

High-resolution scans may contain billions of points and require powerful hardware.

Noise and Incomplete Data

Scans may contain:

• unwanted objects,
• missing regions,
• reflections,
• or alignment errors.

No Native BIM Intelligence

Point Clouds are raw measurement datasets and do not automatically contain:

• walls,
• doors,
• windows,
• or BIM relationships.

These elements must be reconstructed.

Best Practices

Start with Clean Scan Data

Whenever possible:

• remove unnecessary regions,
• optimize scans before import,
• and organize datasets.

Use Slices for Floor Plan Extraction

Slice-based workflows improve:

• wall detection,
• line detection,
• and tracing accuracy.

Combine Automatic and Manual Workflows

Automatic detection accelerates modeling, but manual refinement is usually required for professional BIM quality.

Optimize Large Projects Early

Reducing Point Cloud density and filtering unnecessary regions significantly improves performance.
