Railing is a complex element that includes balusters, panels and bars, handrails and other custom components in different layouts.

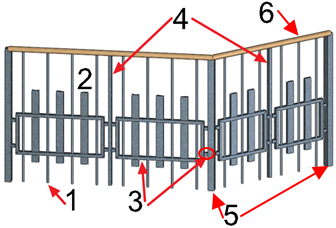

Components:
| Primary balusters | 1 - Primary balusters button |
| Intermediate balusters between primary balusters | 2 - Intermediate balusters button |
| Panels and bars | 3 - Panels and bars button |
| Balusters by big steps between newel posts | 4 - Balusters by big steps |
| Balusters on nodes of railing path | 5 - Newel post at the turn button |
| Handrail | 6 - Handrail settings |
Using the railings tool, you can
1. Add railings as free-standing element
2. Place railing on an existing stair / ramp
3. Create automatically when you create a stair / ramp
Method 1.
Create railing by sketching the railing path
1. Draw the path of the railing
2. Hit Enter twice to create the railing
Method 2.
Create railing on a stair or ramp.
1. Select a stair to host the railing, by clicking on the side you wish to place the railing.
2. The railing will follow the stair path and elevation.
Method 3.
- Create automatically when you create a stair / ramp
1. Activate the Railing automatically added to the left / right side checkbox in the Properties.
2. Create a new stair / ramp. The railing will follow the stair path and elevation.
