Room separation lines (pseudo walls) are useful for splitting one room into two or more separate rooms.
Typical sample is for using Room separation line when there is no boundary wall between living room and the kitchen but necessary to manage them as separate rooms.
After the division, separate rooms are created to which different color displays or finishes can be assigned.
Location: Building - Room and Area - Room separation line (pseudo-wall)
1. Enter the first point of the separation line.
2. Enter the second point of the separation line.
3. Use Room by walls command to place rooms

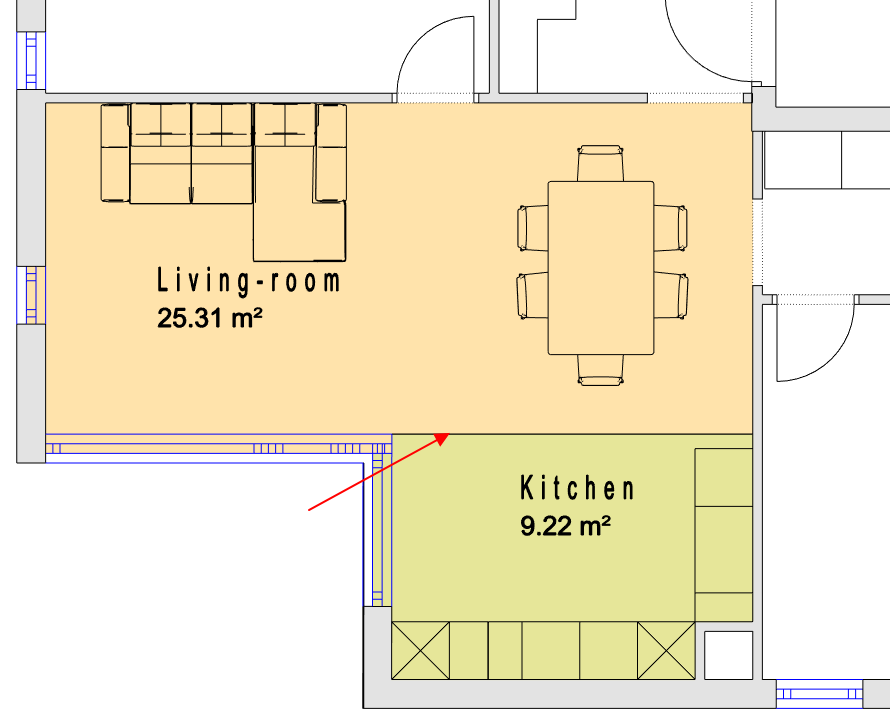

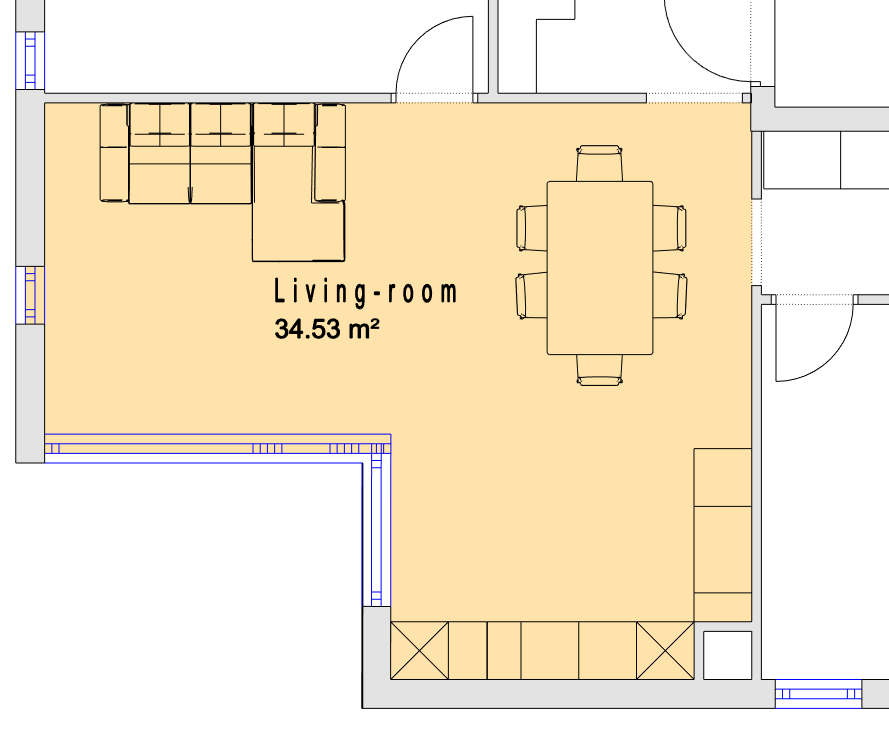

|Before placing the separation line||After placing the separation line|
