Edit stair landing thickness

ARCHLine.XP automatically calculates the default value for the stair landing thickness.

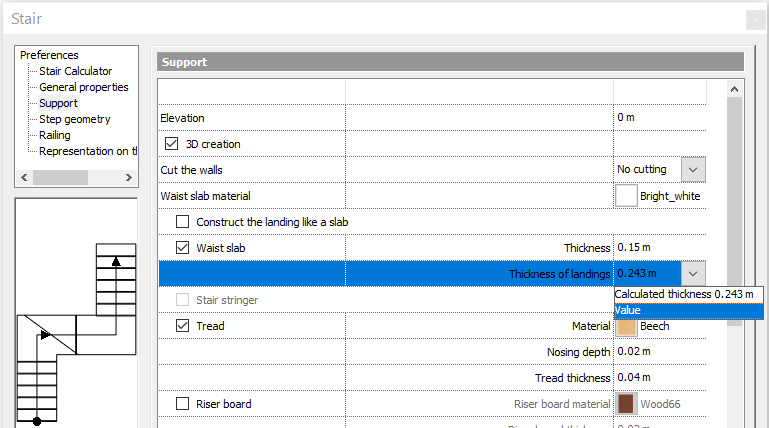

However, it is possible to override the thickness value by specifying a different thickness.

Location: Stair right click - Properties - Support panel

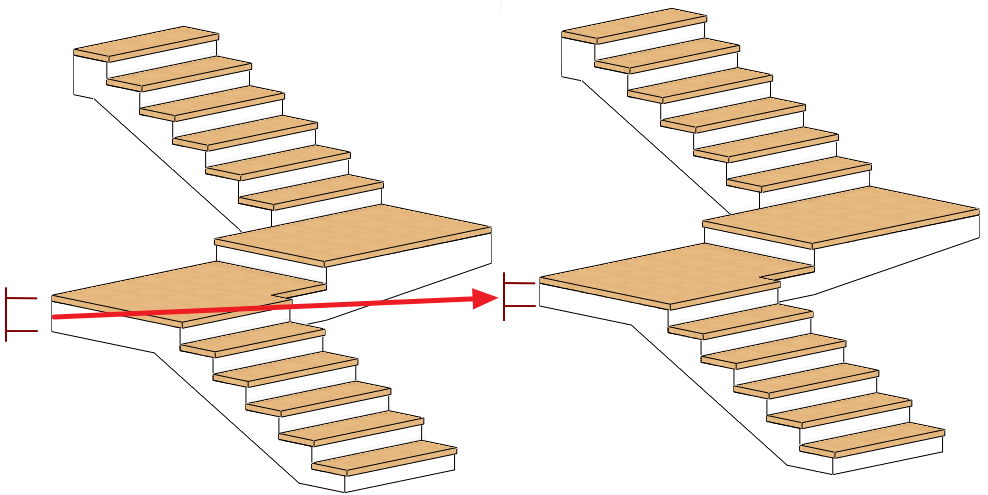

Furthermore, ARCHline allows the geometry of the stair landing to be redesigned into parallel concrete bodies.

Location: Stair right click - Properties - Support panel

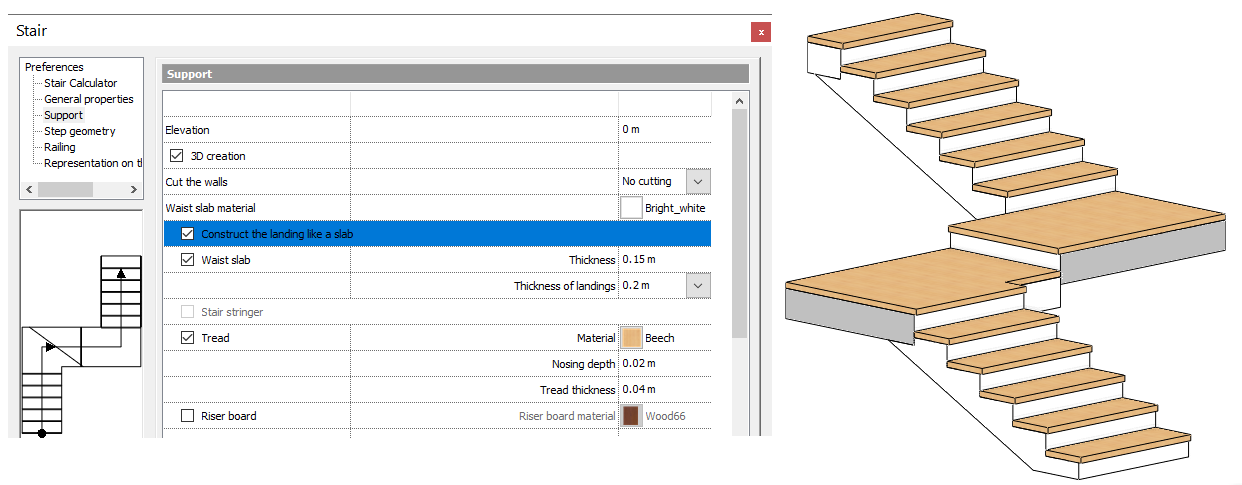

Klicken Sie auf das Kontrollkästchen Podest wie eine Platte konstruieren
