- Interchangeable opening directions in 3D view

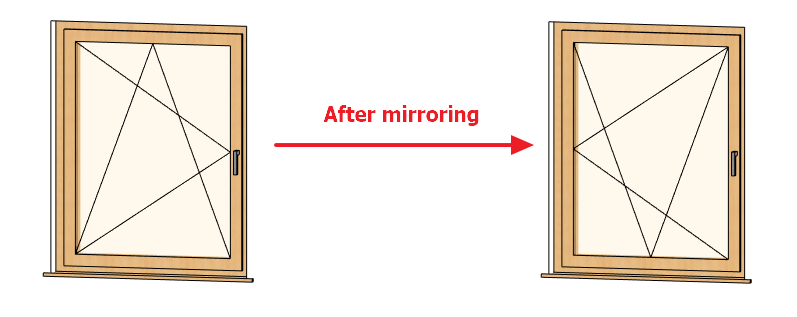

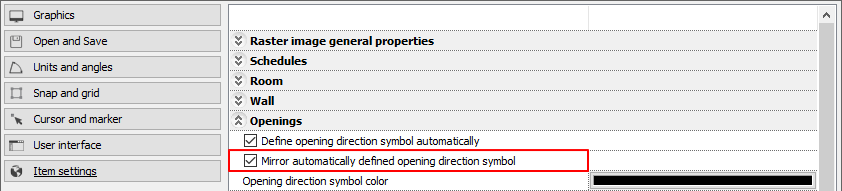

The opening direction symbols in the 3D view can be mirrored with one click.
Location:
Options - Item Settings - Openings - User defined stair standards

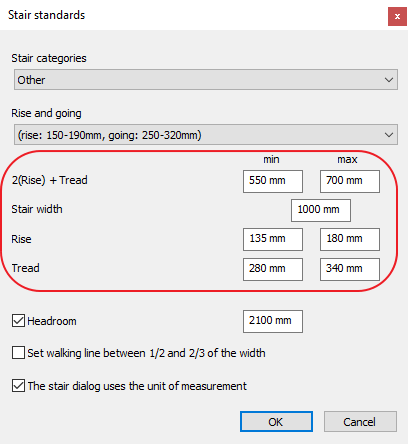

You can change the stair standards based on the Local Athority's preferences, so the calculator will create the perfect stair.
Location:
Settings - Item settings - Stair standards - IFC export improvements
We extended the list of information included in IFC export files. These classifications and BIM parameters can be modified in the element's properties.
Location:

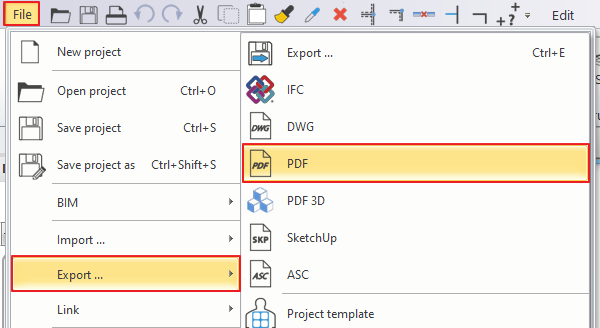

File - Export - IFC - PDF export improvements
This new development guarantees that the PDF files exported from ARCHLine.XP are have the smallest possible size.
Location:
File - Export - PDF - Plot new option: Upside down
On some plotting devices the margin is different from top to bottom and it is not necessary to calculate the left-hand binding margin for every drawing.
Location:
Print - Orientation

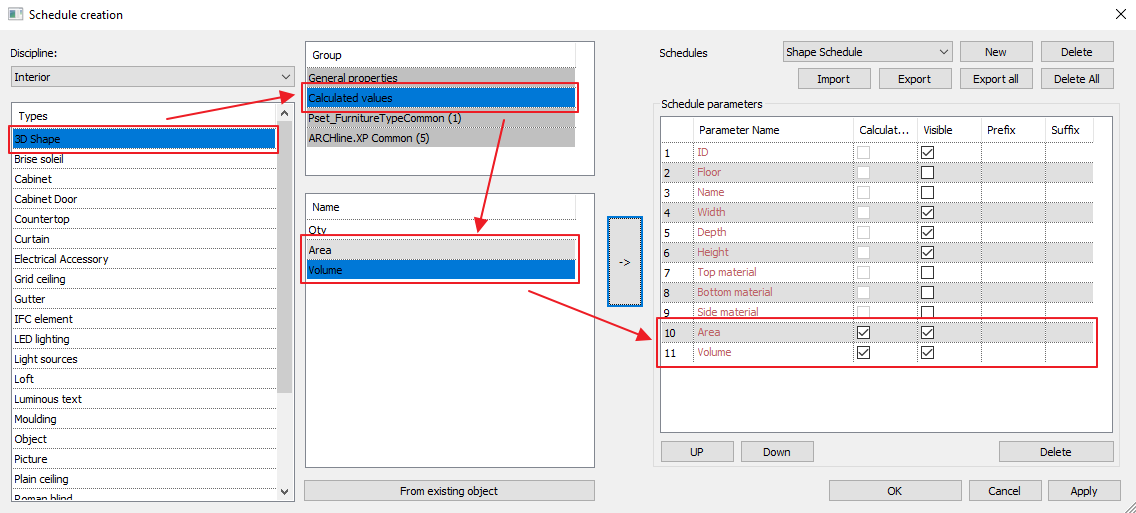

- Extended calculated values for 3D Shapes
You can now export 3D Shape parameters into excel lists and schedules from the BIM parameters.

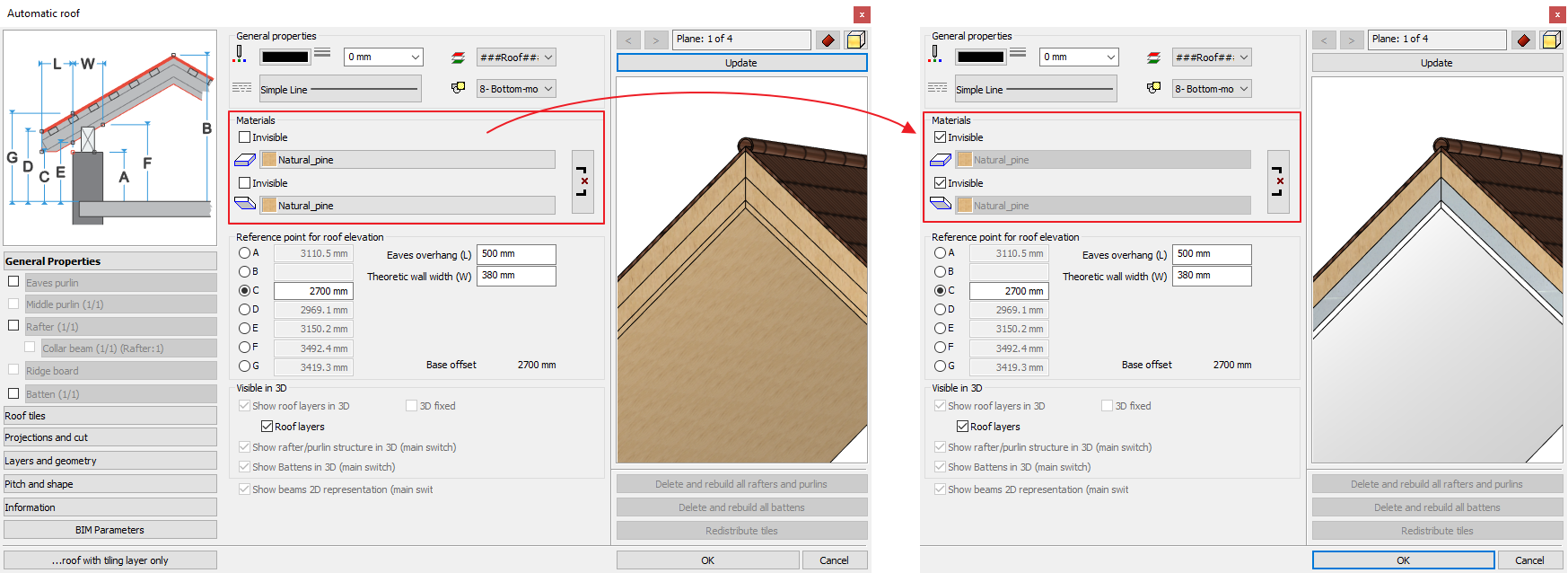

Documentation - Schedule - Define Schedule - Different visible material for roof layers
You can now overwrite the material display settings of roof layers.
Location:
Building - Roof - General Properties - Materials - XREF Point Clouds
You don't have to import large Point Cloud files into the project, you can link them to the project. This way the project size remains relatively small, while the functionality is the same.
Location:

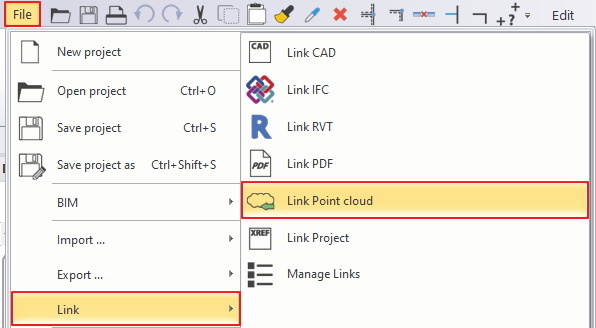

File - Link - Link Point cloud - Arched beams

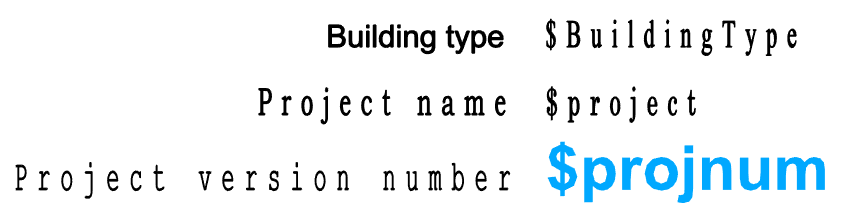

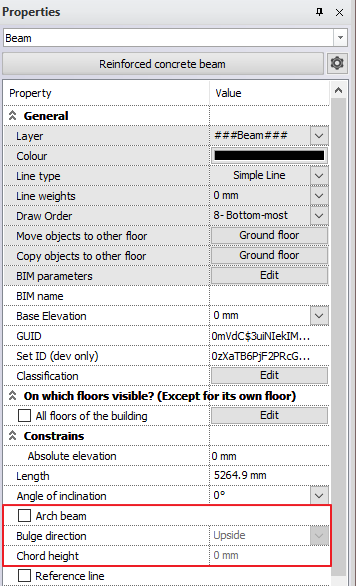

You can now activate the Arch beam command from the Property Grid and set its values without having to enter its properties dialog. - Variable texts with their own styles
When placing variable texts in ARCHLine.XP, you have the option to select the text style individually for each element.
Location:
Documentation - Plot layout - Create plot stamp - Variables - Move slab beam symbol

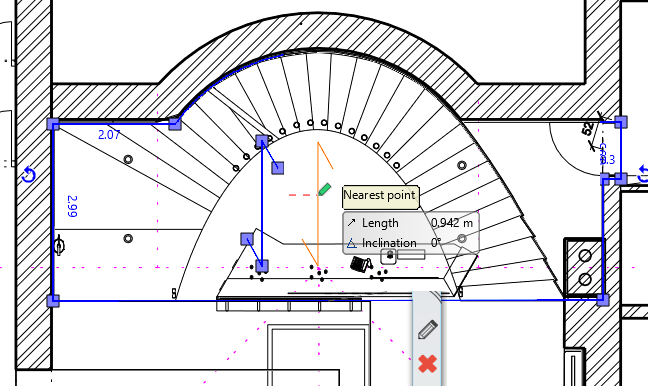

The main direction is indicated by a two-way arrow in the center of the slab. The drawing may become more readable by moving the arrow.

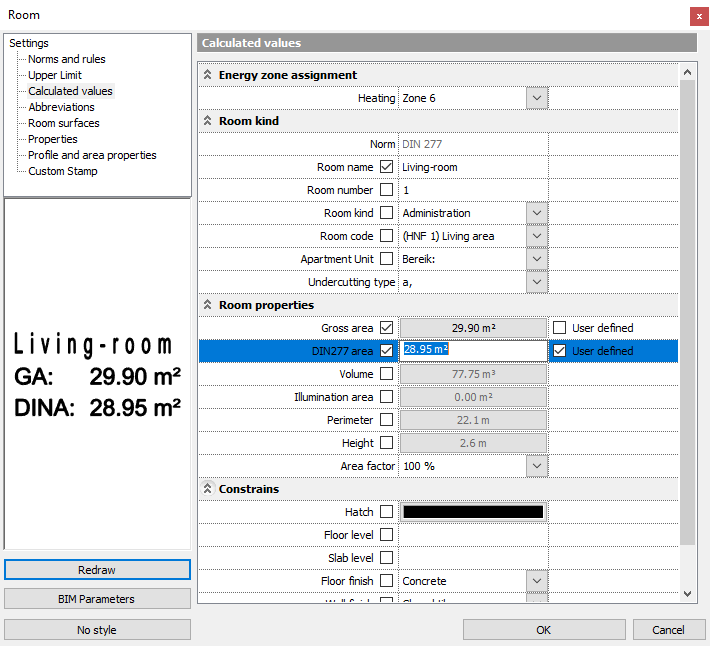

Click on Slab beam symbol and relocate - User defined roombook net and gross area values
You can use the calculated values created by ARCHLine.XP or you can set any value manually.

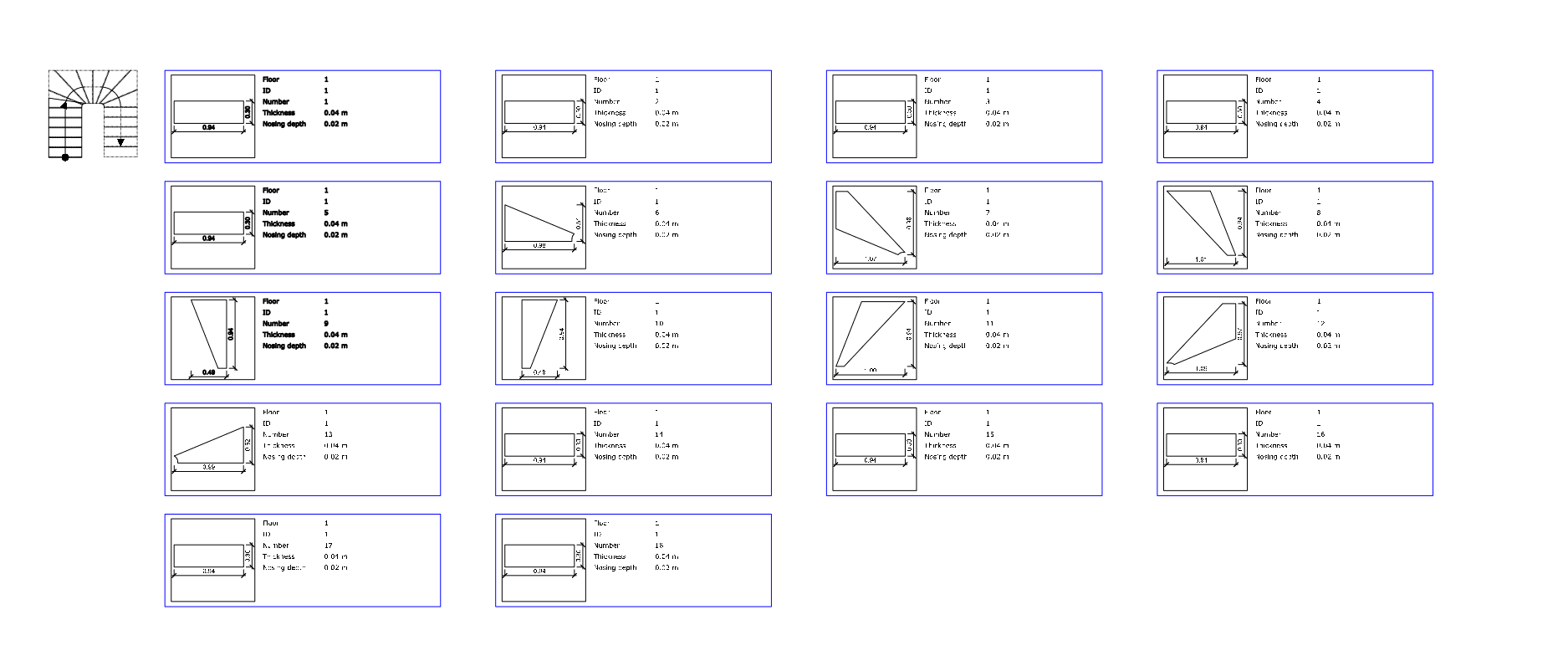

Building - Room and area - Calculated values - Graphic list of stair steps
Stair steps cut list can be an aid in part layout, confirming key dimensions, and estimating sizing needs.
Location:
Documentation - Quantity Take-Off - Stair treads list
