Multiple copying new options

The performance of multiple copying has been enhanced with the following options.

ARCHLine.XP supports multiple copying of selected items in several ways.

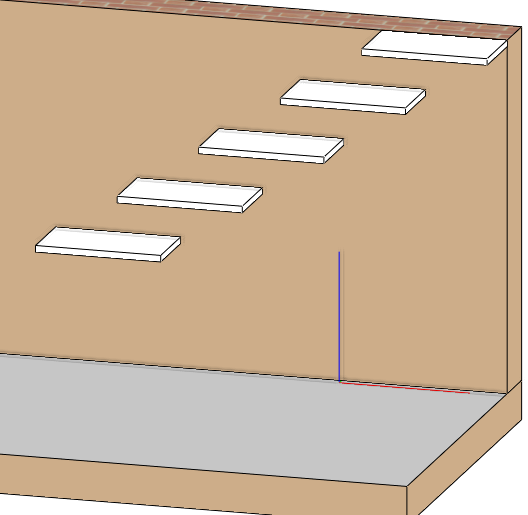

Copy multiple time the selected elements along one axis (lock to X,Y or Z)

1. Select objects and click to X,Y or Z axis marker. For vertical copies choose z-axis.

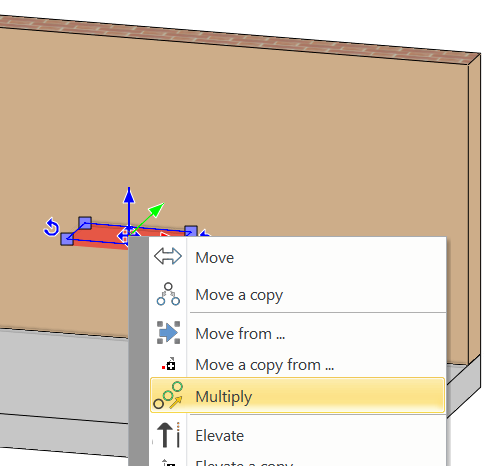

2. Choose the command Multiply

3. Specify the number of copies

4. Specfy start point

5. Specify endpoint

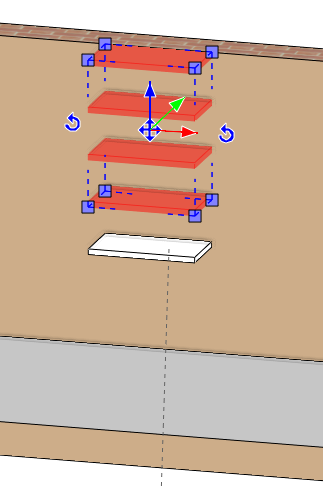

Copy selected elements multiple times in any 3D direction

1. Select objects and click to anchor marker.

2. Choose the command Multiply

3. Specify the number of copies

4. Specfy start point

5. Specify endpoint

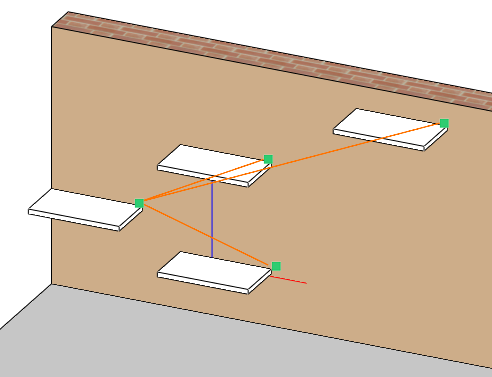

Copy the selected elements on different target points

1. Select objects and click to anchor marker.

2. Choose the command Move a copy from ...

3. Specfy start point

5. Specify target points in a cycle

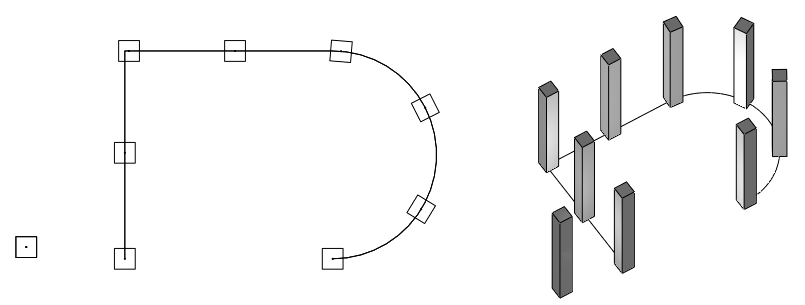

Duplicate the selected elements along a path

The command places several copies of an element or elements along an existing path.

1. Select objects and click to anchor marker.

2. Choose the command Multiply along a Path

3. Specfy start point

4. Choose the path

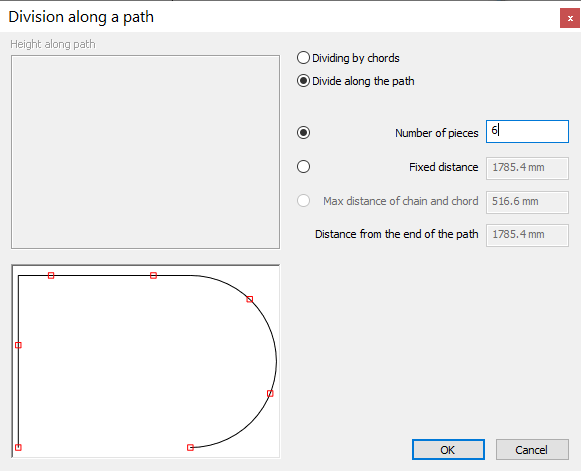

5. Enter the number of copies or a specific distance in the dialog that appears
