Enhanced architectural grid

Grids are used for marking the alignment for the structural elements (structural columns and walls) in a building design.

Grids consist of a Gridline and a Grid symbol. The location of the grid symbols can be customized.

You can relocate the Grid symbol of the grid line beyond the grid and you can change the label content.

Manually changing the grid can be useful for example when you are adding non-regular grid lines.

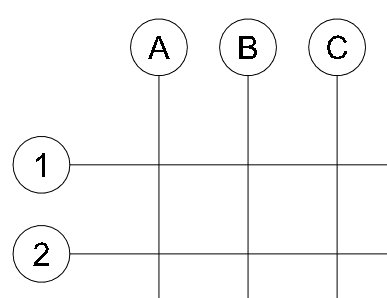

	Default grid

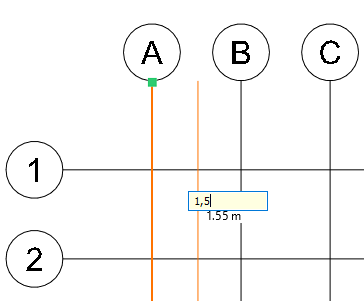

	Offset a Copy with 1.5 m.
	New grid line is created.

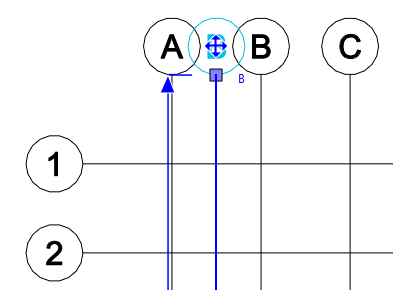

	Click on anchor to move grid symbol.

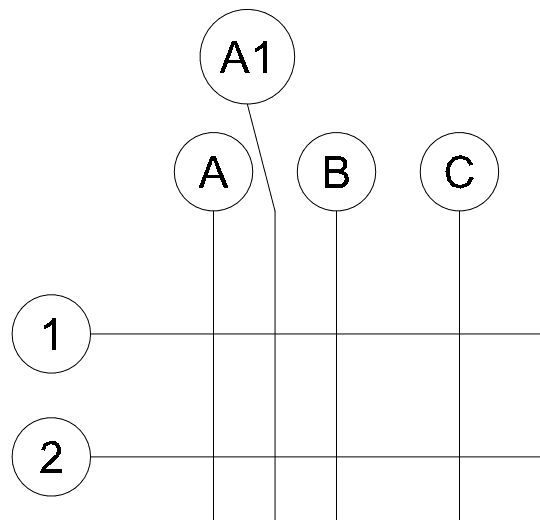

	Relocated grid line extension.

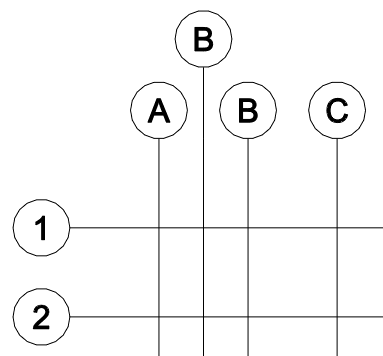

	Select grid line to edit label text. Enter the value for the label then press ENTER.
	Label text editing is ready.

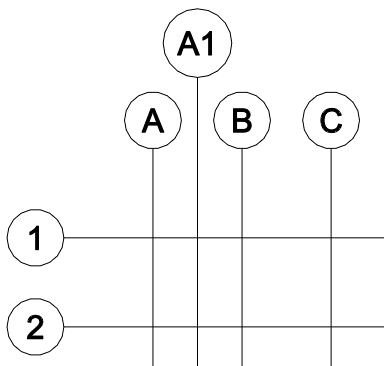

	Relocate grid line extension to the right place.
