Interface Room Maker

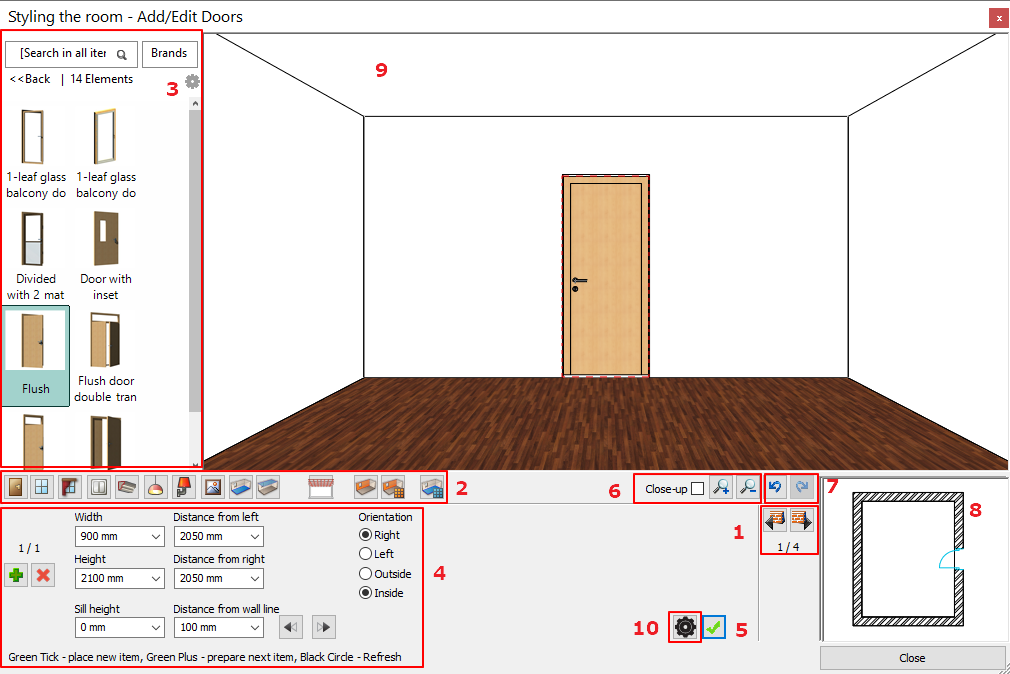

The interface of ARCHLine.XP Room Maker is built up of the following main parts and controllers:

1. Wall pager
2. Toolbar
3. Type finder
4. Properties
5. Insert New (Create)
6. Zooming
7. Undo / Redo
8. Floor plan
9. 3D view
10. Item detailed properties

Main control buttons
1. Wall pager
You can scroll through the walls of the displayed room using the Wall tab. The Room Maker tools will be applied to the currently selected wall.

2, Toolbar
The Room Maker toolbar contains all the interior design tools you can use to work in the Room Maker. One of them is always active, and you can create a new one from the selected item, modify or delete an existing one.

For example, to specify doors on a wall, select the door icon on the toolbar.

3. Type finder
Use the type finder to see the most recently used types.

The icon that appears on the Type Finder button always matches the current device. For example, when working with doors, a door icon also appears in the Type Finder. Use this list to access and search directories of different items or materials.

4. Properties
Use the values ​​specified in the Properties to specify the properties of the item that you want to create. You can also change the properties you want to change on a previously placed item.

5. Insert New (Create)
Use the Green tick (Create) to insert a new item.

6. Zooming
You can zoom in or out on the current 3D preview. To focus the selected item, use the Center switch and it will be centered on the camera.

7. Undo/Redo
Use the Back button to undo the last step that appears in the drawing. Use the Forward button to undo the result of the last undo that appears in the drawing. You can only go back and forth for up to 16 operations.

8. 2D view
The 2D preview displays the currently selected item on the floor plan.

9. 3D view
The 3D preview shows the model, always focusing on the selected wall, floor, or ceiling.

10. Item detailed properties

The Properties panel for the selected item appears. You can change all the properties for that item.

Additional control buttons

Create new
The “Create New” button can be used in cases where the current type is already on the current wall and it is possible to place it again. In this case, the button appears on the left side of the dialog box.

Delete an object
The “Delete Object” button appears when the current type is already on the current wall and there is a way to delete it. In this case, the button appears on the left side of the dialog box.

Element index
The Item Index is located directly above the Create New / Delete Object button on the left side of the dialog. It has two values ​​separated by a "/". The first number is the serial number of the current item, while the second number is the number of items of the same type available on the current wall. Use the blue arrows above the index to scroll through each item.

Internet search engine
With the Internet button, you can go to our online showroom (Showroom) or to the part of our website (Internet search engine) that contains useful contacts for other online materials (images, samples, objects). After selecting Showroom or Internet Search, the default web browser will open and you can easily download a new sample of the available content.

Modify
In cases where it is possible to modify the selected item in the Favorites list, the Modify button becomes available.
