Switches and sockets - Location relative to the wall

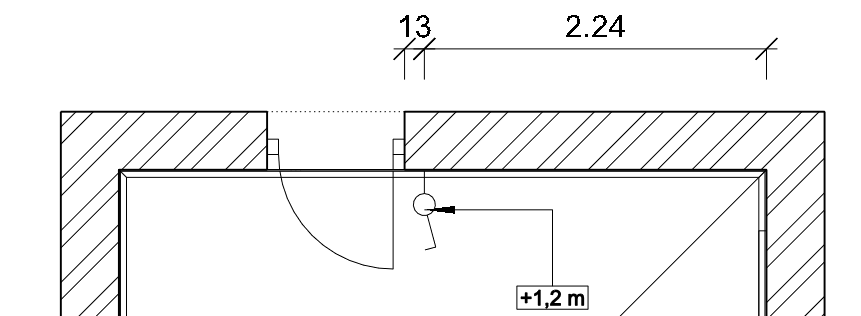

Use this command to place dimensions on the floor plan that show the distances of the electrical fittings on the wall from the wall corners and door/window connection points. The function is available from the Interior menu - Electrical accessory - Switches or sockets location relative to the wall or from the Side menu - Interior - Electrical accessory - Switches or sockets location relative to the wall.

- To execute this command, click on the side of the wall where the electrical accessory wiring is located and then use the mouse to define the position of the resulting scaling chain.
