Common instance properties for doors/windows are described below.
|The thickness of the door / window
|The height of the door / window
|The width of the door / window
|Hide opening and make a void
Specific feature that makes dealing with void instead of door / window solids.
|Distance from wall line
|The distance between the frame of the door / window and the wall reference line.
|Specifies the height of the sill in relation to the level
|Outer sill Height
|You can define the interior and exterior sill height separately relative to the finished floor level or the external slab level.
|Add level shift
|Assign door / window height to the split level, where the split level is located between two levels of the building.
|Effective clear width
|The width of the opening measured at perpendicular angle to the wall in which the door is situated.
|Effective clear height
|The opening distance created between the door / window frames when the door/window leaf is fully open.
|Placement on wall with middle point or left / right side.Press F5 during placement to modify.
Distance from wall corner
|Editable field during modification.
|Area in which the light passes through in percentage
|Area that is possible to open in percentage
Lining and architrave
You can assign frame to the inside or the outside of the doors or windows, and specify cross section. You have to specify separately the inside and the outside properties of the frame
You can assign full frame or open frame down.
The cross section can be rectangular or profile selected from the library.
You can put covering between the frame and reveal, and you can assign thickness and material to it.
If you don’t assign any material to the frame or covering, then it copies its material from the wall.

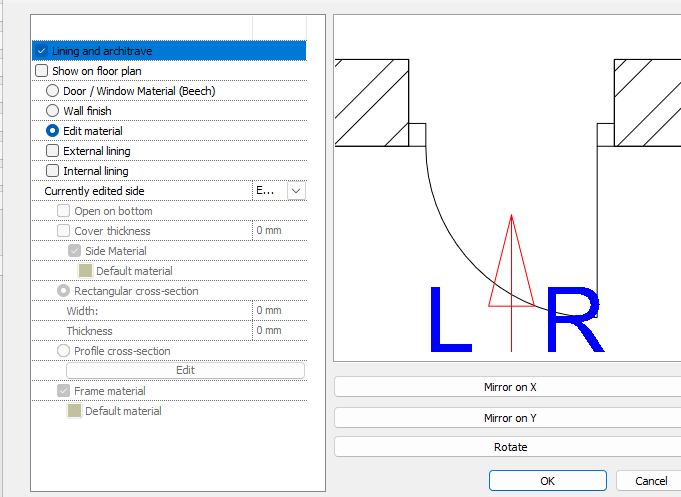

Click on the Door / Window Properties - Lining and architrave button¬ to define the frame properties..
Changing the position of the cross section
• After clicking on the door / window on the floor plan the profile of the assigned frame is displayed.
• You can mirror or rotate the profile by clicking on the profile and choosing Mirroring or Rotate keywords in the command line.
• Enter finishes the command.
The advantage of the method is (contrary to changing Insert profile window in the Property window) the result of the changing is viewable on the floor plan as compared to the door or window, so it is evident.
Lining and architrave parameters
The architrave is a decorated or moulded band that is used in framing an opening.
|Lining and architrave - Main switch
|Turns it off or on
|Show on the floor plan
|Make it visible on fllor plan
|Materials and Finishes
|Door / Window material
Apply the same material as it is for the host opening.
|Apply the same material as it is for the host wall side.
You can specify freely the material.You can select a value from the material list.
|External Lining - Main switch
|Turns External Lining off or on
|Internal Lining - Main switch
|Turns Internal Lining off or on.
|Currently edited side
|Selects the side (external / internal) to which the properties below apply
|Open on bottom
|Full frame or open frame down.
Rectangular cross section
|Width of the rectangular shape
|Thickness of the rectangular shape
Profile cross section
|Select the profile to use instead of rectangular shape
|The material for the frame.

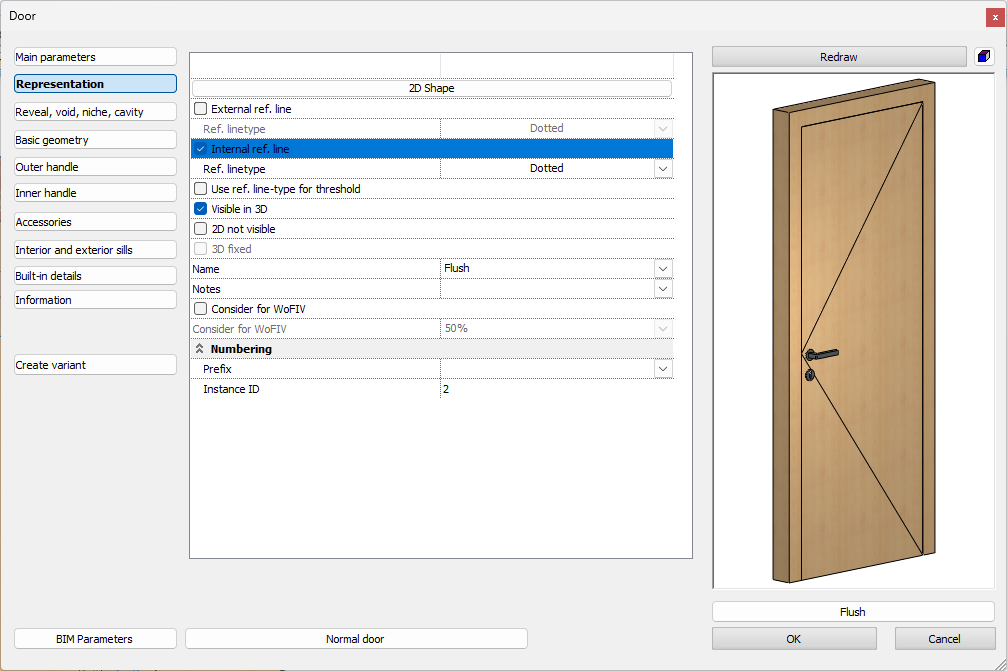

Lines in floor plan drawings with dots and/or dashes indicates something that is unseen.
|External reference line
|Turns External reference line off or visible.
|Internal reference line
|Turns Internal reference line off or visible.
|Use ref. line-type for threshold
|Apply the given line type to display threshold
|Visible in 3D
|Turns door / window visible in 3D views.
|2D not visible
|Turns door / window floor plan symbol off or visible.
|With this command you can lock 3D models to architectural objects independent of the 2D symbol.
Once you lock an architectural object, you may make any modification in the 2D drawing; its 3D view will not be altered.
|Consider for Wofiv
|Turns on with 50% or 100% or off for Wofiv room calculation if a door/window niche has to be considered.
This property identifies identical instances by a number (instance ID).
The first door or window you place in a project defaults to a value of 1.
|The program assigns a number increased by 1 to different instances of doors or windows.
