A Szöveg eszköz parancsaival feliratokat hozhat létre a meghatározott helyen, az aktuális szöveg tulajdonságokat használva. A szöveg többsoros is lehet - begépelheti, vagy a Windows vágólapról illesztheti be. A szövegek elhelyezése előtt állítsa be a szöveg globális tulajdonságait.

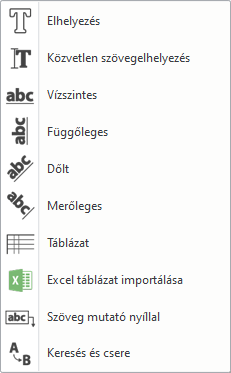

A parancs helye: Rajz > Szöveg
Általános tulajdonságok
|
Paraméter |
Leirás |
|
Szín |
Válassza ki a elem színét. |
| Vonalvastagság | A Vonalvastagság tulajdonság lehetőséget biztosít különböző vastagságok megjelenítésére. Az elemek vastagsága a nézet léptékétől függetlenül állandó marad. A Nyomtatás panelen a vonalvastagságok valós mértékegységben jelennek meg és nyomtatódnak ki. |
| Fólia | Válassza ki azt a fóliát, amelyre az elem kerül. |
| Prioritás | Válassza ki az elemábrázolási prioritását. Minél magasabb az érték, annál alacsonyabb szinten jelenik meg az elem, ha több objektum átfedésben van. (8 - legalul, 1- legfelül) |
Constrains:
| Font | You can select the Windows True Type fonts |
| Font size | |
| Fixec plot size | |
| Alignment |
By this command you can specify the current justification in the case of a multiline text. Left alignment |
| Mirrored |
Allows you to mirror text OFF - Inserts a legible text |
| Bold | YSpecify the style (Regular, Italic, Bold, Italic, Underline, Strikeout) |
| Italic | Specify the style (Regular, Italic, Bold, Italic, Underline, Strikeout) |
| Underline | Specify the style (Regular, Italic, Bold, Italic, Underline, Strikeout) |
| Strikeout | By activating the Strikeout option, the text will be stroked out |
| Character width [ % of size ] |
This setting defines character width relative to character height (percentage). Default value is 0. By setting extreme values for this property, you can create very wide or very narrow characters. |
| Character spacing [ % of size ] |
you can specify the spacing between characters. Default value is 0. The setting defines spacing value relative to character height (percentage). |
| Line spacing [ % of size ] | you can set the distance between the rows. The value of line spacing is interpreted relative to character height (percentage). |
| Text direction | You can set the current text direction. If you set 0, the text will be horizontal, while a value of 90 results in a vertical text. |
| Inclination | The Inclination property sets the orientation of the text characters in a line. |
| Origin |
This command defines the origin of the text. If, for example, you choose the bottom-left option, the text will be inserted at the selected point by its bottom-left corner. |
| Bounding | The distance between bounding box and the text can be specified as a per cent value relative to the character height |
| Bounding margin | The distance between bounding box and the text can be specified as a per cent value relative to the character height |
