RTF lista

Konszignálás saját dokumentum-sablonokkal

A parancs az ARCHLine.XP XML kimeneti adatait társítja egy RTF formátumú sablonhoz.
Segítségével saját elrendezésű anyagkimutatások lehet létrehozni. A sablonokat a Microsoft Word használatával lehet elkészíteni.

A parancs helye: Dokumentáció > Lista > RTF lista

Az RTF sablon létrehozása azt jelenti, hogy MergeField mezőkódot rendel az RTF dokumentumhoz.
A MergeField megjeleníti az adatmező nevét a "chevron" egyesítési karakterekben - például: «BuildingName».

A testreszabott sablonkiosztás tervezésekor az ARCHLine.XP XML kimeneti adatokat
kell hozzárendelni az RTF MergeField mezőkódokhoz.

https://support.office.com/en-us/article/field-codes-mergefield-field-7a6d24a1-68a6-4b05-8359-1dc087daf4e6?ui=en-US&rs=en-US&ad=US

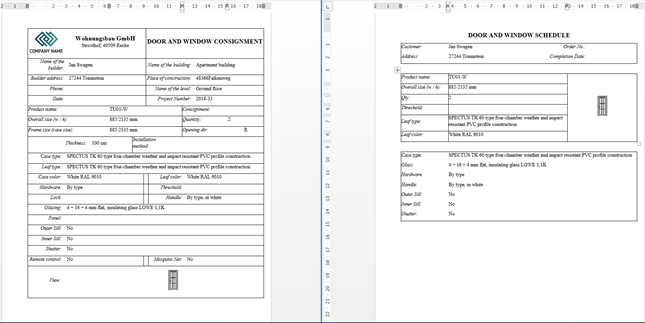

Példa a sablonra:

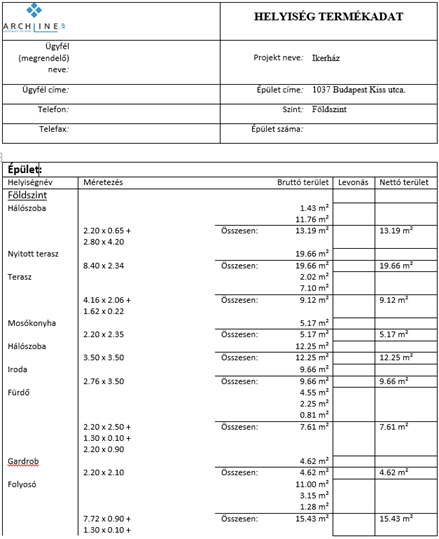

Example for output reports:

Projekt tulajdonságai:
Date
BeginDate
EndDate
Status
BuildingType
BuildingName

ProjectNumber

GrossArea
Area_available_for_Building
Maximum_height_of_the_Building

Region
Country
Town
Location
Location.Name
Location.Description
Location.Longitude
Location.Latitude
Location.Elevation
Location.ZipcodeOrPostalCode
Office_area
Height_above_the_sea

ArchitectName
ArchitectCompanyName
ArchitectAddress

OrganizationName
ClientName
ClientAddress

Gerenda tulajdonságai:

StyleName;
Elevation;
Volume;
Name;
RealLength;
EndType;
isRoofBeam;
Length;
HasInsulation;
InsulationThickness;
InsulationMaterial;

Ajtó / ablak tulajdonságai:
StyleName;
OpeningFromRight;
DistanceFromWallEndPt;
Height;
ParapetHeight;
FrameWidth;
FrameThick;
FrameDistance;
FrameDistance_fromOppositeSide;
Niche;
ExtSill;
IntSill;
ExtSillHeight;
IntSillHeight;
ExtSillWidth;
IntSillWidth;
PositionFromEnd;
PositionByAxis;
ExtIntDiff;
Area;
Compass;
Name;
ReferenceName;

VisibleName;
ExtMaterial;
IntMaterial;
InnerMaterial;
MacroName;
Remark;
isShoulderOnTop;
isShoulderAround;
isRoofWindow;
ConsiderForWofivFactor;
ConsiderForWofiv;
OpeningDir;
OpeningDirection;
BubbleNum;
uValue;
FrameStructureKind;
FrameStructureID;
GlassStructureID;
PanelStructureID;
SunShadeAndDivider;
FrameWidth_Left;
FrameWidth_Right;
FrameWidth_Top;
FrameWidth_Bottom;
Effective_clear_width;
LintelName;
LintelIdentifier;
FrameName;
Outer_SillName;
Inner_SillName;
ShutterName;
LeafName;
ThresholdName;
HardwareName;
Remote_control;
Mosquito_net;
Accessories;
Covering;
Glazing;
Opening_handle;
Leaf_color;
Case_color;
Material_of_receiving_structure;
Installation_method;
Production_size;
Picture1; //Frontal View

Numbering;

Fal tulajdonságai:

StyleName;
avHeight;
avWidth;
BaseArea;
Direction;
Height;
Length1;
Length2;
Material1;
Material2;
TotalWidth;
Volume;
WallType; //New, Existing, Demolished
InclAngle;
Compass;
Exterior_wall;
GrossSideArea1;
GrossSideArea2;
NetSideArea1;
NetSideArea2;
strIFCName;

Picture1; //Frontal View

Lépcső  tulajdonságok:

StyleName;
bLevel;
tLevel;
sHeight;
sWidth;
wlDist;
Nosing;
CoverThick;
StepThick;
WaistSlab;
SuppThickR;
SuppThickL;
SuppWidthR;
SuppWidthL;
SlabThickB;
SlabThickU;
Volume;
Ergonomy;
SumArea;
Material;
BodyMaterial;
SupportMaterial;
TypeName;
WofivRule;
Inclination;

Födém tulajdonságok:

StyleName;
Name;
WallCutting;
CutByRoofs;
Elevation;
Thickness;
AverageHeight;
Volume;
GrossVolume;
BottomArea;
TopArea;
TopMaterial;
BottomMaterial;
SideMaterial;
IsSlanted;
SlantAngle;

Helyiség tulajdonságok:

StyleName;
SideArea;
ParquetArea;
CeilingArea;
PedestalArea;
PedestalLength;
OpeningsArea;
Area;
IlluminationArea;
OfficialArea;
OfficialVol;
NetWallArea;
WoFlArea;
Ventillation_area;
Perimeter;
RoomHeight;
AreaUnder100;
AreaAbove100;
AreaUnder150;
AreaAbove150;
VolumeUnder150;
VolumeAbove150;
GrossVolume;
DINArea;
Ratio100_200;
RatioAbove200;
AreaAbove190;
AreaAbove275;
AreaFaktor;
DinNorm;
HatchColor;
VolumeSolidCol;
CreationMethod;
NeedHatch;
RoomNumber;
Flags;
UnderCuttingType;
RoomKind;
FlatName;
Zone_names;
RoomName;
NettoRaumInhalt;
OfficialAreaStr;
IllAreaStr;
PerimeterStr;
RoomHeightStr;
RoomNumberStr;
ParquettLevelStr;
SlabLevelStr;
FloorMaterial;
WallMaterial;
CeilingMaterial;
RoomTypeName;
RoomSet;
DINAreaStr;
WoFlAreaStr;
Ventillation_areaStr;
NormIAreaStr;
VolumeStr;
VentilRatioStr;
RatioStr;
BottomSlabThickness;
ZoneZBase;
ZoneBaseHeight;
ZoneVolume;
IsInBasement;
SpaceExtruded; //IFC
ProofFormulaCalculation;
ProofFormulaValues;
