Karfa hozzáadásához a korláthoz kattintson a Karfa gomb előtti jelölőnégyzetre, majd kattintson a gombra. Itt határozhatja meg a karfákat.

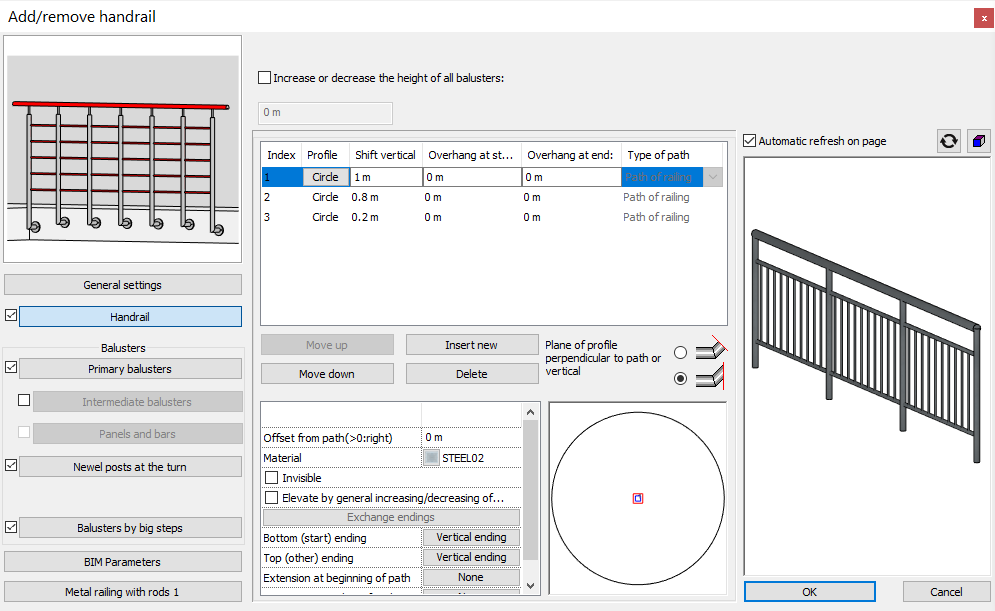

The handrails are listed in a table. Each row in the table represents a handrail. In the table rows you can set the following properties:

Index	Row (handrail) number
Profile	Section profile of the handrail
Shift vertical	This is the vertical distance between the bottom of the handrail and the path of Railing
Overhang at start	The overhang of handrail at the beginning of the path of railing.
Overhang at end	The overhang of handrail at the end of the path of railing.
Type of path	Describes the path of the handrail. For example a handrail can go along the path of the Railing or it can follow an individual path from layout.

- To change the order of handrails in the table, use the Move up or Move down buttons.

- Click Delete to delete a row (handrail).

- Click Insert new to add a row (handrail).

- To change the cross section of the handrail, click the button in the Profile column. In the Insert profile dialog you can choose the new profile.

Handrail properties :

Plane of profile perpendicular to path	You can select whether the section profile of the handrail should be vertical or perpendicular to the path of railing.
Offset from path (>0: right)	Horizontal offset relative to the path of railing.
Material	Material of the handrail.
Invisible	This option makes the handrail invisible.
Elevate by general increasing/decreasing of height	Defines the application of the Increase or decrease the height of all balusters to the handrail.
Exchange ending	Exchange the settings of bottom (start) ending and top (other) ending
Bottom (start) ending	You can set the ending of the start of the handrail by clicking the ellipsis button. The Beam ending dialog appears where you can set the appropriate ending
Top (other) ending:	You can set the ending of the start of the other end of the handrail by clicking the ellipsis button. The Beam ending dialog appears where you can set the appropriate ending.

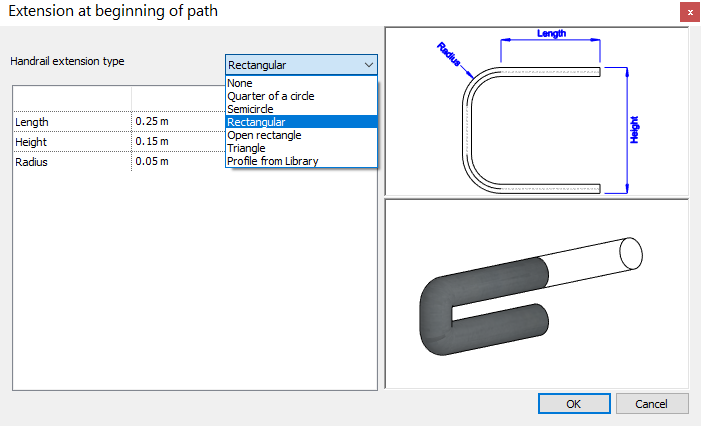

Extension at beginning of path, Extension at ending of path	See the figure below
